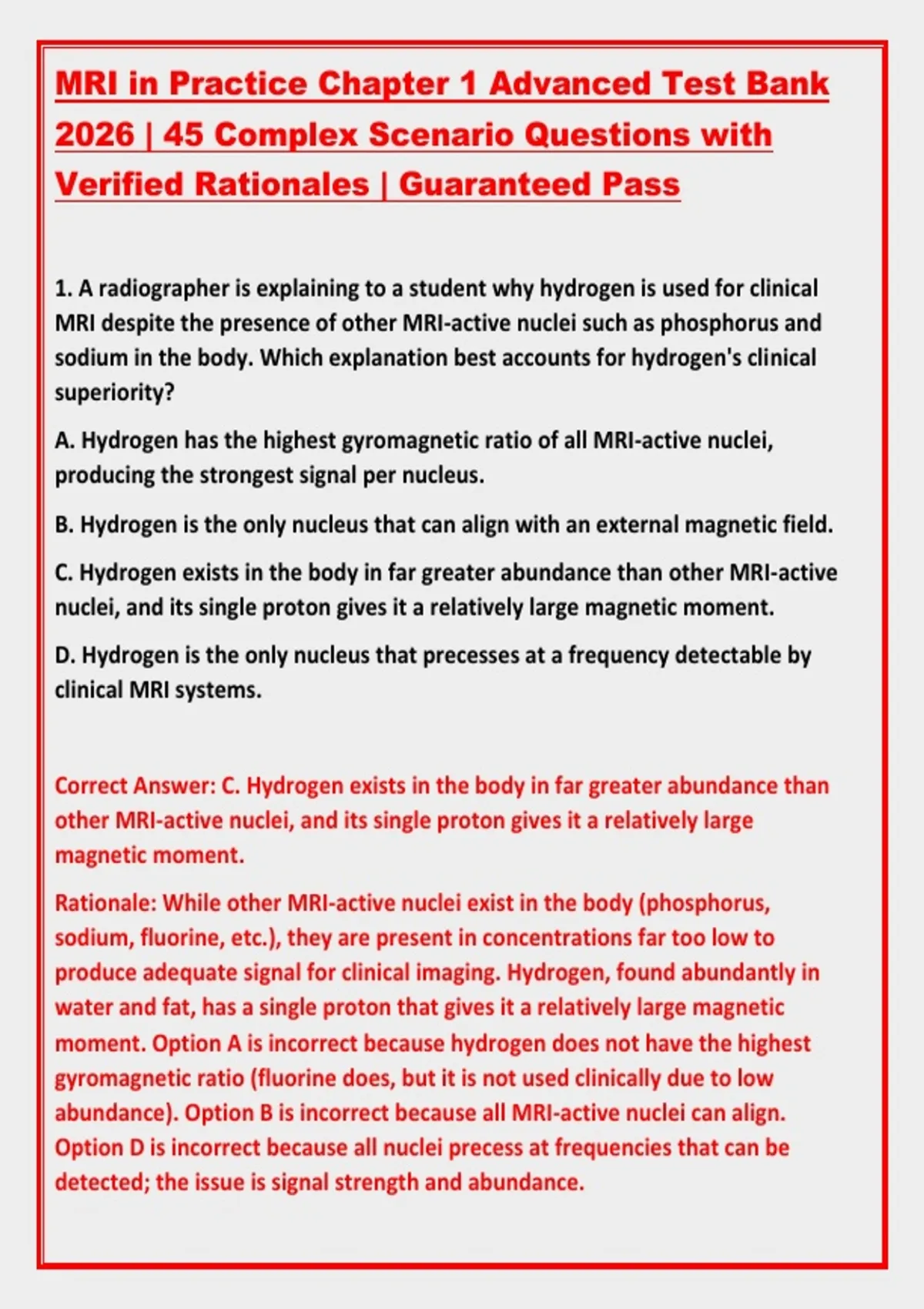

MRI in Practice Chapter 1 Advanced Test Bank
2026 | 45 Complex Scenario Questions with
Verified Rationales | Guaranteed Pass
1. A radiographer is explaining to a student why hydrogen is used for clinical
MRI despite the presence of other MRI-active nuclei such as phosphorus and
sodium in the body. Which explanation best accounts for hydrogen's clinical
superiority?
A. Hydrogen has the highest gyromagnetic ratio of all MRI-active nuclei,
producing the strongest signal per nucleus.
B. Hydrogen is the only nucleus that can align with an external magnetic field.
C. Hydrogen exists in the body in far greater abundance than other MRI-active
nuclei, and its single proton gives it a relatively large magnetic moment.
D. Hydrogen is the only nucleus that precesses at a frequency detectable by
clinical MRI systems.
Correct Answer: C. Hydrogen exists in the body in far greater abundance than
other MRI-active nuclei, and its single proton gives it a relatively large
magnetic moment.
Rationale: While other MRI-active nuclei exist in the body (phosphorus,
sodium, fluorine, etc.), they are present in concentrations far too low to
produce adequate signal for clinical imaging. Hydrogen, found abundantly in
water and fat, has a single proton that gives it a relatively large magnetic
moment. Option A is incorrect because hydrogen does not have the highest
gyromagnetic ratio (fluorine does, but it is not used clinically due to low
abundance). Option B is incorrect because all MRI-active nuclei can align.
Option D is incorrect because all nuclei precess at frequencies that can be
detected; the issue is signal strength and abundance.
,2. A patient is placed in a 3.0 Tesla scanner. The technologist explains that the
net magnetization vector (NMV) will be larger at 3.0 T than at 1.5 T. Which
principle best explains this phenomenon?
A. The gyromagnetic ratio increases at higher field strengths, producing a
larger NMV.
B. At higher field strengths, fewer high-energy nuclei have enough energy to
oppose B0, so a greater excess of spin-up nuclei exists, producing a larger
NMV.
C. The patient's body temperature decreases at higher field strengths, causing
more nuclei to align parallel.
D. The Larmor frequency decreases at higher field strengths, allowing more
nuclei to align.
Correct Answer: B. At higher field strengths, fewer high-energy nuclei have
enough energy to oppose B0, so a greater excess of spin-up nuclei exists,
producing a larger NMV.
Rationale: The distribution of spin-up and spin-down nuclei is determined by
the strength of B0. At higher field strengths, the energy gap between the two
states is larger, so fewer nuclei have sufficient thermal energy to occupy the
high-energy (anti-parallel) state. This results in a greater excess of spin-up
nuclei and a larger NMV, producing improved signal. Option A is incorrect
because the gyromagnetic ratio is a constant for each nucleus and does not
change with field strength. Option C is incorrect because body temperature
does not significantly change with field strength. Option D is incorrect because
the Larmor frequency increases, not decreases, at higher field strengths.
,3. A student asks why the magnetic moments of hydrogen nuclei can only
align parallel or anti-parallel to B0. Which explanation is most accurate?
A. The magnetic field only has two poles, so only two orientations are
possible.
B. These represent the only two possible energy states (low and high) for
hydrogen nuclei in a magnetic field, as dictated by quantum mechanics.
C. The hydrogen nucleus can only spin in two directions.
D. The RF pulse can only excite nuclei in two directions.
Correct Answer: B. These represent the only two possible energy states (low
and high) for hydrogen nuclei in a magnetic field, as dictated by quantum
mechanics.
Rationale: Quantum mechanics dictates that hydrogen nuclei in a magnetic
field can only occupy two discrete energy states: parallel (low energy, spin-up)
and anti-parallel (high energy, spin-down). The magnetic moments align in
these two directions because they correspond to these energy states. Option
A is a classical oversimplification. Option C is incorrect because the nucleus
spins in one direction; it is the magnetic moment that aligns. Option D is
incorrect because the RF pulse does not determine alignment direction; it
excites nuclei to higher energy states.
4. A technologist is calculating the Larmor frequency for hydrogen at 3.0 T.
Given that the gyromagnetic ratio of hydrogen is 42.57 MHz/T, what is the
precessional frequency?
A. 42.57 MHz
B. 63.86 MHz
C. 127.71 MHz
D. 170.28 MHz
, Correct Answer: C. 127.71 MHz
Rationale: Using the Larmor equation (ω = γ × B0), multiply the gyromagnetic
ratio (42.57 MHz/T) by the field strength (3.0 T): 42.57 × 3.0 = 127.71 MHz.
Option A is the gyromagnetic ratio itself. Option B is the frequency at 1.5 T.
Option D is the frequency at 4.0 T.
5. A patient is moved from a 1.5 T scanner to a 3.0 T scanner. The technologist
notices that the signal-to-noise ratio (SNR) has improved. Which statement
best explains the relationship between field strength, NMV, and SNR?
A. Higher field strength increases the gyromagnetic ratio, which increases the
NMV and SNR.
B. Higher field strength increases the excess of spin-up nuclei, increasing the
NMV and SNR.
C. Higher field strength decreases the Larmor frequency, which increases the
SNR.
D. Higher field strength decreases the patient's temperature, which increases
the SNR.
Correct Answer: B. Higher field strength increases the excess of spin-up nuclei,
increasing the NMV and SNR.
Rationale: At higher field strengths, the energy gap between spin-up and spin-
down states is larger, so fewer nuclei occupy the high-energy state. This
creates a larger excess of spin-up nuclei, resulting in a larger NMV. The larger
NMV produces a stronger signal, improving SNR. Option A is incorrect because
the gyromagnetic ratio is constant. Option C is incorrect because higher field
strength increases the Larmor frequency. Option D is incorrect because body
temperature does not significantly change with field strength.
