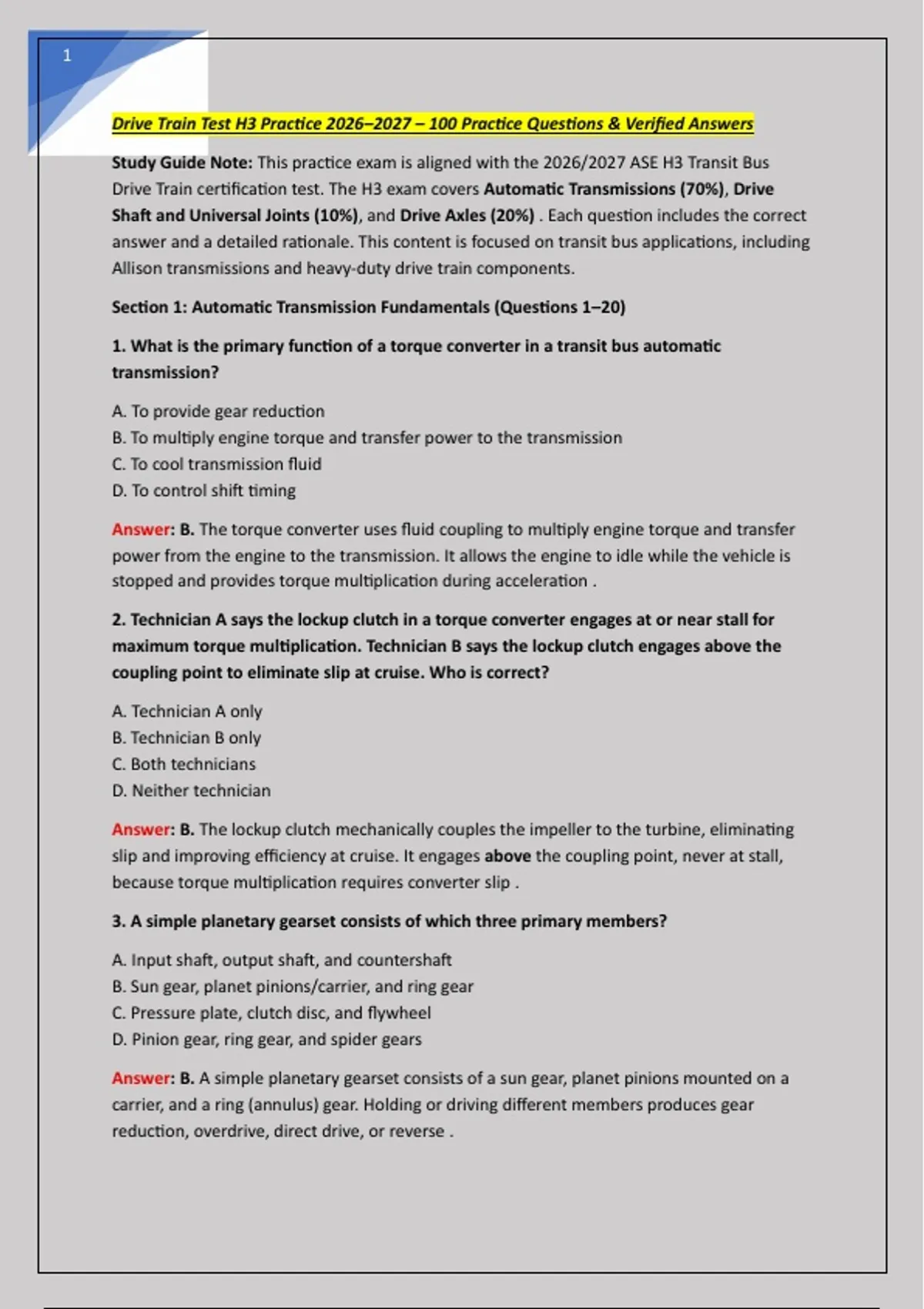

Drive Train Test H3 Practice 2026–2027 – 100 Practice Questions & Verified Answers
Study Guide Note: This practice exam is aligned with the 2026/2027 ASE H3 Transit Bus
Drive Train certification test. The H3 exam covers Automatic Transmissions (70%), Drive
Shaft and Universal Joints (10%), and Drive Axles (20%) . Each question includes the correct
answer and a detailed rationale. This content is focused on transit bus applications, including
Allison transmissions and heavy-duty drive train components.
Section 1: Automatic Transmission Fundamentals (Questions 1–20)
1. What is the primary function of a torque converter in a transit bus automatic
transmission?
A. To provide gear reduction
B. To multiply engine torque and transfer power to the transmission
C. To cool transmission fluid
D. To control shift timing
Answer: B. The torque converter uses fluid coupling to multiply engine torque and transfer
power from the engine to the transmission. It allows the engine to idle while the vehicle is
stopped and provides torque multiplication during acceleration .
2. Technician A says the lockup clutch in a torque converter engages at or near stall for
maximum torque multiplication. Technician B says the lockup clutch engages above the
coupling point to eliminate slip at cruise. Who is correct?
A. Technician A only
B. Technician B only
C. Both technicians
D. Neither technician
Answer: B. The lockup clutch mechanically couples the impeller to the turbine, eliminating
slip and improving efficiency at cruise. It engages above the coupling point, never at stall,
because torque multiplication requires converter slip .
3. A simple planetary gearset consists of which three primary members?
A. Input shaft, output shaft, and countershaft
B. Sun gear, planet pinions/carrier, and ring gear
C. Pressure plate, clutch disc, and flywheel
D. Pinion gear, ring gear, and spider gears
Answer: B. A simple planetary gearset consists of a sun gear, planet pinions mounted on a
carrier, and a ring (annulus) gear. Holding or driving different members produces gear
reduction, overdrive, direct drive, or reverse .
,2
4. On an Allison electronically controlled transit transmission, which device commands
shift solenoids and clutch apply based on inputs such as throttle position, output speed,
and range selection?
A. The retarder modulation valve
B. The output speed sensor reluctor ring
C. The torque converter stator
D. The transmission control module (TCM/ECU)
Answer: D. The transmission control module (TCM) reads sensor inputs—throttle, engine
speed, turbine speed, output speed, range selector, temperature—and commands solenoids
that control clutch apply pressure and shift timing .
5. A transit bus shows transmission fluid that is dark brown and smells burnt. What does
this most likely indicate?
A. Overheated fluid with degraded friction-clutch material
B. Normal new-fluid color for synthetic transmission fluid
C. Coolant contamination from a failed heat exchanger
D. Excessive fluid level causing aeration
Answer: A. Dark brown fluid with a burnt odor indicates the fluid has overheated and clutch
friction material has degraded, oxidizing the fluid. This calls for investigating the cause
before simply changing fluid .
6. What is the correct procedure for checking the fluid level on most Allison transit bus
transmissions equipped with a dipstick?
A. Check cold immediately after a road test with the engine off
B. Check with the fluid at operating temperature, engine idling, transmission in neutral or
park on level ground
C. Check with the engine off after the bus has sat overnight only
D. Check at full throttle with the wheels chocked
Answer: B. Allison procedure specifies checking the fluid at normal operating temperature,
engine at idle, transmission in N (or P), on level ground after wiping and reinserting the
dipstick. Temperature greatly affects level .
7. Technician A says many heavy-duty transit transmissions specify a TES-certified
synthetic transmission fluid for extended drain intervals. Technician B says any universal
automatic transmission fluid is acceptable as long as the level is correct. Who is correct?
A. Technician A only
B. Technician B only
C. Both technicians
D. Neither technician
, 3
Answer: A. Allison transit transmissions require TES-certified fluids (such as TES 295/TES 668
synthetics) to achieve published extended drain intervals and proper clutch friction
characteristics. Using a non-approved universal ATF can shorten clutch life .
8. A transit bus transmission goes into a fault mode and limits operation to a single
forward range after logging a code. This protective behavior is best described as:
A. Adaptive shift learning
B. Torque converter stall test
C. Neutral lockout
D. Limp-home / do-not-shift mode
Answer: D. When the TCM detects a serious fault, it commands a limp-home (do-not-shift)
mode that restricts the transmission to a limited range to protect components and let the
bus reach a service location .
9. During a stall test on a transit bus automatic transmission, engine RPM is far below the
specified stall speed. This most likely indicates:
A. Engine performance problem or stator one-way clutch slipping
B. A slipping forward clutch pack
C. Excessive line pressure
D. A stuck-on lockup clutch only at idle
Answer: A. A stall speed well below specification typically points to an engine that cannot
produce full power or a torque converter stator one-way clutch that is slipping, since the
stator must lock to multiply torque .
10. What is the primary purpose of a transmission retarder on a transit bus?
A. To accelerate the vehicle
B. To provide auxiliary braking to reduce service brake wear
C. To cool the transmission fluid
D. To increase fuel economy
Answer: B. Transmission retarders provide auxiliary braking on transit buses, reducing
service brake wear and improving safety on downhill grades.
11. Which component in an automatic transmission is responsible for holding or driving
planetary gearset members to achieve different gear ratios?
A. The valve body
B. The clutch packs and bands
C. The torque converter
D. The output shaft
