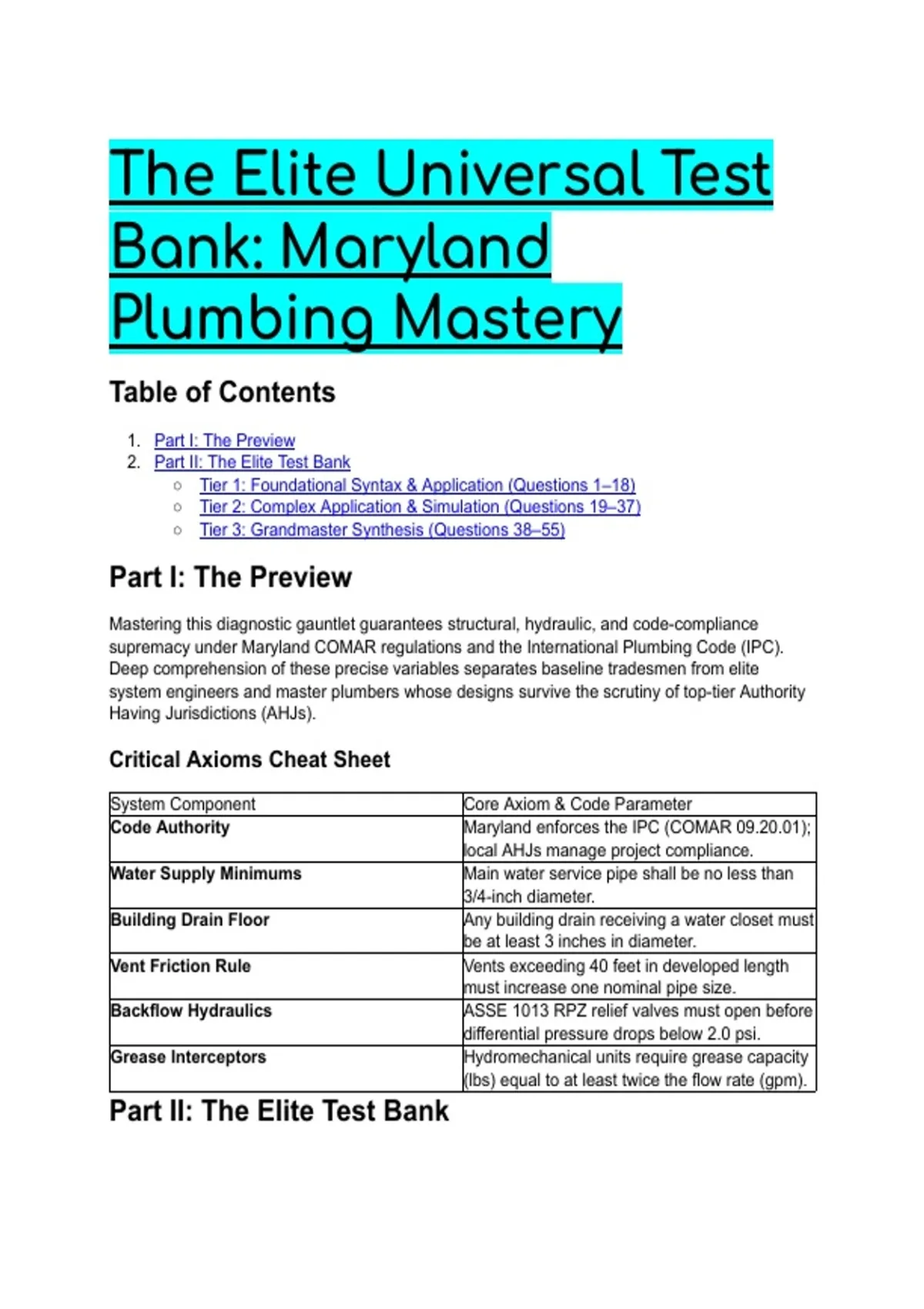

The Elite Universal Test
Bank: Maryland
Plumbing Mastery
Table of Contents
1. Part I: The Preview
2. Part II: The Elite Test Bank
○ Tier 1: Foundational Syntax & Application (Questions 1–18)
○ Tier 2: Complex Application & Simulation (Questions 19–37)
○ Tier 3: Grandmaster Synthesis (Questions 38–55)
Part I: The Preview
Mastering this diagnostic gauntlet guarantees structural, hydraulic, and code-compliance
supremacy under Maryland COMAR regulations and the International Plumbing Code (IPC).
Deep comprehension of these precise variables separates baseline tradesmen from elite
system engineers and master plumbers whose designs survive the scrutiny of top-tier Authority
Having Jurisdictions (AHJs).
Critical Axioms Cheat Sheet
System Component Core Axiom & Code Parameter
Code Authority Maryland enforces the IPC (COMAR 09.20.01);
local AHJs manage project compliance.
Water Supply Minimums Main water service pipe shall be no less than
3/4-inch diameter.
Building Drain Floor Any building drain receiving a water closet must
be at least 3 inches in diameter.
Vent Friction Rule Vents exceeding 40 feet in developed length
must increase one nominal pipe size.
Backflow Hydraulics ASSE 1013 RPZ relief valves must open before
differential pressure drops below 2.0 psi.
Grease Interceptors Hydromechanical units require grease capacity
(lbs) equal to at least twice the flow rate (gpm).
Part II: The Elite Test Bank
,Tier 1: Foundational Syntax & Application (Questions 1–18)
Q1: Under Maryland State Plumbing Code (COMAR 09.20.01) amendments to the IPC, a
commercial food service facility requires floor drains. To prevent trap seal evaporation without
utilizing a continuous drip trap primer, which alternative is MOST APPROPRIATE? A) Routing of
HVAC condensate directly into the trap weir. B) Installation of a barrier-type trap seal protection
device conforming to ASSE 1072. C) Application of a 2-inch non-toxic mineral oil layer over the
water seal. D) Installation of a deep-seal trap with a minimum 6-inch liquid seal.
● Answer: B (Installation of a barrier-type trap seal protection device conforming to ASSE
1072)
● Distractor Analysis:
○ A is incorrect: Routing condensate directly creates an indirect waste violation
without an air gap.
○ C is incorrect: Mineral oil is a legacy practice no longer recognized by the IPC as an
approved mechanical protection device.
○ D is incorrect: Deep-seal traps do not inherently prevent long-term evaporation in
dry environments.
The Mentor's Analysis: COMAR explicitly permits ASSE 1072 barrier-type devices as a reliable,
water-conserving alternative to mechanical trap primers. When facing trap seal evaporation, the
immediate priority is mechanical isolation. By utilizing ASSE 1072 devices, you bypass the
common trap of relying on failure-prone pressure-drop primers. Professional Intuition: Passive
mechanical barriers eliminate the maintenance liability of active water-fed primers.
Q2: When establishing a building's water distribution system design criteria under IPC Table
604.3, what is the REQUIRED minimum flow rate and flow pressure for a siphonic water closet
utilizing a flushometer valve? A) 25 gpm at 45 psi B) 1.6 gpm at 20 psi C) 25 gpm at 35 psi D)
12 gpm at 25 psi
● Answer: C (25 gpm at 35 psi)
● Distractor Analysis:
○ A is incorrect: 45 psi is the requirement for a blowout water closet, not siphonic.
○ B is incorrect: 1.6 gpm at 20 psi applies to a flushometer tank, not a valve.
○ D is incorrect: 12 gpm at 25 psi is the design criteria for a valve-operated urinal.
The Mentor's Analysis: Flushometer valves demand immense instantaneous flow. When facing
hydraulic calculations, the immediate priority is distinguishing between fixture mechanisms. By
utilizing 25 gpm at 35 psi for siphonic WCs, you bypass the common trap of under-sizing branch
lines based on tank-type logic. Professional Intuition: Never confuse blowout and siphonic
hydraulics; a 10 psi deficit will completely cripple a blowout fixture.
Q3: A technician is testing an ASSE 1013 RPZ assembly. Under normal operating conditions,
the relief valve is designed to open when the differential between the inlet pressure and the
zone pressure drops below which PIVOT WORD threshold? A) 1.0 psi B) 2.0 psi C) 5.0 psi D)
10.0 psi
● Answer: B (2.0 psi)
● Distractor Analysis:
○ A is incorrect: 1.0 psi is the holding requirement for the second check valve.
○ C is incorrect: 5.0 psi is a typical residual pressure reading, not the mechanical
threshold.
○ D is incorrect: 10.0 psi is an average friction loss through the assembly, not the
setpoint.
, The Mentor's Analysis: The ASSE 1013 standard engineers the relief valve to sense pressure
drops. When facing backflow testing, the immediate priority is verifying the differential. By
utilizing the 2.0 psi threshold, you bypass the common trap of misdiagnosing a functioning relief
valve as a failure. Professional Intuition: A dumping RPZ is rarely a broken RPZ; it is usually
doing exactly what it was designed to do—protecting the system from a fouled check.
Q4: Based on IPC Section 710, what is the MINIMUM allowable diameter for any building drain
serving a water closet? A) 2 inches B) 2-1/2 inches C) 3 inches D) 4 inches
● Answer: C (3 inches)
● Distractor Analysis:
○ A is incorrect: 2 inches is permissible for individual fixture drains like showers, but
fails solids-handling requirements.
○ B is incorrect: 2-1/2 inches is a recognized pipe size but unauthorized for building
drains receiving WC discharge.
○ D is incorrect: 4 inches is common practice but exceeds the hard code minimum.
The Mentor's Analysis: Regardless of the calculated DFU load, IPC 710.1(1) dictates a
structural floor. When facing initial pipe sizing, the immediate priority is identifying WC locations.
By utilizing a 3-inch absolute minimum, you bypass the common trap of relying solely on DFU
tables for dimensioning. Professional Intuition: DFU math never overrides strict dimensional
minimums for solids-bearing pipe runs.
Q5: To comply with IPC requirements for hot water distribution, what is the MAXIMUM allowable
temperature for tempered water delivered to public hand-washing facilities, and which standard
must the point-of-use mixing valve meet? A) 120°F (ASSE 1017) B) 110°F (ASSE 1070) C)
140°F (ASSE 1082) D) 105°F (ASSE 1016)
● Answer: B (110°F (ASSE 1070))
● Distractor Analysis:
○ A is incorrect: 120°F exceeds the scald-safe limit, and ASSE 1017 is for source
mixing, not point-of-use.
○ C is incorrect: 140°F is for thermal sanitation or space heating.
○ D is incorrect: ASSE 1016 applies to shower and tub-shower combination valves,
not public hand-washing limiters.
The Mentor's Analysis: Section 607.1.2 mandates localized protection against scalding. When
facing public lavatory design, the immediate priority is limiting exposure. By utilizing ASSE 1070
valves calibrated to 110°F max, you bypass the common trap of relying solely on the water
heater thermostat. Professional Intuition: ASSE 1017 protects the system; ASSE 1070
protects the user.
Q6: According to IPC Table 909.1, what is the MAXIMUM distance a 1-1/2 inch fixture trap can
be installed from its vent? A) 3 feet 6 inches B) 5 feet C) 6 feet D) 8 feet
● Answer: C (6 feet)
● Distractor Analysis:
○ A is incorrect: 3 feet 6 inches is a legacy UPC limitation.
○ B is incorrect: 5 feet is the maximum distance for a 1-1/4 inch trap.
○ D is incorrect: 8 feet is the maximum distance for a 2-inch trap.
The Mentor's Analysis: The trap-to-vent distance is governed by pipe diameter and slope. When
facing rough-in layouts, the immediate priority is preventing self-siphonage. By utilizing the
6-foot limit, you bypass the common trap of allowing the pipe's physical fall to exceed its inner
diameter. Professional Intuition: The maximum vent distance is the point where the total
vertical fall equals the inner diameter of the drain.
Q7: When installing cleanouts on a horizontal sanitary drainage system containing 4-inch pipe,
