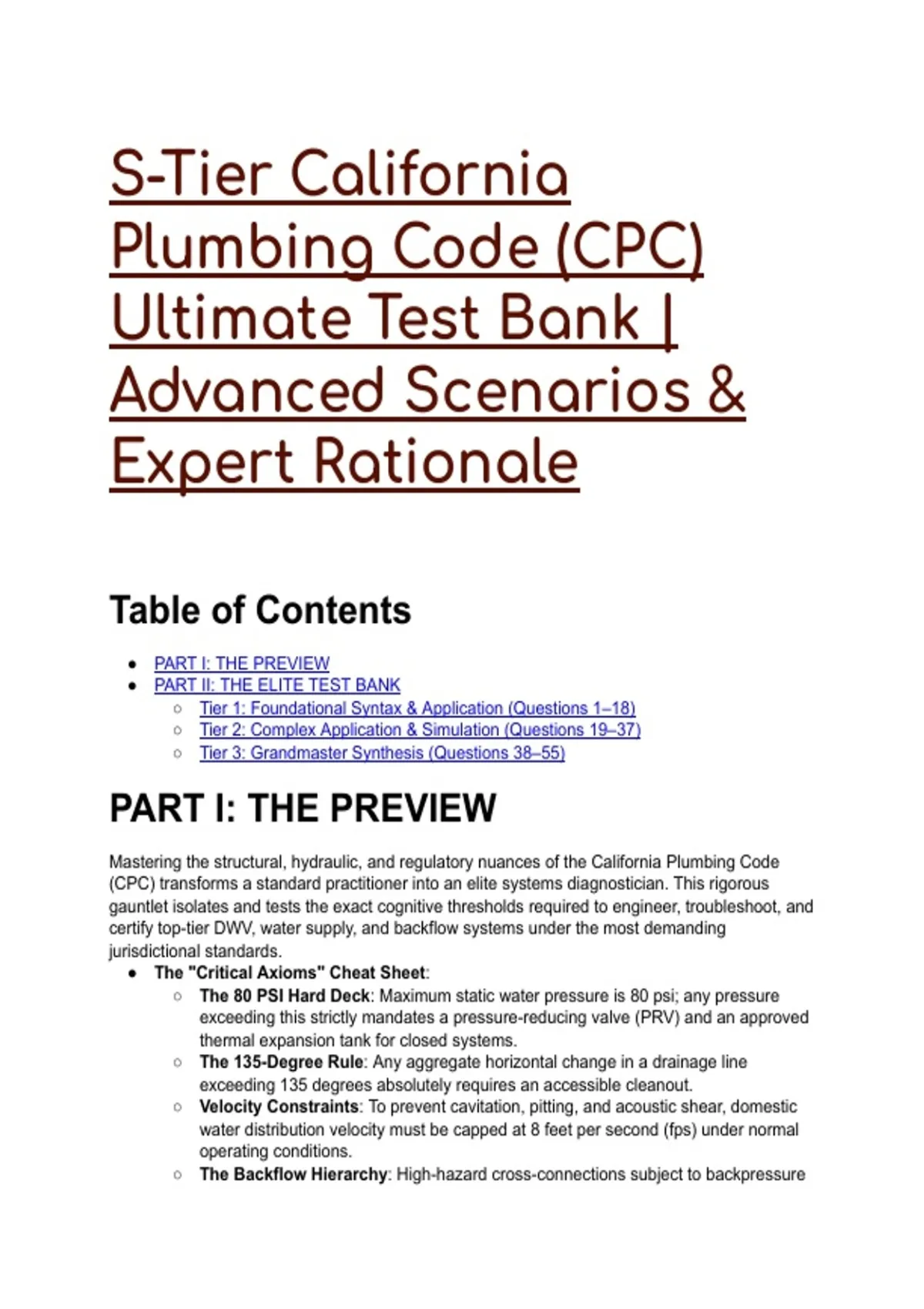

S-Tier California
Plumbing Code (CPC)
Ultimate Test Bank |
Advanced Scenarios &
Expert Rationale
Table of Contents
● PART I: THE PREVIEW
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–18)
○ Tier 2: Complex Application & Simulation (Questions 19–37)
○ Tier 3: Grandmaster Synthesis (Questions 38–55)
PART I: THE PREVIEW
Mastering the structural, hydraulic, and regulatory nuances of the California Plumbing Code
(CPC) transforms a standard practitioner into an elite systems diagnostician. This rigorous
gauntlet isolates and tests the exact cognitive thresholds required to engineer, troubleshoot, and
certify top-tier DWV, water supply, and backflow systems under the most demanding
jurisdictional standards.
● The "Critical Axioms" Cheat Sheet:
○ The 80 PSI Hard Deck: Maximum static water pressure is 80 psi; any pressure
exceeding this strictly mandates a pressure-reducing valve (PRV) and an approved
thermal expansion tank for closed systems.
○ The 135-Degree Rule: Any aggregate horizontal change in a drainage line
exceeding 135 degrees absolutely requires an accessible cleanout.
○ Velocity Constraints: To prevent cavitation, pitting, and acoustic shear, domestic
water distribution velocity must be capped at 8 feet per second (fps) under normal
operating conditions.
○ The Backflow Hierarchy: High-hazard cross-connections subject to backpressure
, require a Reduced Pressure Principle Backflow Preventer (ASSE 1013 RPZ);
vacuum breakers defend against backsiphonage only.
○ Trap Arm Geometry: The developed length of a trap arm must not exceed strict
limits based on pipe diameter, and the vent opening must never drop below the trap
weir.
Core CPC Reference Tables
Trap Arm Diameter (Inches) Maximum Developed Length
1-1/4 30 inches (2 feet, 6 inches)
1-1/2 42 inches (3 feet, 6 inches)
2 60 inches (5 feet, 0 inches)
3 72 inches (6 feet, 0 inches)
4 & Larger 120 inches (10 feet, 0 inches)
Data derived from CPC Table 1002.2
Assembly Standard Protection Type Hazard Level Application
ASSE 1013 (RPZ) Backpressure & High Boilers, Chillers,
Backsiphonage Chemical Vats
ASSE 1015 (DCVA) Backpressure & Low Standard Fire Systems
Backsiphonage
ASSE 1020 (PVB) Backsiphonage Only High Irrigation (No
Backpressure)
ASSE 1022 Backpressure & High Carbonated Beverage
Backsiphonage Dispensers
Data derived from
ASSE Performance
Standards
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: An apprentice is installing a 2-inch drainage trap for a standalone commercial shower.
Based on the principles of CPC Trap Arm Lengths, which dimension is the MAXIMUM allowable
developed length from the trap weir to the inner edge of the vent? A) 30 inches B) 42 inches C)
60 inches D) 72 inches
● Answer: C (60 inches)
● Distractor Analysis:
○ A is incorrect: 30 inches represents the absolute limit for a 1-1/4 inch trap arm, not
a 2-inch shower drain.
○ B is incorrect: 42 inches is the restrictive limit for a 1-1/2 inch trap arm commonly
utilized for bathtubs and standard lavatories.
○ D is incorrect: A 72-inch allowance is explicitly reserved for 3-inch trap arms,
historically engineered for water closets.
The Mentor's Analysis: Trap arm lengths dictate pneumatic stability. When facing potential trap
, seal loss, the immediate priority is verifying the distance to the vent. By utilizing CPC Table
1002.2, you bypass the common trap of inducing self-siphonage through overextended
unvented arms. Professional Intuition: The diameter of the pipe dictates the pneumatic
runway; always pair a 2-inch shower drain with a maximum 60-inch trap arm.
Q2: A contractor is roughing in a 3-inch horizontal building drain and must provide access for
future maintenance. Based on the principles of CPC Cleanout Clearances, which front working
space clearance is REQUIRED? A) 12 inches B) 18 inches C) 24 inches D) 30 inches
● Answer: C (24 inches)
● Distractor Analysis:
○ A is incorrect: 12 inches violates all standard accessibility metrics for commercial
mechanical augers.
○ B is incorrect: 18 inches is the minimum clearance strictly mandated for piping 2
inches or less in diameter.
○ D is incorrect: 30 inches is required for horizontal clearance from an access panel
or crawl hole, not the direct front working space facing the plug.
The Mentor's Analysis: Mechanical maintenance requires spatial physics. When facing a
cleanout installation on piping larger than 2 inches, the immediate priority is securing auger
leverage. By utilizing the 24-inch clearance rule, you bypass the common trap of creating a
legally inaccessible, non-compliant cleanout. Professional Intuition: Pipe diameter dictates tool
size; if the pipe exceeds 2 inches, the front clearance expands to a mandatory 24 inches.
Q3: A multi-family residential building records a static street water pressure of 92 psi. Based on
the principles of CPC Water Supply Systems, which action is MANDATORY? A) Install an ASSE
1010 Water Hammer Arrester. B) Install a Pressure-Reducing Valve (PRV) and a thermal
expansion tank. C) Increase the building's main supply line by one nominal pipe size. D) Install
a Double Check Valve Assembly (DCVA) at the meter.
● Answer: B (Install a Pressure-Reducing Valve (PRV) and a thermal expansion tank.)
● Distractor Analysis:
○ A is incorrect: Water hammer arresters mitigate kinetic shockwaves from
fast-closing valves, not static municipal street pressure.
○ C is incorrect: Increasing pipe size reduces velocity friction but has absolutely zero
effect on static pressure.
○ D is incorrect: A DCVA prevents backflow but possesses no pressure-reducing or
thermal expansion capabilities.
The Mentor's Analysis: Static pressure above 80 psi destroys fixture seals and appliance
solenoids. When facing street pressure exceeding 80 psi, the immediate priority is mechanical
pressure reduction. By utilizing a PRV combined with thermal expansion control, you bypass the
common trap of creating a closed system that ruptures under thermal load. Professional
Intuition: 80 PSI is the absolute structural ceiling for unmitigated static pressure in a potable
system.
Q4: A high-end custom home utilizes Type L copper tubing for its entire domestic water
distribution system. Based on the principles of CPC Hydraulic Sizing, what is the MAXIMUM
permissible water velocity to prevent premature erosion corrosion? A) 4 feet per second B) 8
feet per second C) 10 feet per second D) 12 feet per second
● Answer: B (8 feet per second)
● Distractor Analysis:
○ A is incorrect: 4 fps is highly conservative and often mandated for continuously
circulating hot water return loops, but it is not the maximum limit for standard cold
distribution systems.
