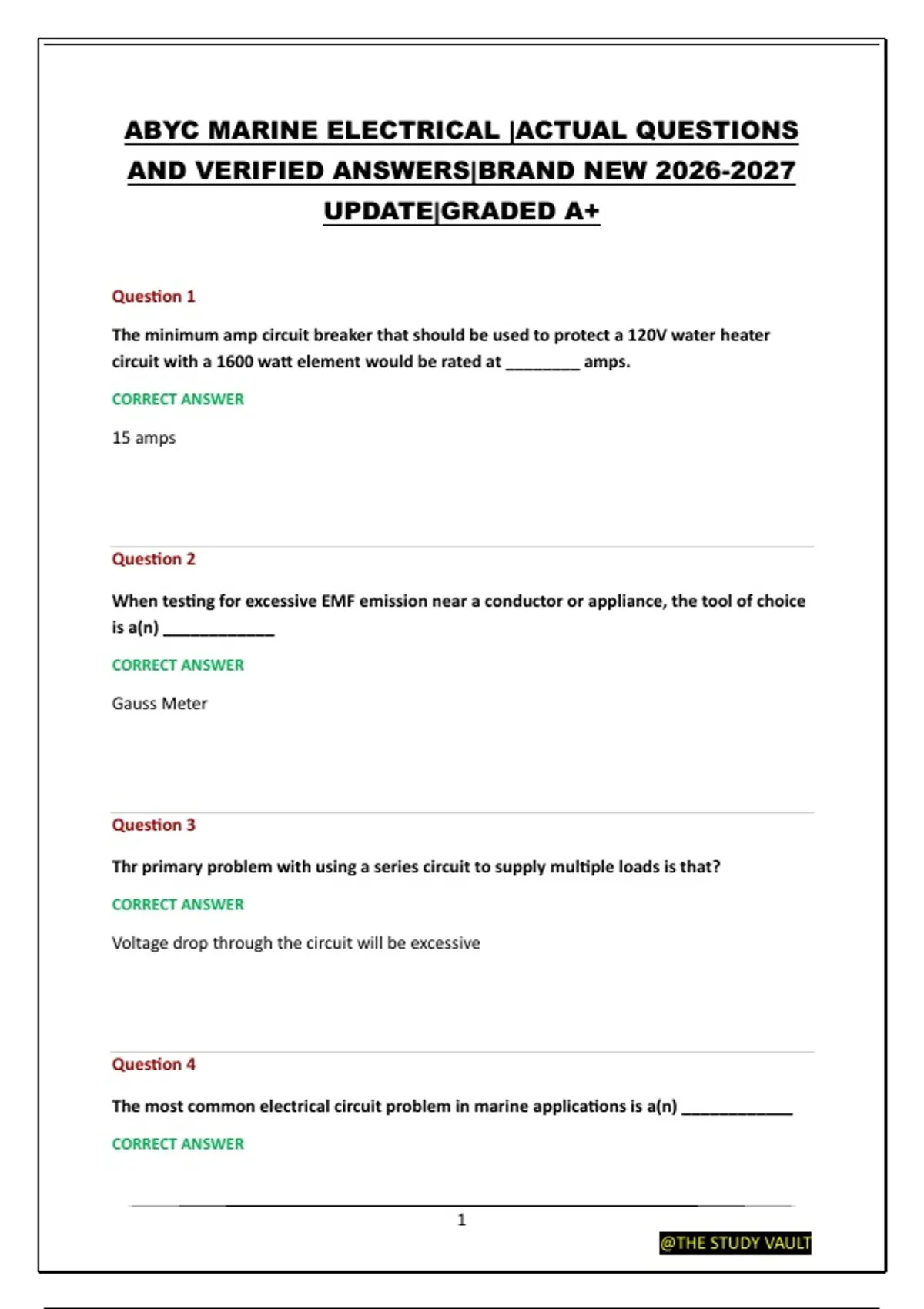

ABYC MARINE ELECTRICAL |ACTUAL QUESTIONS AND VERIFIED ANSWERS|BRAND NEW UPDATE|GRADED A+

ABYC MARINE ELECTRICAL |ACTUAL QUESTIONS
AND VERIFIED ANSWERS|BRAND NEW 2026-2027
UPDATE|GRADED A+


Question 1

The minimum amp circuit breaker that should be used to protect a 120V water heater
circuit with a 1600 watt element would be rated at ________ amps.

CORRECT ANSWER

15 amps




Question 2

When testing for excessive EMF emission near a conductor or appliance, the tool of choice
is a(n) ____________

CORRECT ANSWER

Gauss Meter




Question 3

Thr primary problem with using a series circuit to supply multiple loads is that?

CORRECT ANSWER

Voltage drop through the circuit will be excessive




Question 4

The most common electrical circuit problem in marine applications is a(n) ____________
CORRECT ANSWER



1
@THE STUDY VAULT

,unwanted open




Question 5

The primary by-product of excessive electrical resistance is ___________

CORRECT ANSWER

heat




Question 6

One horsepower is equal to ________ watts

CORRECT ANSWER

746




Question 7

Excessive electrical resistance can be caused by?

CORRECT ANSWER

undersized wire, loose connections, and corrosion




Question 8

The tool of choice for tracing shorted and open circuits is the ________.
CORRECT ANSWER

TDR (Time Domain Reflectometer)




2
@THE STUDY VAULT

, Question 9

What material is recommended for clamping conductors over egines and moving
machinery?

CORRECT ANSWER

Metal (w/ insulated inserts)




Question 10

What is the acceptable minimum clearance for routing wire near a DRY exhaust section?

CORRECT ANSWER

9in (225mm)




Question 11

The maximum number of terminals allowed to be attached to any one terminal stud is
______.

CORRECT ANSWER

4




Question 12

How much current should flow through the DC grounding conductor in a 25 amp DC motor
circuit?

CORRECT ANSWER

0 amps (grounding conductor)




Question 13
