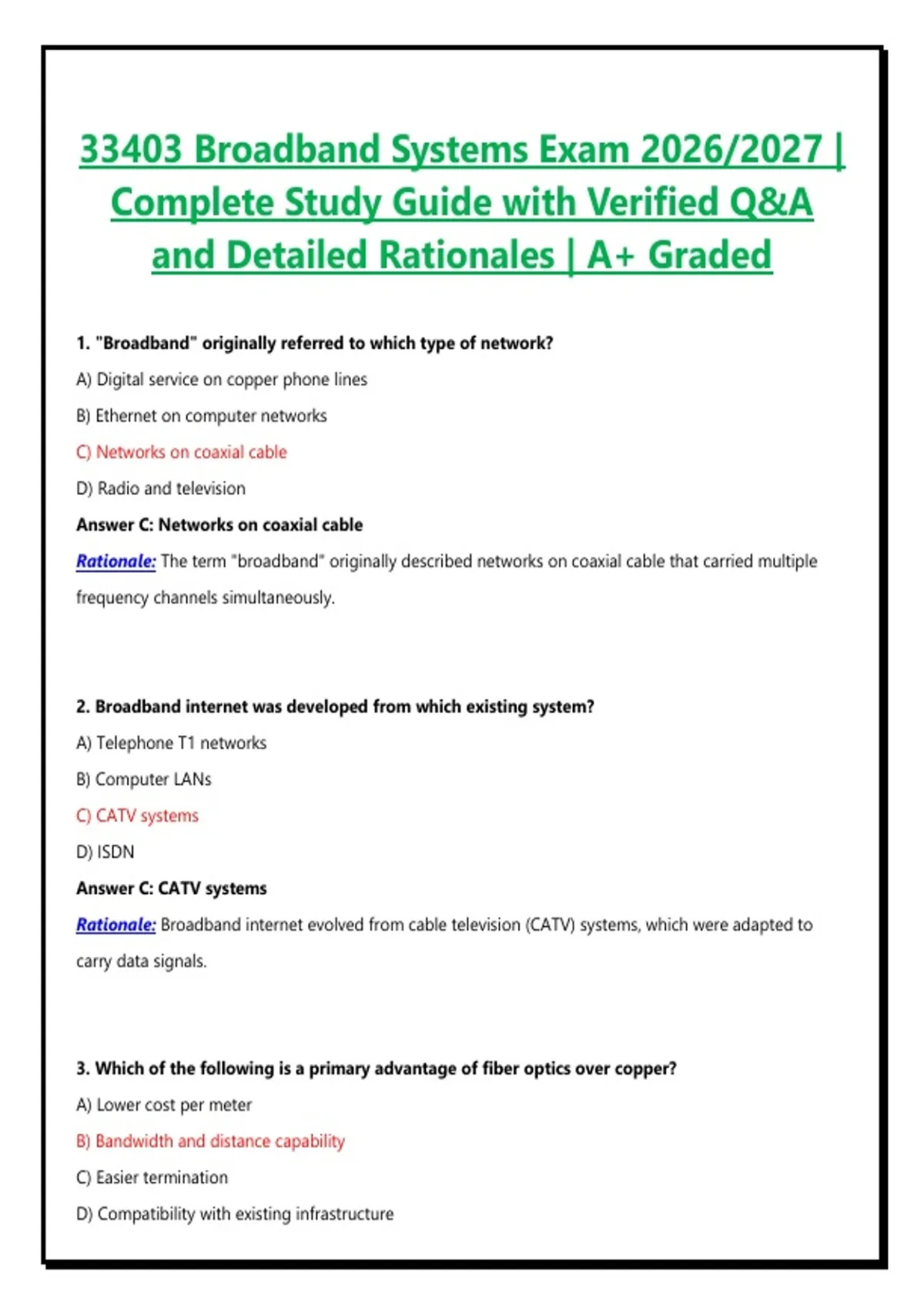

33403 Broadband Systems Exam 2026/2027 |
Complete Study Guide with Verified Q&A
and Detailed Rationales | A+ Graded
1. "Broadband" originally referred to which type of network?
A) Digital service on copper phone lines
B) Ethernet on computer networks
C) Networks on coaxial cable
D) Radio and television
Answer C: Networks on coaxial cable
Rationale: The term "broadband" originally described networks on coaxial cable that carried multiple
frequency channels simultaneously.
2. Broadband internet was developed from which existing system?
A) Telephone T1 networks
B) Computer LANs
C) CATV systems
D) ISDN
Answer C: CATV systems
Rationale: Broadband internet evolved from cable television (CATV) systems, which were adapted to
carry data signals.
3. Which of the following is a primary advantage of fiber optics over copper?
A) Lower cost per meter
B) Bandwidth and distance capability
C) Easier termination
D) Compatibility with existing infrastructure
,Answer B: Bandwidth and distance capability
Rationale: Fiber optics offers superior bandwidth and longer transmission distances, along with
immunity to EMI and lighter weight.
4. Dial-up broadband is no longer used to access the internet.
A) True
B) False
C) Only in rural areas
D) It is still the primary method
Answer B: False
Rationale: Dial-up access is obsolete for broadband and has been replaced by DSL, cable, and fiber
technologies.
5. A frequency of 1,000 Hz expressed as a power of 10 would be:
A) 1 × 10² Hz
B) 1 × 10³ Hz
C) 1 × 10⁴ Hz
D) 1 × 10⁶ Hz
Answer B: 1 × 10³ Hz
Rationale: 1,000 Hz is equal to 1 × 10³ Hz, a standard scientific notation conversion.
6. The architecture of an MATV system is the same as that of an SMATV system, except the
headend of an MATV system cannot receive input signals from a(n):
A) Off-air antenna
B) Satellite antenna
C) Cable feed
D) Local origination equipment
Answer B: Satellite antenna
,Rationale: SMATV includes satellite signals; MATV typically does not, making this the key difference.
7. According to NEC Article 820, the type of coaxial cable suitable for installation in vertical shafts
is:
A) CATV
B) CATVP
C) CATVR
D) CATVX
Answer C: CATVR
Rationale: CATVR is the coaxial cable type approved for vertical shaft installations under NEC Article 820.
8. During headend alignment, all processing channels should be aligned so that their output
signals at the output of the final combiner are balanced within:
A) Plus or minus 0.5 dB
B) Plus or minus 1 dB
C) Plus or minus 2 dB
D) Plus or minus 3 dB
Answer B: Plus or minus 1 dB
Rationale: Headend alignment requires all channel outputs to be balanced within ±1 dB at the final
combiner.
9. When using a systematic approach to troubleshooting, the first step should be to:
A) Identify the faulty component
B) Interview the customer about the problem
C) Check the power supply
D) Replace the suspected module
Answer B: Interview the customer about the problem
, Rationale: A systematic troubleshooting approach begins with gathering information from the customer
about the problem.
10. Which network topology is most likely to continue functioning when a device fails?
A) Star
B) Bus
C) Ring
D) Mesh
Answer D: Mesh
Rationale: Mesh topologies provide multiple redundant paths; if one device fails, traffic can be rerouted.
11. The formula to calculate the power ratio in decibels for two voltages is:
A) dB = 10 × log10(V1/V2)
B) dB = 20 × log10(V1/V2)
C) dB = 20 × ln(V1/V2)
D) dB = 10 × ln(V1/V2)
Answer B: dB = 20 × log10(V1/V2)
Rationale: Voltage decibel ratio is 20 × log10(V1/V2) because power is proportional to voltage squared.
12. The fastest broadband delivery speeds can be achieved using:
A) Coaxial cable
B) DSL
C) Fiber optic cable
D) Wireless
Answer C: Fiber optic cable
Rationale: Fiber optic cable provides the highest bandwidth and fastest speeds of any broadband
medium.
