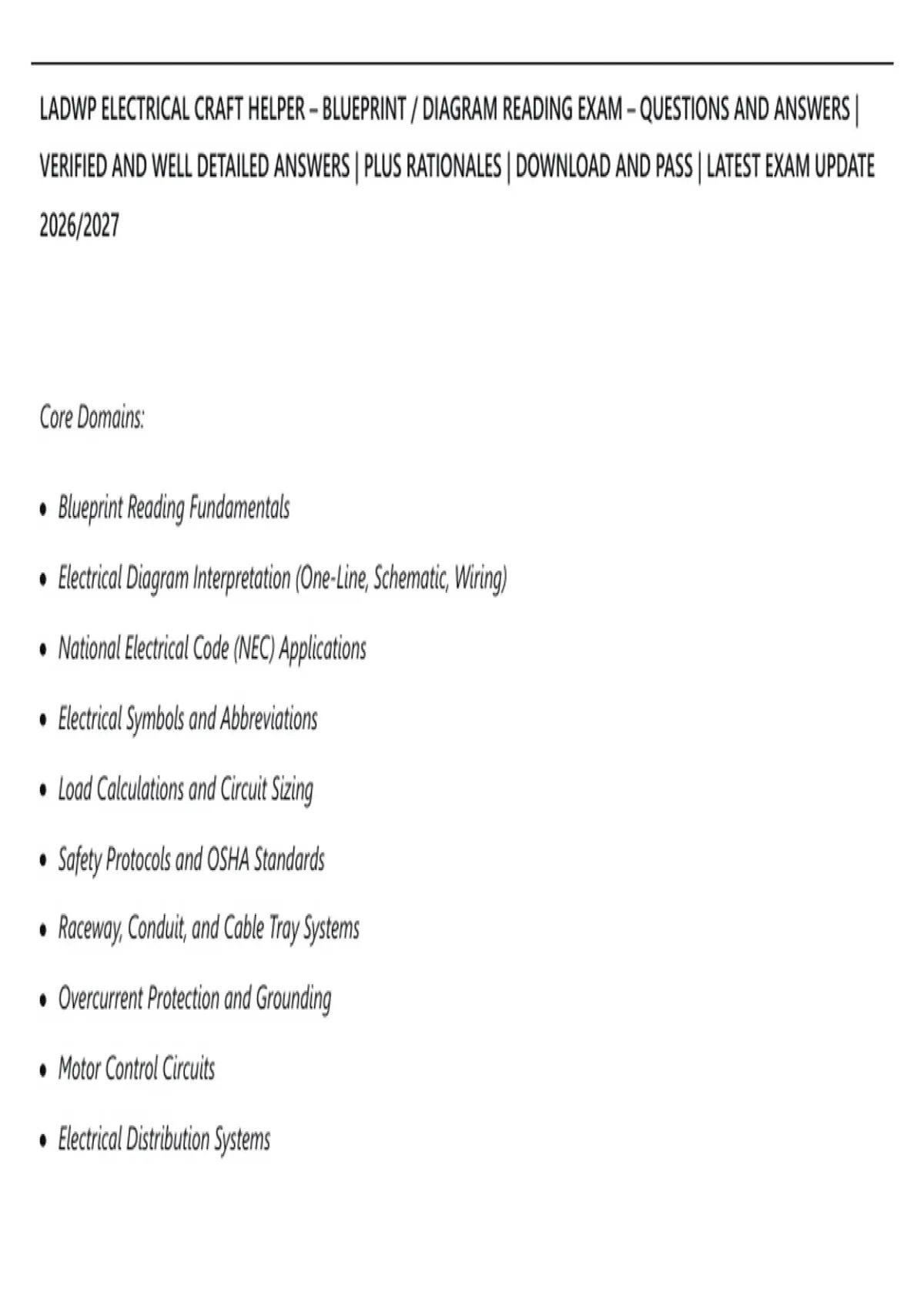

LADWP ELECTRICAL CRAFT HELPER – BLUEPRINT / DIAGRAM READING EXAM – QUESTIONS AND ANSWERS |
VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE
2026/2027
Core Domains:
Blueprint Reading Fundamentals
Electrical Diagram Interpretation (One-Line, Schematic, Wiring)
National Electrical Code (NEC) Applications
Electrical Symbols and Abbreviations
Load Calculations and Circuit Sizing
Safety Protocols and OSHA Standards
Raceway, Conduit, and Cable Tray Systems
Overcurrent Protection and Grounding
Motor Control Circuits
Electrical Distribution Systems
,Introduction
This comprehensive examination is designed to rigorously assess the knowledge and skills of candidates for the LADWP
Electrical Craft Helper position, specifically focusing on blueprint and diagram reading. The exam covers a wide
spectrum of topics, from foundational theory and symbol recognition to applied professional knowledge and critical
decision-making in real-world scenarios. It incorporates multiple-choice questions alongside scenario-based problems
to evaluate your ability to interpret complex electrical diagrams, apply National Electrical Code standards, and ensure
safety and regulatory compliance. Success on this exam demonstrates a candidate's readiness to accurately read and
apply technical documents, a crucial function in the maintenance and construction of electrical systems. Emphasis is
placed on practical application, ethical standards, and the ability to make sound judgments based on the information
presented in blueprints and schematics.
SECTION ONE: QUESTIONS 1 – 50
Question 1
What is the primary purpose of a one-line diagram in an electrical distribution system?
,A. To show the physical layout of all electrical equipment in a building
B. To illustrate the flow of power through the system using simplified symbols
C. To provide detailed wiring connections for a single piece of equipment
D. To map out the grounding electrode system for a facility
🟢 Correct Answer: B. To illustrate the flow of power through the system using simplified symbols
🔴 Explanation: A one-line diagram, also known as a single-line diagram, uses simplified symbols to show the major
components and power flow of an electrical system. It does not show the physical layout (A) nor detailed wiring
connections (C). While a grounding system is represented, its primary purpose is not to map it exclusively (D).
Question 2
On an electrical blueprint, a rectangle with two vertical lines crossing its center typically represents which of the
following?
A. A disconnect switch
B. A circuit breaker
C. A grounding rod
D. A motor starter
, 🟢 Correct Answer: A. A disconnect switch
🔴 Explanation: The symbol for a disconnect switch is often depicted as a rectangle with two vertical lines crossing
it. A circuit breaker (B) is usually represented by a rectangle with an 'X' or specific breaker symbols. A grounding rod
(C) is shown with a vertical line and horizontal marks. A motor starter (D) has a more complex symbol including coils
and contacts.
Question 3
What does a dashed line connecting two points on a wiring diagram typically indicate?
A. A mechanical connection
B. An electrical conductor
C. A field-installed wiring
D. A control circuit wire
🟢 Correct Answer: A. A mechanical connection
🔴 Explanation: In many electrical diagrams, a dashed line often signifies a mechanical linkage between two devices,
such as a switch handle and its contacts. Solid lines typically represent electrical conductors (B), while specific line
