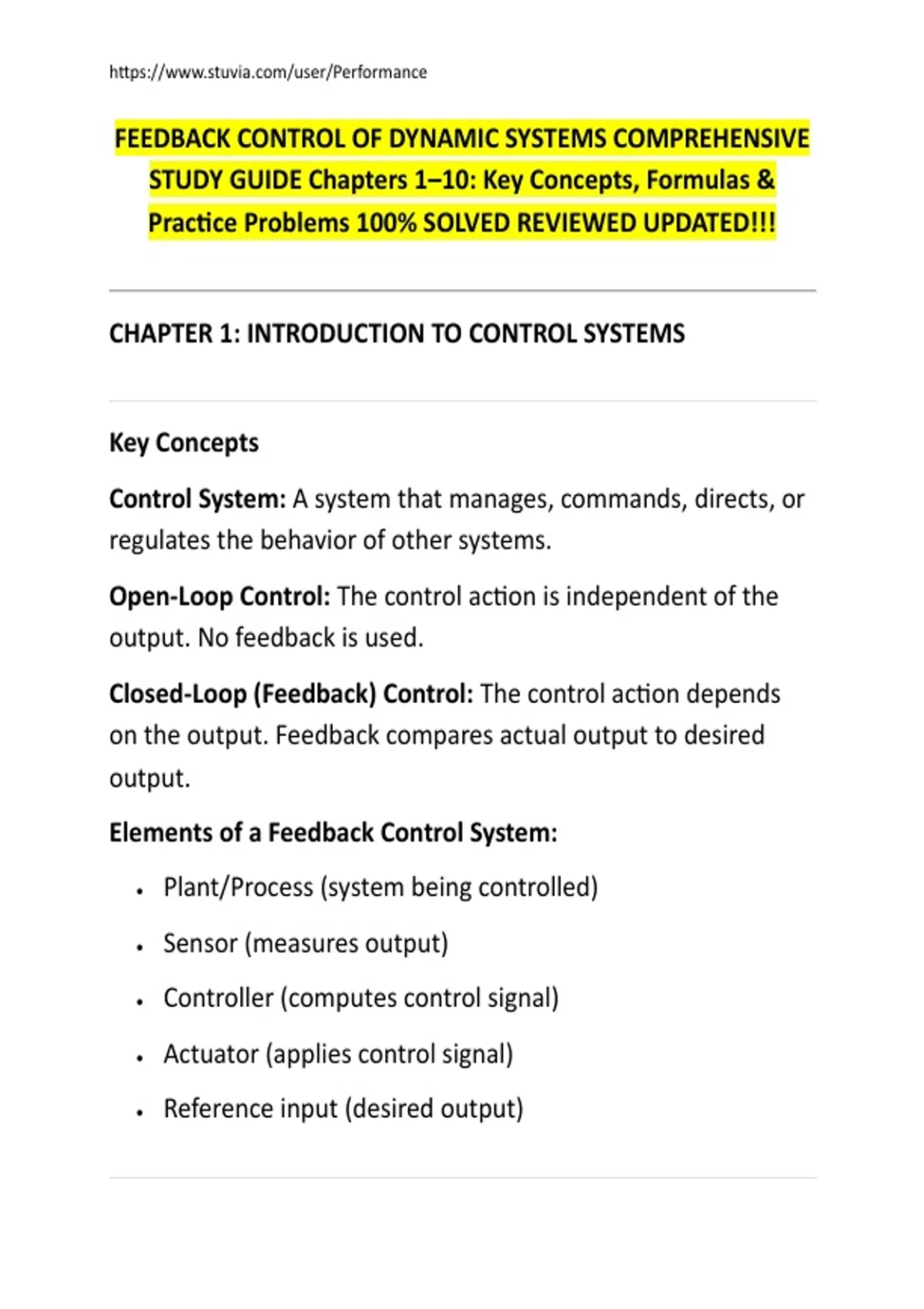

FEEDBACK CONTROL OF DYNAMIC SYSTEMS COMPREHENSIVE
STUDY GUIDE Chapters 1–10: Key Concepts, Formulas &
Practice Problems 100% SOLVED REVIEWED UPDATED!!!
CHAPTER 1: INTRODUCTION TO CONTROL SYSTEMS
Key Concepts
Control System: A system that manages, commands, directs, or
regulates the behavior of other systems.
Open-Loop Control: The control action is independent of the
output. No feedback is used.
Closed-Loop (Feedback) Control: The control action depends
on the output. Feedback compares actual output to desired
output.
Elements of a Feedback Control System:
• Plant/Process (system being controlled)
• Sensor (measures output)
• Controller (computes control signal)
• Actuator (applies control signal)
• Reference input (desired output)
,https://www.stuvia.com/user/Performance
Key Formulas
Transfer Function (general):
G(s)=Y(s)U(s)=OutputInputG(s)=U(s)Y(s)=InputOutput
Feedback Transfer Function (unity feedback):
T(s)=G(s)1+G(s)H(s)T(s)=1+G(s)H(s)G(s)
Where:
• G(s)G(s) = forward path transfer function
• H(s)H(s) = feedback path transfer function
Practice Problems
Problem 1.1: Identify whether each system is open-loop or
closed-loop:
a) A microwave oven set to cook for 2 minutes
b) A thermostat-controlled heating system
c) Cruise control in a car
Solution:
a) Open-loop (timer-based, no feedback on food temperature)
b) Closed-loop (thermostat senses temperature and adjusts
heating)
c) Closed-loop (senses speed and adjusts throttle)
, https://www.stuvia.com/user/Performance
Problem 1.2: A system has forward transfer
function G(s)=10s+2G(s)=s+210 and feedback H(s)=1H(s)=1.
Find the closed-loop transfer function.
Solution:
T(s)=G(s)1+G(s)H(s)=10s+21+10s+2=10s+2+10=10s+12T(s)=1+G(
s)H(s)G(s)=1+s+210s+210=s+2+1010=s+1210
CHAPTER 2: DYNAMIC MODELS
Key Concepts
Differential Equations: Describe system dynamics relating input
and output.
Laplace Transform: Converts differential equations to algebraic
equations.
Transfer Function: G(s)=Y(s)U(s)G(s)=U(s)Y(s) (assuming zero
initial conditions)
State-Space Representation:
x˙(t)=Ax(t)+Bu(t)x˙(t)=Ax(t)+Bu(t)y(t)=Cx(t)+Du(t)y(t)=Cx(t)+Du(t)
Key Formulas
Laplace Transform Pairs:
