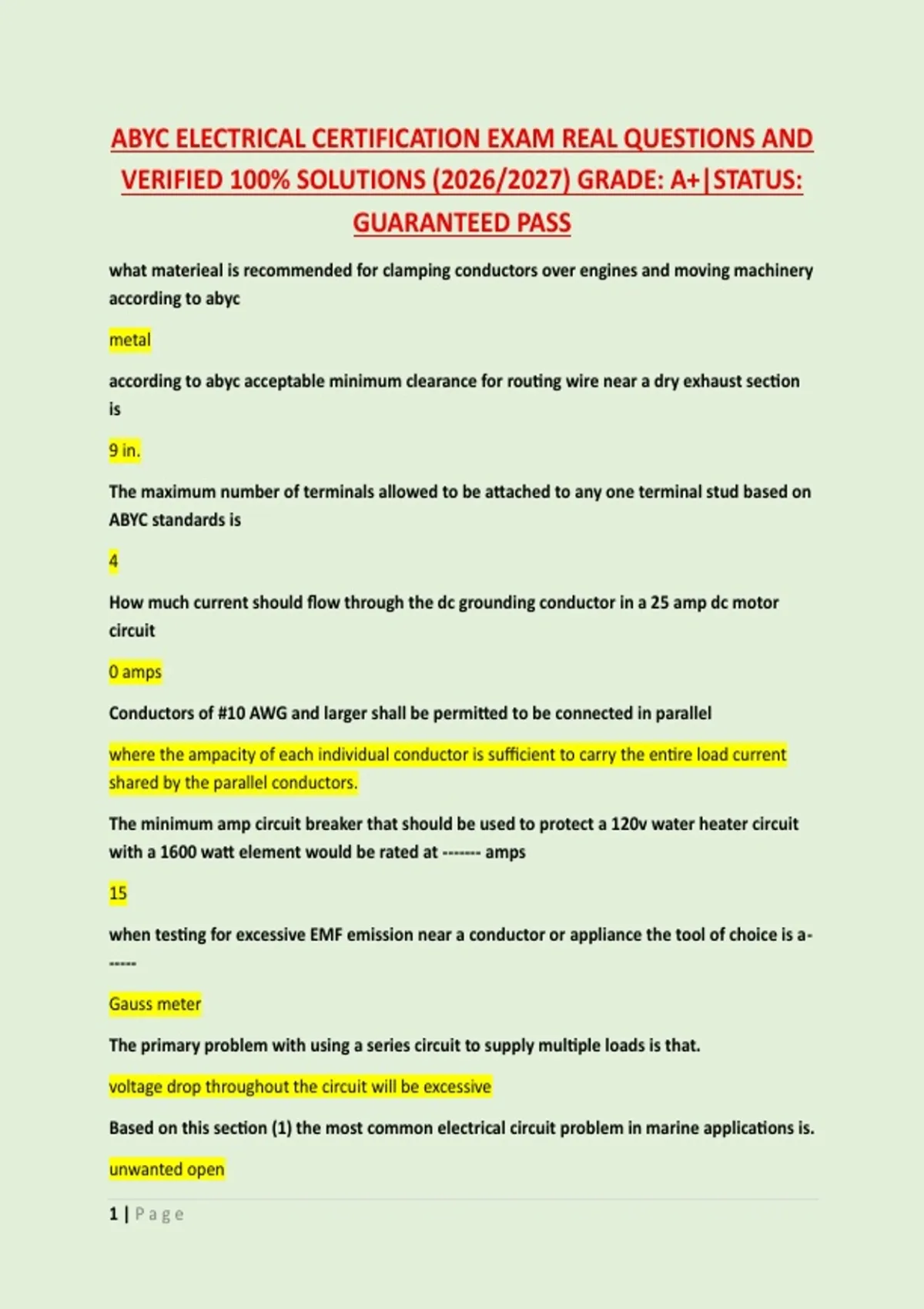

ABYC ELECTRICAL CERTIFICATION EXAM REAL QUESTIONS AND
VERIFIED 100% SOLUTIONS (2026/2027) GRADE: A+|STATUS:
GUARANTEED PASS
what materieal is recommended for clamping conductors over engines and moving machinery
according to abyc
metal
according to abyc acceptable minimum clearance for routing wire near a dry exhaust section
is
9 in.
The maximum number of terminals allowed to be attached to any one terminal stud based on
ABYC standards is
4
How much current should flow through the dc grounding conductor in a 25 amp dc motor
circuit
0 amps
Conductors of #10 AWG and larger shall be permitted to be connected in parallel
where the ampacity of each individual conductor is sufficient to carry the entire load current
shared by the parallel conductors.
The minimum amp circuit breaker that should be used to protect a 120v water heater circuit
with a 1600 watt element would be rated at ------- amps
15
when testing for excessive EMF emission near a conductor or appliance the tool of choice is a-
-----
Gauss meter
The primary problem with using a series circuit to supply multiple loads is that.
voltage drop throughout the circuit will be excessive
Based on this section (1) the most common electrical circuit problem in marine applications is.
unwanted open
1|Page
