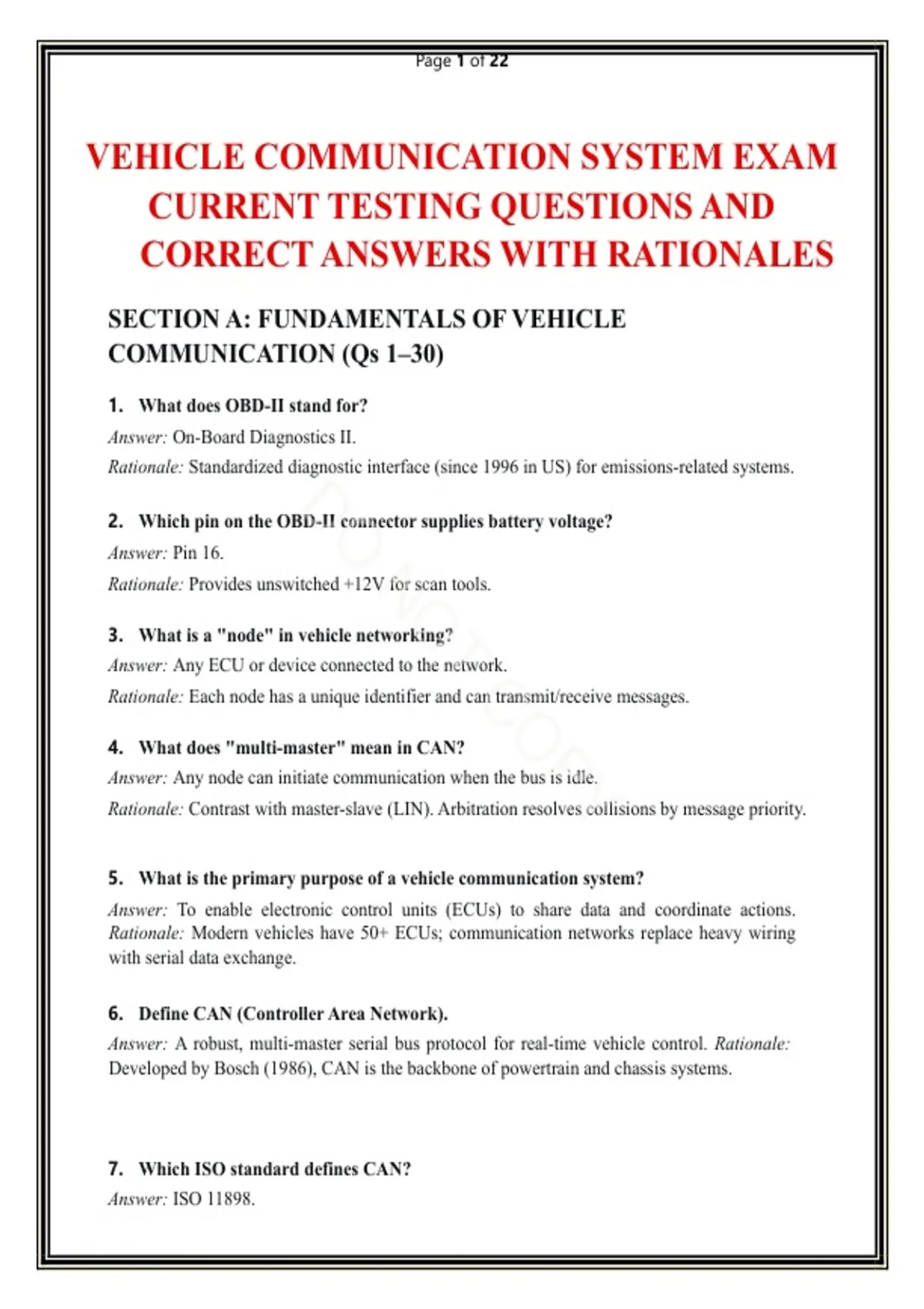

VEHICLE COMMUNICATION SYSTEM EXAM
CURRENT TESTING QUESTIONS AND
CORRECT ANSWERS WITH RATIONALES
SECTION A: FUNDAMENTALS OF VEHICLE
COMMUNICATION (Qs 1–30)
1. What does OBD-II stand for?
Answer: On-Board Diagnostics II.
Rationale: Standardized diagnostic interface (since 1996 in US) for emissions-related systems.
2. Which pin on the OBD-II connector supplies battery voltage?
D
O
Answer: Pin 16.
Rationale: Provides unswitched +12V for scan tools.
N
3. What is a "node" in vehicle networking?
O
Answer: Any ECU or device connected to the network.
T
Rationale: Each node has a unique identifier and can transmit/receive messages.
C
4. What does "multi-master" mean in CAN?
O
Answer: Any node can initiate communication when the bus is idle.
PY
Rationale: Contrast with master-slave (LIN). Arbitration resolves collisions by message priority.
5. What is the primary purpose of a vehicle communication system?
Answer: To enable electronic control units (ECUs) to share data and coordinate actions.
Rationale: Modern vehicles have 50+ ECUs; communication networks replace heavy wiring
with serial data exchange.
6. Define CAN (Controller Area Network).
Answer: A robust, multi-master serial bus protocol for real-time vehicle control. Rationale:
Developed by Bosch (1986), CAN is the backbone of powertrain and chassis systems.
7. Which ISO standard defines CAN?
Answer: ISO 11898.
, Page 2 of 22
Rationale: This standard specifies the physical layer and data link layer for high-speed CAN.
8. What is the typical bit rate of a high-speed CAN network?
Answer: Up to 1 Mbit/s.
Rationale: HS-CAN (ISO 11898-2) is used for engine, ABS, and transmission control.
9. Name three other common vehicle communication protocols besides CAN.
Answer: LIN, FlexRay, MOST, Ethernet (any three).
Rationale: Different protocols optimize cost, speed, or fault tolerance.
D
O
N
O
T
C
O
PY
, Page 3 of 22
10. What does LIN stand for?
Answer: Local Interconnect Network.
Rationale: Low-cost, single-wire master-slave protocol for non-critical functions.
11. Which protocol is typically used for airbag and brake-by-wire systems?
Answer: FlexRay.
Rationale: FlexRay provides deterministic, fault-tolerant communication for safety-critical
applications.
12. What is the maximum speed of Automotive Ethernet (100BASE-T1)?
Answer: 100 Mbit/s (also Gigabit for 1000BASE-T1).
Rationale: Ethernet handles high-bandwidth needs like cameras and infotainment.
D
O
N
O
T
C
O
PY
