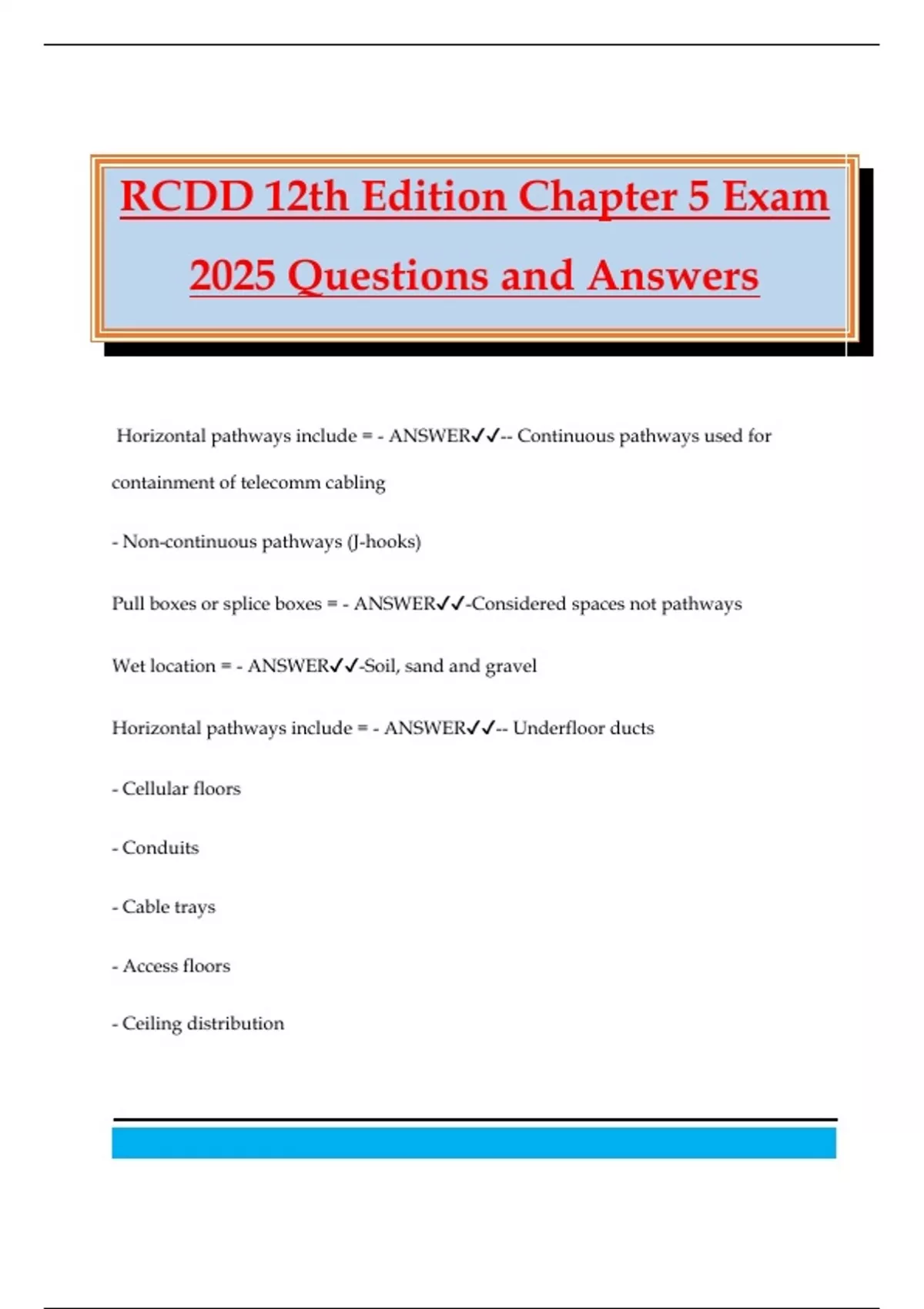

RCDD 12th Edition Chapter 5 Exam
2025 Questions and Answers
Horizontal pathways include = - ANSWER✔✔-- Continuous pathways used for
containment of telecomm cabling
- Non-continuous pathways (J-hooks)
Pull boxes or splice boxes = - ANSWER✔✔-Considered spaces not pathways
Wet location = - ANSWER✔✔-Soil, sand and gravel
Horizontal pathways include = - ANSWER✔✔-- Underfloor ducts
- Cellular floors
- Conduits
- Cable trays
- Access floors
- Ceiling distribution
, - Surface-mounted raceways
Usable floor space = - ANSWER✔✔-Hallways
BAS = - ANSWER✔✔-[250ft] squared floor space
Pathway capacity for BAS = - ANSWER✔✔-One cable for each system or coverage area.
WA = - ANSWER✔✔-[100ft] squared
BAS floor outlet for = - ANSWER✔✔-Every [250ft]
Copper 4-pair 100 ohm = - ANSWER✔✔-[0.35in]
Fiber Optical cable = - ANSWER✔✔-[0.18in]
During cable pulling, flexible conduit tends to = - ANSWER✔✔-- Creep
- Shift
- Cause sheath damage to the cable
If flexible conduit is to be used = - ANSWER✔✔-Size should be increased by one trade
size relative to the size of a rigid conduit.
Flexible conduit = - ANSWER✔✔-Not recommended
ITS designer should design and install conduits to = - ANSWER✔✔-- Achieve the best
direct route with no single bend greater than 90 degrees or an aggregate of bends in
access of 180 degrees between pull point boxes
