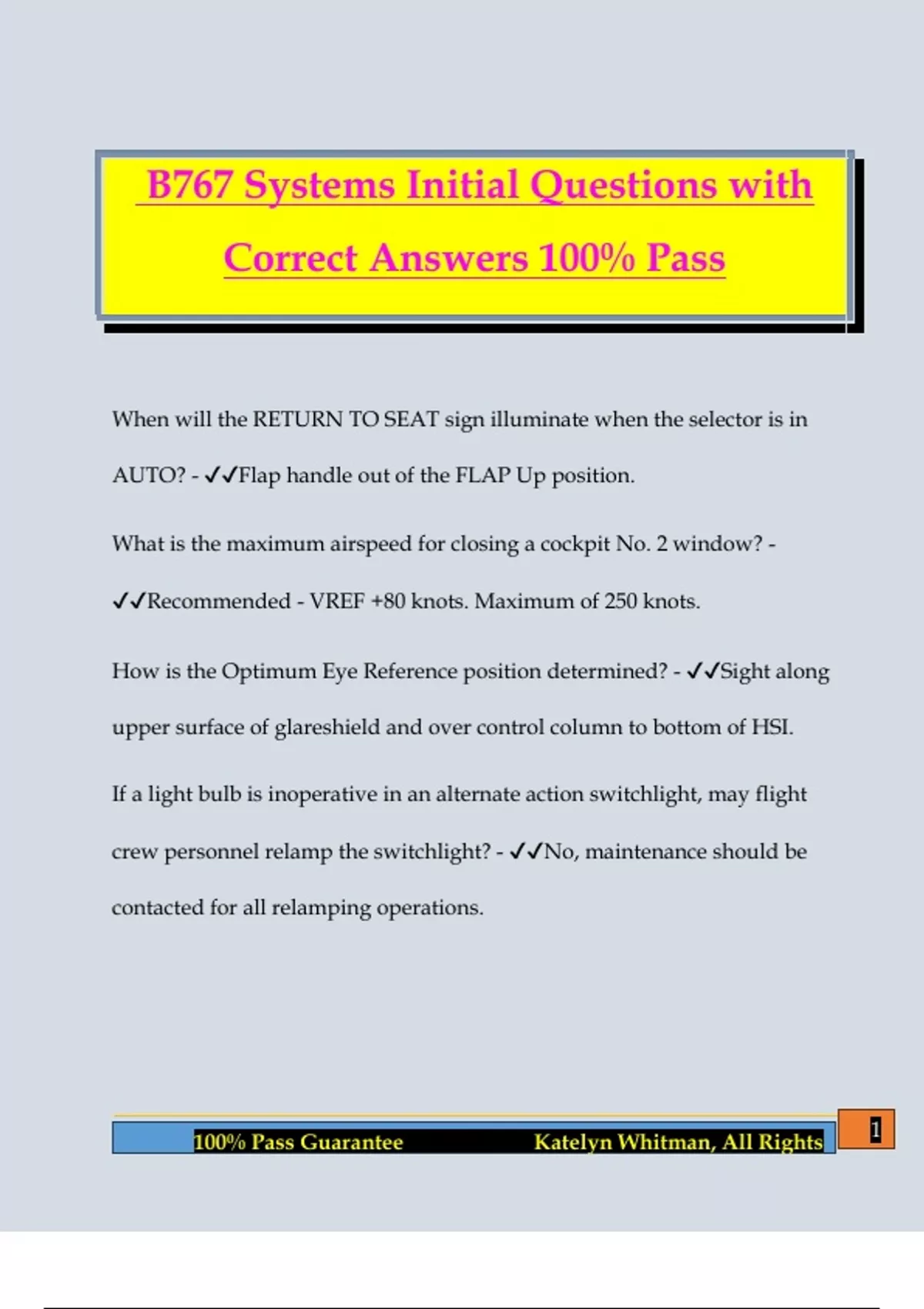

B767 Systems Initial Questions with
Correct Answers 100% Pass
When will the RETURN TO SEAT sign illuminate when the selector is in
AUTO? - ✔✔Flap handle out of the FLAP Up position.
What is the maximum airspeed for closing a cockpit No. 2 window? -
✔✔Recommended - VREF +80 knots. Maximum of 250 knots.
How is the Optimum Eye Reference position determined? - ✔✔Sight along
upper surface of glareshield and over control column to bottom of HSI.
If a light bulb is inoperative in an alternate action switchlight, may flight
crew personnel relamp the switchlight? - ✔✔No, maintenance should be
contacted for all relamping operations.
1
100% Pass Guarantee Katelyn Whitman, All Rights
,When the LT OVRD switch is selected ON, what is the result? -
✔✔Captain's, First Officer's, and center instrument panel floodlights,
forward and aft dome lights illuminate.
Which EICAS computer is normally controlling the primary and secondary
screens when the computer selector is in AUTO? - ✔✔Left.
How many events may be recorded manually with the EVENT RECORD
switch? - ✔✔Only the last recorded event.
How is a warning presented on the primary EICAS screen? - ✔✔Red text at
top of message list.
What condition will cause a siren to sound? - ✔✔Overspeed warning, cabin
pressure 10,000 feet, autopilot disconnect, takeoff config warning, landing
config warning, main cargo door not closed, or latched, or locked.
How can an advisory be differentiated from a caution? - ✔✔Both are amber
(yellow), cautions are left justified, and you will hear the beeper. Advisory
messages are indented one space from cautions on the primary EICAS
screen, there is no audio alert for an advisory level message.
2
100% Pass Guarantee Katelyn Whitman, All Rights
,What indicates more than one page of messages is available, and how
would the pilot page through the messages? - ✔✔The descriptor, Page 1
appears on the 11th line; Press Cancel switch to go to next page.
True or False? Warning EICAS messages are cancelled in the same manner
as the caution messages. - ✔✔False. The problem must be corrected to
remove warning messages.
During which portion of the flight is the fire bell and master warning light
inhibited? - ✔✔Takeoff from nose strut extension until 400' RA or 20
seconds later.
What indications show that a new status message is available? - ✔✔Cyan
STATUS cue appears on the upper left corner of the secondary screen.
When may status messages be erased? - ✔✔During preflight or prior to
takeoff.
What actions must the flight crew take if a status message reappears after
erasing it? - ✔✔Review MEL for relief.
3
100% Pass Guarantee Katelyn Whitman, All Rights
, What actions will cause the stick nudger to operate? - ✔✔Flaps zero and
aircraft pitch increased above stick shaker, or when testing both stall
warning systems using both switches simultaneously.
What happens if one EICAS CRT fails when the full up engine indications
are displayed? - ✔✔Engine indications display in compacted mode on the
operable CRT.
When the EICAS computer selector is in AUTO, what will happen if the
right EICAS computer fails? - ✔✔Nothing. The default computer is the left
one. A status message appears.
A takeoff configuration warning will indicate how? - ✔✔A siren, a
CONFIG light on the forward instrument panel, both master warning
lights on the glareshield, and a red message on EICAS.
When a takeoff configuration warning is activated, how may the warning
be removed or silenced? - ✔✔Abort the takeoff, then configure the aircraft
correctly.
4
100% Pass Guarantee Katelyn Whitman, All Rights
