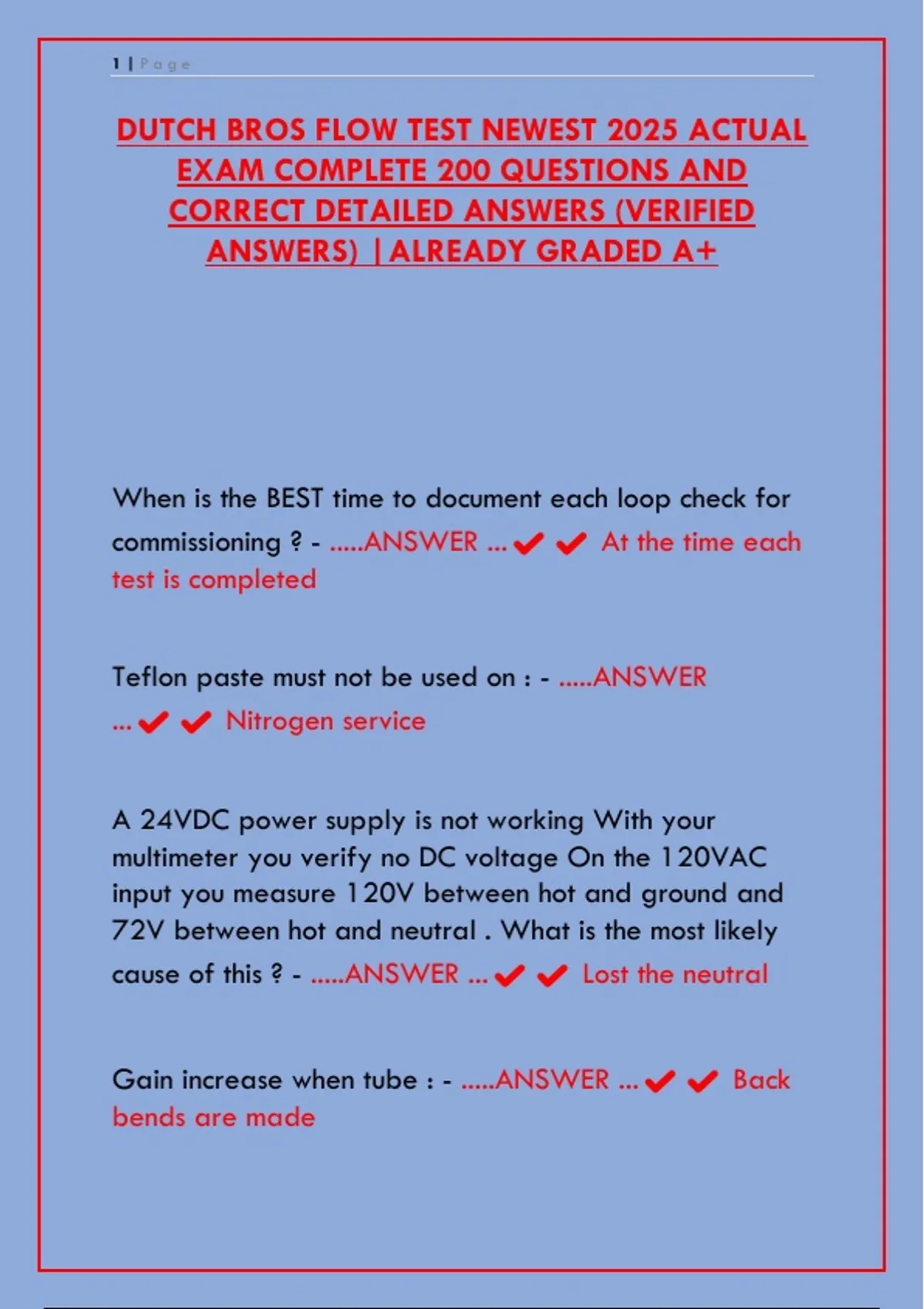

1|Page
DUTCH BROS FLOW TEST NEWEST 2025 ACTUAL
EXAM COMPLETE 200 QUESTIONS AND
CORRECT DETAILED ANSWERS (VERIFIED
ANSWERS) |ALREADY GRADED A+
When is the BEST time to document each loop check for
commissioning ? - .....ANSWER ...✔✔ At the time each
test is completed
Teflon paste must not be used on : - .....ANSWER
...✔✔ Nitrogen service
A 24VDC power supply is not working With your
multimeter you verify no DC voltage On the 120VAC
input you measure 120V between hot and ground and
72V between hot and neutral . What is the most likely
cause of this ? - .....ANSWER ...✔✔ Lost the neutral
Gain increase when tube : - .....ANSWER ...✔✔ Back
bends are made
,2|Page
A temperature measuring device that produces a
voltage as the temperature changes is a / an : -
.....ANSWER ...✔✔ Thermocouple
A pressure piping code is found in : - .....ANSWER
...✔✔ ANSI B 31.1
When marking tubing for cutting , the preferred method
is to : - .....ANSWER ...✔✔ Mark the tube with a
grease pencil
An example of direct measurement indicator is a : -
.....ANSWER ...✔✔ Pressure gauge
In loop checks , all of the following are performed
EXCEPT : - .....ANSWER ...✔✔ Tuning
If 75 volt DC potential is applied to a 25 ohm load , the
circuit current is : - .....ANSWER ...✔✔ 3.0 amps
A valve has linear - flow characteristics when the : -
.....ANSWER ...✔✔ Differential pressure corresponds
directly to the valve stem position
,3|Page
What is a circuit current if 45 VDC is applied to a 250
ohm load ? - .....ANSWER ...✔✔ 0.18 amp
13. In the figure , how many CR1 contacts are there ? -
.....ANSWER ...✔✔ 2
All of the following valves are used to regulate flow
EXCEPT - .....ANSWER ...✔✔ Gate
The value of the dynamic variable desired in a process
is the : - .....ANSWER ...✔✔ Set point
An acceptable tool for marking 360 degrees around the
outside of tubing is a : - .....ANSWER ...✔✔ Ferrule
What process variable is defined as the amount of force
exerted by a substance over a given unit of measure ? -
.....ANSWER ...✔✔ Pressure
Storage of steel wool can be considered a fire hazard
when stored around - .....ANSWER ...✔✔ Batteries
, 4|Page
The MINIMUM value of the measured process range is
considered to be : - .....ANSWER ...✔✔ 3psi and 4ma
A bubbler system is used to measure : - .....ANSWER
...✔✔ Specific gravity
To prevent travel damage to a limit switch , use a ( n ) .
- .....ANSWER ...✔✔ Mechanical stop
In a controller , automatic control describes : -
.....ANSWER ...✔✔ Thebfinal element as controlled by
the setpoint of the controller locally
When using soft rolled tubing , it must be unrolled and
straightened - .....ANSWER ...✔✔ By hand
Where would an instrument fitter find the PROPER
method to connect an instrument to a process tap ? -
.....ANSWER ...✔✔ On an installation detail
The part of a control valve that controls the plug
proportionally to the output of the controller is the : -
.....ANSWER ...✔✔ Valve positioner
