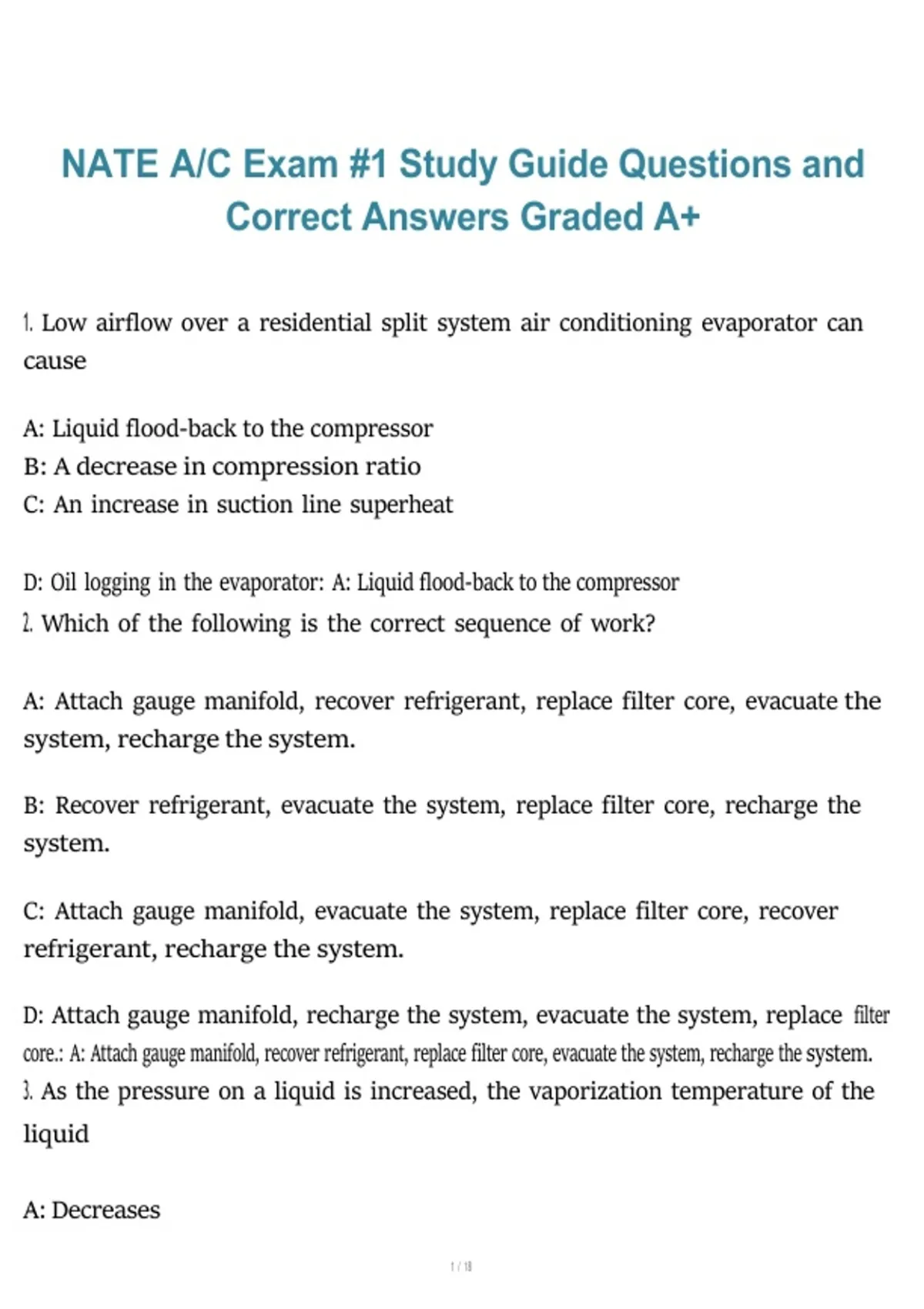

NATE A/C Exam #1 Study Guide Questions and
Correct Answers Graded A+
1. Low airflow over a residential split system air conditioning evaporator can
cause
A: Liquid flood-back to the compressor
B: A decrease in compression ratio
C: An increase in suction line superheat
D: Oil logging in the evaporator: A: Liquid flood-back to the compressor
2. Which of the following is the correct sequence of work?
A: Attach gauge manifold, recover refrigerant, replace filter core, evacuate the
system, recharge the system.
B: Recover refrigerant, evacuate the system, replace filter core, recharge the
system.
C: Attach gauge manifold, evacuate the system, replace filter core, recover
refrigerant, recharge the system.
D: Attach gauge manifold, recharge the system, evacuate the system, replace filter
core.: A: Attach gauge manifold, recover refrigerant, replace filter core, evacuate the system, recharge the system.
3. As the pressure on a liquid is increased, the vaporization temperature of the
liquid
A: Decreases
,B: Increases
C: Remains unchanged
D: Varies: B: Increases
, 4. An oil separator must be mounted
A: Level
B: Below the compressor crankcase
C: Above the compressor crankcase
D: In the suction line: A: Level
5. Which of the following metering devices controls evaporator pressure?
A: Thermostatic eẋpansion valve
B: Fiẋed orifice
C: Low side float
D: None of these: D: None of these
An automatic eẋpansion valve controls evaporator pressure.
6. The purpose of the eẋternal equalizer on a thermostatic eẋpansion valve is
A: To equalize evaporator pressure drop with respect to the TEV
B: To equalize the evaporator pressure drop
C: To help prevent liquid floodback
D: To allow the high side pressure to equalize to the low side when the
compressor cycles off: A: To equalize evaporator pressure drop with respect to the TEV
7. The higher the MERV rating of a filter-drier, the
A: More efficient the drier at absorbing moisture
