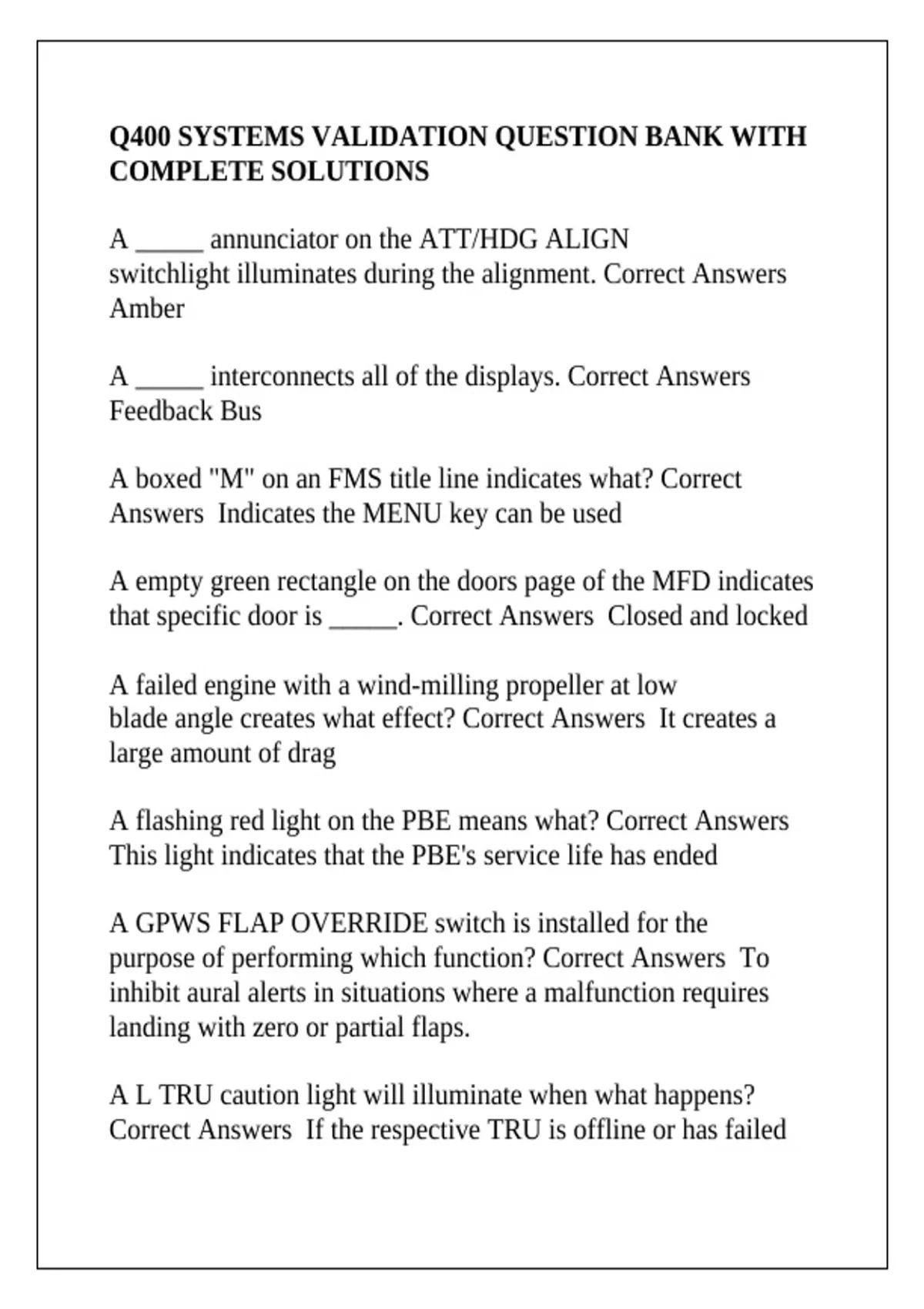

Q400 SYSTEMS VALIDATION QUESTION BANK WITH
COMPLETE SOLUTIONS
A _____ annunciator on the ATT/HDG ALIGN
switchlight illuminates during the alignment. Correct Answers
Amber
A _____ interconnects all of the displays. Correct Answers
Feedback Bus
A boxed "M" on an FMS title line indicates what? Correct
Answers Indicates the MENU key can be used
A empty green rectangle on the doors page of the MFD indicates
that specific door is _____. Correct Answers Closed and locked
A failed engine with a wind-milling propeller at low
blade angle creates what effect? Correct Answers It creates a
large amount of drag
A flashing red light on the PBE means what? Correct Answers
This light indicates that the PBE's service life has ended
A GPWS FLAP OVERRIDE switch is installed for the
purpose of performing which function? Correct Answers To
inhibit aural alerts in situations where a malfunction requires
landing with zero or partial flaps.
A L TRU caution light will illuminate when what happens?
Correct Answers If the respective TRU is offline or has failed
,A minimum quantity of _____% must be present in
each of the three hydraulic systems for aircraft dispatch. Correct
Answers 40% Minimum
A solid green light illuminated on the PBE means
what? Correct Answers indicates that the PBE is activated and
functioning properly
A TCAS Resolution Advisory (RA) is an immediate
threat within _____ seconds from the closest point of approach.
Correct Answers 25
A Traffic Advisory (TA) is issued by the TCAS when an
intruder aircraft is predicted to be within _____ seconds from
the closest point of approach. Correct Answers 40 seconds
Adjustable speed bugs include V1, V2, and _____. Correct
Answers VR
AFCS is approved for autopilot coupled approaches to
_____. Correct Answers CAT 1 Limits Only
After engine start, bleed air is primarily provided by
what sources? Correct Answers The left and right engines
provide the bleed air
After engine start, how many volts does the generator
provide? Correct Answers 28V DC power
,After the APU shuts down, how long does it take for the fire
extinguishing bottle to be discharged? Correct Answers 7
seconds
AHRS is able operate in one of two reduced performance
modes, _____ and _____, during non-normal operations. Correct
Answers -Basic mode
-DG mode
AIR CONDITIONING Correct Answers AIR
CONDITIONING
AIRCRAFT FAMILIARIZATION Correct Answers
AIRCRAFT FAMILIARIZATION
An up or down arrow is displayed to the right of the
TCAS aircraft symbol if the aircraft is in a climb or descent
greater than how many feet per minute? Correct Answers
Greater than 500 fpm
Anti-ice equipment is primarily powered by what
source? Correct Answers 115V AC
At 25,000 feet, what cabin altitude gives you 5.46 PSI
pressure differential? Correct Answers 8,000' Cabin altitude
At about what PSI will the #1 or #2 ENG OIL PRESS
warning light illuminate? Correct Answers When pressure is
between 40 and 44 PSI
At decreasing airspeeds less than _____ kts., both
, outboard spoilers are active. Correct Answers 165knots
At what air temperature must the air be before the
engine heater energizes? Correct Answers Below 15C
At what altitude does the cabin press warning light
illuminate? Correct Answers 9,800' Cabin altitude
At what point will bus shedding begin? Correct Answers After
more than 2 DC power sources fail
AUTOFLIGHT Correct Answers AUTOFLIGHT
Autopilot (coupled) and Flight Director (manual)
approaches are approved from a nominal glideslope angle of
_____ to maximum of _____. Correct Answers 2.5 to 4 degrees
glideslope angle
Autopilot coupled approaches are approved for all flap
configurations except _____. Correct Answers 35 Degree flaps
with 1 engine inoperative
Autopilot coupled approaches have been demonstrated
in crosswind components up to _____ kts. Correct Answers 18
KTS
Autopilot shall be disengaged at or above _____ feet
AFE for HGS approaches flown in AIII mode, approaches flown
with an inoperative engine, or approaches flown with Flaps 0
degrees. Correct Answers 1,000' AFE
