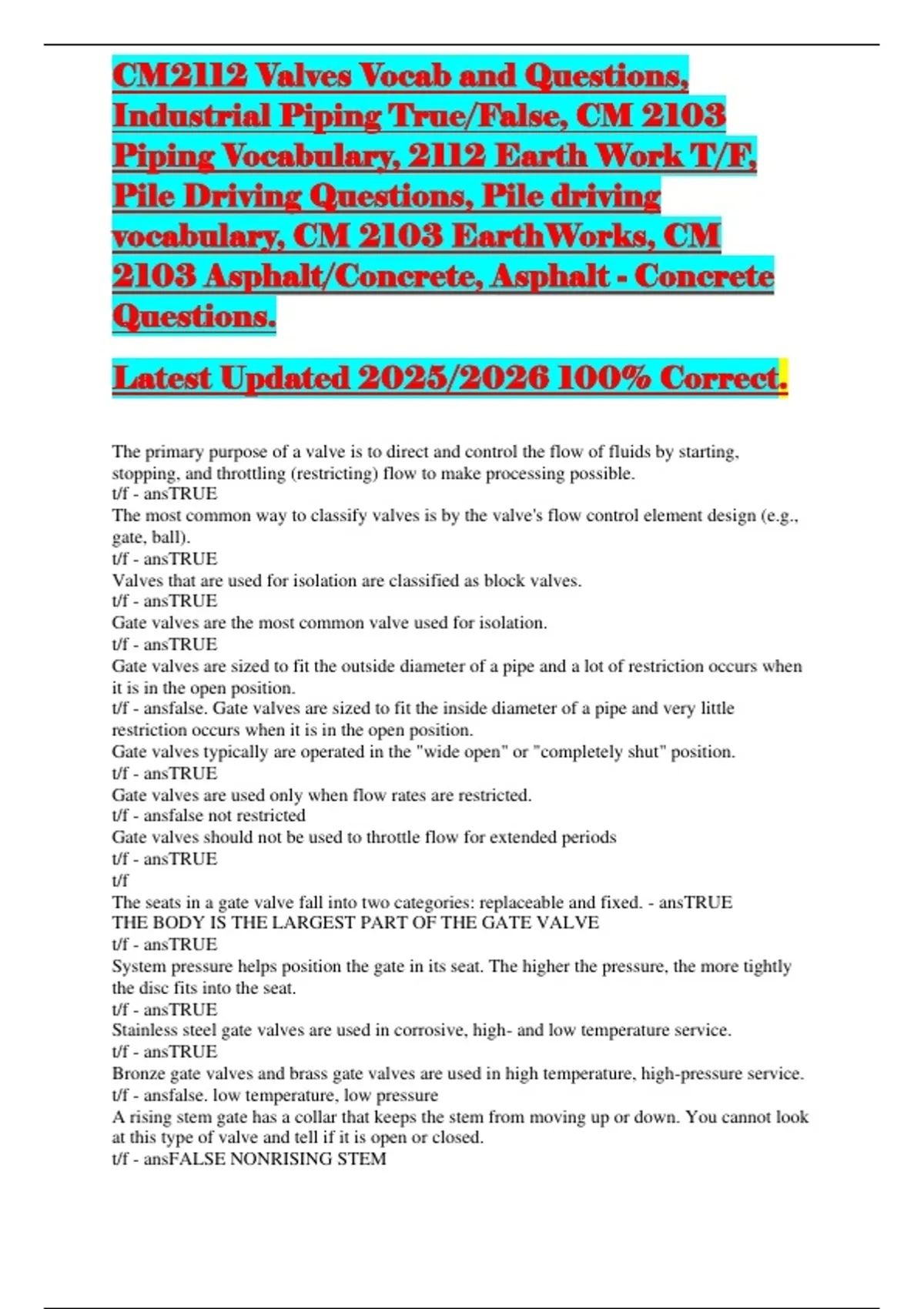

CM2112 Valves Vocab and Questions,
Industrial Piping True/False, CM 2103
Piping Vocabulary, 2112 Earth Work T/F,
Pile Driving Questions, Pile driving
vocabulary, CM 2103 EarthWorks, CM
2103 Asphalt/Concrete, Asphalt - Concrete
Questions.
Latest Updated 2025/2026 100% Correct.
The primary purpose of a valve is to direct and control the flow of fluids by starting,
stopping, and throttling (restricting) flow to make processing possible.
t/f - ansTRUE
The most common way to classify valves is by the valve's flow control element design (e.g.,
gate, ball).
t/f - ansTRUE
Valves that are used for isolation are classified as block valves.
t/f - ansTRUE
Gate valves are the most common valve used for isolation.
t/f - ansTRUE
Gate valves are sized to fit the outside diameter of a pipe and a lot of restriction occurs when
it is in the open position.
t/f - ansfalse. Gate valves are sized to fit the inside diameter of a pipe and very little
restriction occurs when it is in the open position.
Gate valves typically are operated in the "wide open" or "completely shut" position.
t/f - ansTRUE
Gate valves are used only when flow rates are restricted.
t/f - ansfalse not restricted
Gate valves should not be used to throttle flow for extended periods
t/f - ansTRUE
t/f
The seats in a gate valve fall into two categories: replaceable and fixed. - ansTRUE
THE BODY IS THE LARGEST PART OF THE GATE VALVE
t/f - ansTRUE
System pressure helps position the gate in its seat. The higher the pressure, the more tightly
the disc fits into the seat.
t/f - ansTRUE
Stainless steel gate valves are used in corrosive, high- and low temperature service.
t/f - ansTRUE
Bronze gate valves and brass gate valves are used in high temperature, high-pressure service.
t/f - ansfalse. low temperature, low pressure
A rising stem gate has a collar that keeps the stem from moving up or down. You cannot look
at this type of valve and tell if it is open or closed.
t/f - ansFALSE NONRISING STEM
,CM2112 Valves Vocab and Questions,
Industrial Piping True/False, CM 2103
Piping Vocabulary, 2112 Earth Work T/F,
Pile Driving Questions, Pile driving
vocabulary, CM 2103 EarthWorks, CM
2103 Asphalt/Concrete, Asphalt - Concrete
Questions.
Latest Updated 2025/2026 100% Correct.
Temperature changes, closing a valve too quickly, and pipe expansion can cause a valve to
warp.
t/f - ansTRUE
Globe valves are most commonly used for throttling service.
t/f - ansTRUE
The composition disc of a globe valve is not renewable.
t/f - ansfalse,it is renewable
When compared to gate valves, globe valves have a much greater pressure drop across the
valve.
t/f - ansTRUE
Globe valves are designed to be installed in high-use areas.
t/f - ansTRUE
Like the gate and globe valves, a ball valve will lift the flow-control device out of the process
stream.
t/f - ansFALSE.
Unlike the gate and globe valves, a ball valve will not lift the flow-control device out of the
process stream.
Ball valves should be used for throttling service.
t/f - ansfalse should not
Ball valves do not generally seal as well as globe valves in high pressure service.
t/f - ansTRUE
The ball check is as durable as a lift check and a swing check
t/f - ansfalse
The ball check is as durable as a lift check and more durable than a swing check
Butterfly valves are used for throttling however, it should be noted that they have non
uniform flow characteristics.
t/f - ansTRUE
Plug valves provide very little restriction to flow and can be opened 100% with a one-quarter
turn on the valve handle.
t/f - ansTRUE
Diaphragm valves typically are used in low-pressure applications and require packing
t/f - ansFALSE
A relief valve is designed to open at a predetermined pressure.
t/f - ansTRUE
,CM2112 Valves Vocab and Questions,
Industrial Piping True/False, CM 2103
Piping Vocabulary, 2112 Earth Work T/F,
Pile Driving Questions, Pile driving
vocabulary, CM 2103 EarthWorks, CM
2103 Asphalt/Concrete, Asphalt - Concrete
Questions.
Latest Updated 2025/2026 100% Correct.
The relief valves will reseat as soon as the pressure drops below the relief pressure and the
spring tension is adjustable.
t/f - ansTRUE
Relief valves are designed to lift slowly, whereas safety valves tend to pop off.
t/f - ansTRUE
All safety valves reset after lifting.
t/f - ansFALSE
A control loop usually consists of a sensing device, a transmitter, a controller, a transducer,
and an automatic valve.
t/f - ansTRUE
The most common type of automated valve is a globe valve.
t/f - ansTRUE
Actuators come in three basic designs: pneumatically (air) operated, electrically operated, and
hydraulically operated.
t/f - ansTRUE
Pneumatically operated actuators are the most common type of actuator.
t/f - ansTRUE
Accumulation - ansthe difference between the initial lift-off pressure and the pressure of the
fully open position for a relief valve.
Actuator - ans- a device that controls the position of the flow-control element on a control
valve by automatically adjusting the position of the valve stem.
Angle valve - ans- a valve that operates by admitting fluid flow to the gate or plug and
redirecting it 90° out the discharge port.
Antiseize compound - anslubricant used on exposed valve stem threads.
Automatic valve - ansalso known as self-actuating, these valves perform their specific
function without external assistance.
Ball valve - ansA valve named for the ball-shaped, movable element in the center of the
valve.
Block valve - ansany valve that is intended to block flow; also called an isolation valve. The
term generally refers to gate valves.
Bonnet - ansa bell-shaped dome mounted on the body of a valve, which provides a housing
for the flow control element when lifted out of the flow.
Bridgewall markings - ansmanufacturer information on the body of a valve.
Bushing - ansan adapter threaded to permit joining of pipes with different diameters.
, CM2112 Valves Vocab and Questions,
Industrial Piping True/False, CM 2103
Piping Vocabulary, 2112 Earth Work T/F,
Pile Driving Questions, Pile driving
vocabulary, CM 2103 EarthWorks, CM
2103 Asphalt/Concrete, Asphalt - Concrete
Questions.
Latest Updated 2025/2026 100% Correct.
Butterfly valve - ans- valve characterized by their disc-shaped flow-control element, which
pivots from its center.
Check valves - ansmechanical valves that prevent reverse flow in piping.
Compressor (diaphragm valve) - ansdome shaped element attached to the valve stem which
presses on the flexible diaphragm to restrict flow.
Control loop - ansa collection of instruments that work together to automatically control a
process; usually consists of a sensing device, a transmitter, a controller, a transducer, and an
automatic valve.
Control valves - ansautomated valves used to regulate and throttle flow; typically provide the
final control element of a control loop.
Controller - ansthe equipment concerned with controlling the operation of an electrical
device.
Diaphragm - ans- something flexible that serves as a barrier.
Diaphragm valve - ansa valve that uses a flexible membrane to regulate flow.
Disc - ans- a device made of metal or ceramic that fits snugly in the seat of a valve to control
flow
Flange - ansa device used to connect (bolt) piping to industrial equipment.
Flow-control element - ansthe part of a valve that regulates flow; that is, the gate or the disc.
Fluid - ansliquid and gas forms of matter (not solids).
Gate - ans- the flow-control element of a gate valve.
Gate valve - ans- a valve with a movable metal gate in the path of a process flow
Globe valve - - ans- a device that places a disc in the path of a process flow.
Handwheel - ansattachment to the valve stem used to control the position of the flow-control
element of a valve.
Isolation valvE - ansa valve that completely obstructs the path of a fluid and isolates a part of
a system.
Multiport valve - ansvalve with multiple inlets and/or outlets in specialized piping systems to
divert flow direction, allowing fluid sources to be switched.
Needle valve - - ansa type of globe valve that has a needle-shaped element that fits snugly
into the seat.
Nonrising stem - ansa type of valve mechanism that has a collar that keeps the stem from
moving up and down. You cannot tell if this type of valve is open or closed by looking at it.
Packing - ansa specially designed material used to stop fluid from entering or escaping;
packed around the shaft (stem) of a valve, or shaft of a pump
Packing gland - ansa mechanical device that contains and compresses packing.
