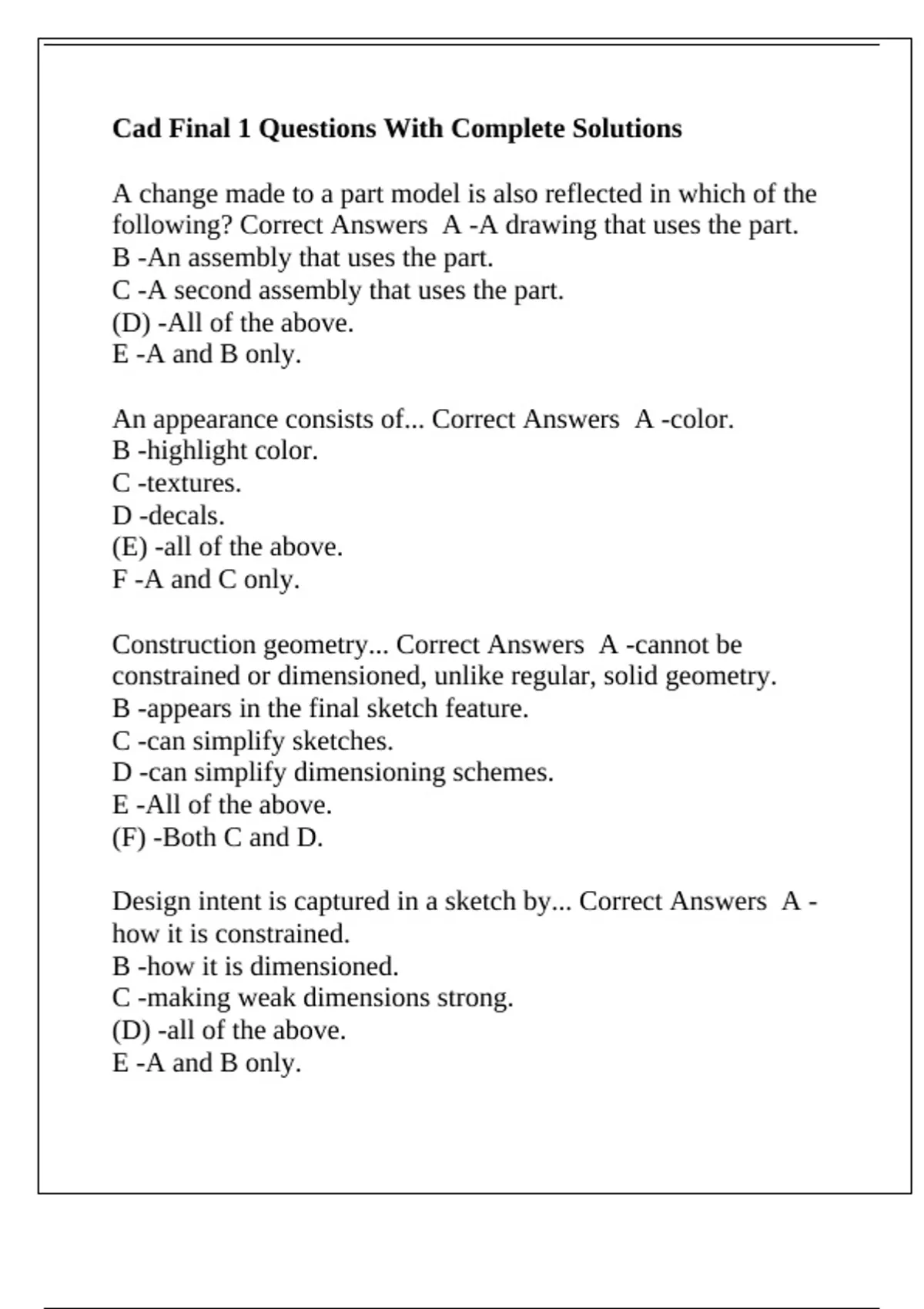

Cad Final 1 Questions With Complete Solutions
A change made to a part model is also reflected in which of the
following? Correct Answers A -A drawing that uses the part.
B -An assembly that uses the part.
C -A second assembly that uses the part.
(D) -All of the above.
E -A and B only.
An appearance consists of... Correct Answers A -color.
B -highlight color.
C -textures.
D -decals.
(E) -all of the above.
F -A and C only.
Construction geometry... Correct Answers A -cannot be
constrained or dimensioned, unlike regular, solid geometry.
B -appears in the final sketch feature.
C -can simplify sketches.
D -can simplify dimensioning schemes.
E -All of the above.
(F) -Both C and D.
Design intent is captured in a sketch by... Correct Answers A -
how it is constrained.
B -how it is dimensioned.
C -making weak dimensions strong.
(D) -all of the above.
E -A and B only.
, For which feature type is the Thicken Sketch option available?
Correct Answers A -Extrude features
B -Revolve features
C -Blend features
D -Sweep features
(E) -All of the above
F -None of the above
If the placement (primary) reference for a hole is a cylindrical
surface, you can only create which type of hole? Correct
Answers Radial hole
Pre-selected geometry displays in which color? Correct Answers
Orange
Solid models contain properties such as... Correct Answers A -
mass.
B -volume.
C -center of gravity.
(D) -all of the above.
The display options available in Sketcher are... Correct Answers
dimensions, constraints, grid, section vertices, and lock status.
The Folder Browser is divided into... Correct Answers A -In
Session.
B -Common Folders.
C -a Folder Tree.
D -all of the above.
(E) -B and C only.
A change made to a part model is also reflected in which of the
following? Correct Answers A -A drawing that uses the part.
B -An assembly that uses the part.
C -A second assembly that uses the part.
(D) -All of the above.
E -A and B only.
An appearance consists of... Correct Answers A -color.
B -highlight color.
C -textures.
D -decals.
(E) -all of the above.
F -A and C only.
Construction geometry... Correct Answers A -cannot be
constrained or dimensioned, unlike regular, solid geometry.
B -appears in the final sketch feature.
C -can simplify sketches.
D -can simplify dimensioning schemes.
E -All of the above.
(F) -Both C and D.
Design intent is captured in a sketch by... Correct Answers A -
how it is constrained.
B -how it is dimensioned.
C -making weak dimensions strong.
(D) -all of the above.
E -A and B only.
, For which feature type is the Thicken Sketch option available?
Correct Answers A -Extrude features
B -Revolve features
C -Blend features
D -Sweep features
(E) -All of the above
F -None of the above
If the placement (primary) reference for a hole is a cylindrical
surface, you can only create which type of hole? Correct
Answers Radial hole
Pre-selected geometry displays in which color? Correct Answers
Orange
Solid models contain properties such as... Correct Answers A -
mass.
B -volume.
C -center of gravity.
(D) -all of the above.
The display options available in Sketcher are... Correct Answers
dimensions, constraints, grid, section vertices, and lock status.
The Folder Browser is divided into... Correct Answers A -In
Session.
B -Common Folders.
C -a Folder Tree.
D -all of the above.
(E) -B and C only.
