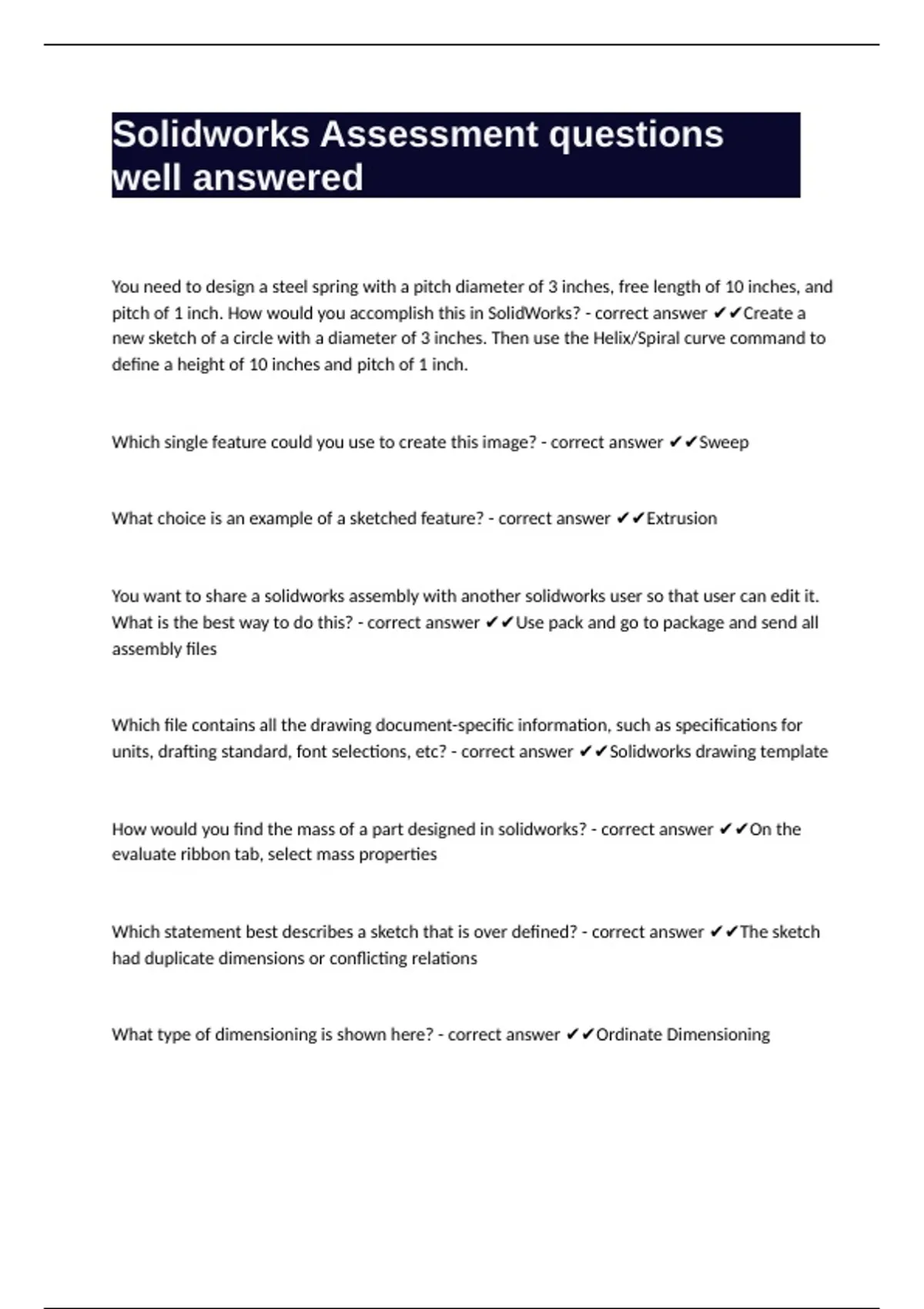

Solidworks Assessment questions
well answered
You need to design a steel spring with a pitch diameter of 3 inches, free length of 10 inches, and
pitch of 1 inch. How would you accomplish this in SolidWorks? - correct answer ✔✔Create a
new sketch of a circle with a diameter of 3 inches. Then use the Helix/Spiral curve command to
define a height of 10 inches and pitch of 1 inch.
Which single feature could you use to create this image? - correct answer ✔✔Sweep
What choice is an example of a sketched feature? - correct answer ✔✔Extrusion
You want to share a solidworks assembly with another solidworks user so that user can edit it.
What is the best way to do this? - correct answer ✔✔Use pack and go to package and send all
assembly files
Which file contains all the drawing document-specific information, such as specifications for
units, drafting standard, font selections, etc? - correct answer ✔✔Solidworks drawing template
How would you find the mass of a part designed in solidworks? - correct answer ✔✔On the
evaluate ribbon tab, select mass properties
Which statement best describes a sketch that is over defined? - correct answer ✔✔The sketch
had duplicate dimensions or conflicting relations
What type of dimensioning is shown here? - correct answer ✔✔Ordinate Dimensioning
well answered
You need to design a steel spring with a pitch diameter of 3 inches, free length of 10 inches, and
pitch of 1 inch. How would you accomplish this in SolidWorks? - correct answer ✔✔Create a
new sketch of a circle with a diameter of 3 inches. Then use the Helix/Spiral curve command to
define a height of 10 inches and pitch of 1 inch.
Which single feature could you use to create this image? - correct answer ✔✔Sweep
What choice is an example of a sketched feature? - correct answer ✔✔Extrusion
You want to share a solidworks assembly with another solidworks user so that user can edit it.
What is the best way to do this? - correct answer ✔✔Use pack and go to package and send all
assembly files
Which file contains all the drawing document-specific information, such as specifications for
units, drafting standard, font selections, etc? - correct answer ✔✔Solidworks drawing template
How would you find the mass of a part designed in solidworks? - correct answer ✔✔On the
evaluate ribbon tab, select mass properties
Which statement best describes a sketch that is over defined? - correct answer ✔✔The sketch
had duplicate dimensions or conflicting relations
What type of dimensioning is shown here? - correct answer ✔✔Ordinate Dimensioning
