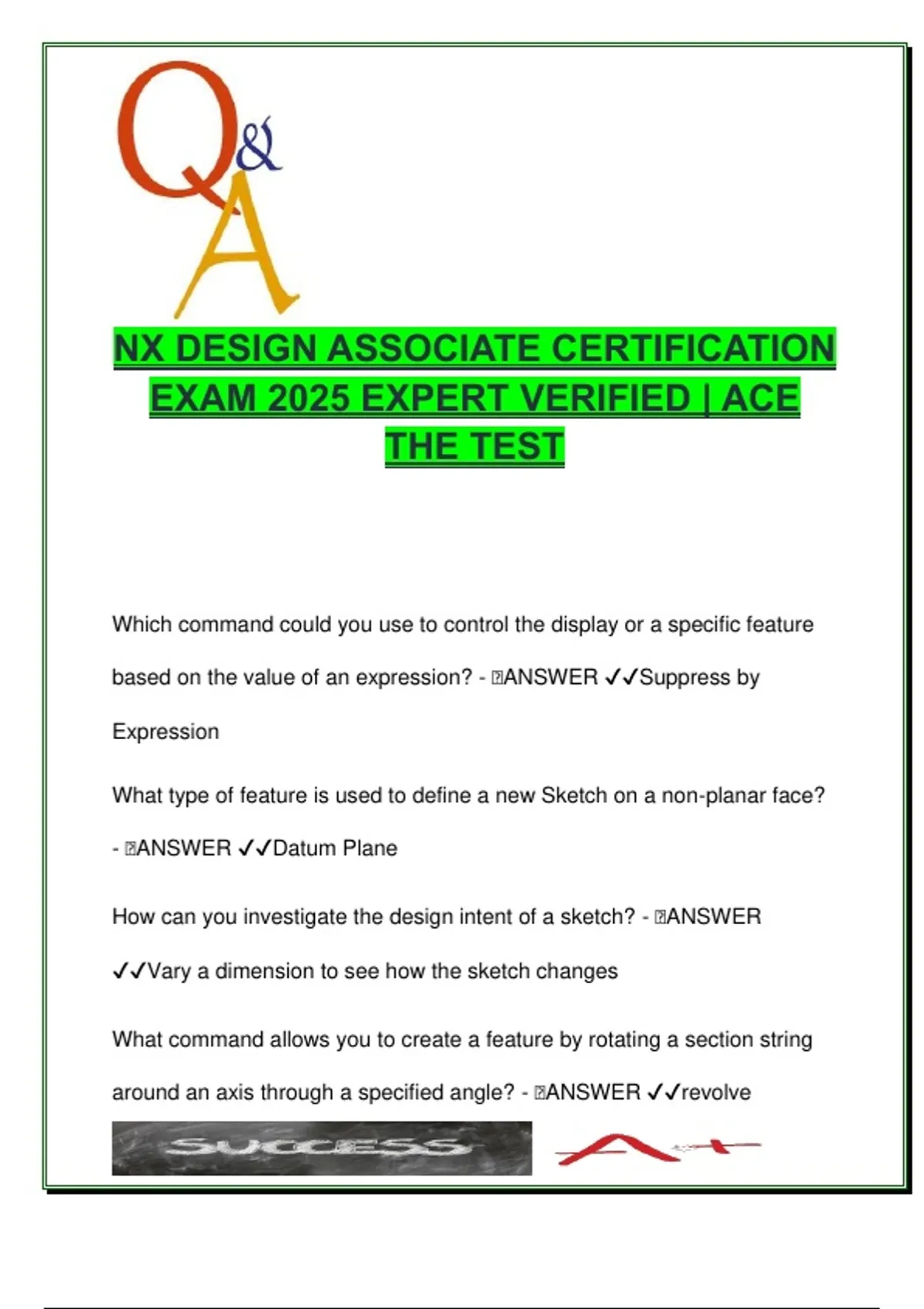

NX DESIGN ASSOCIATE CERTIFICATION
EXAM 2025 EXPERT VERIFIED | ACE
THE TEST
Which command could you use to control the display or a specific feature
based on the value of an expression? - 🧠ANSWER ✔✔Suppress by
Expression
What type of feature is used to define a new Sketch on a non-planar face?
- 🧠ANSWER ✔✔Datum Plane
How can you investigate the design intent of a sketch? - 🧠ANSWER
✔✔Vary a dimension to see how the sketch changes
What command allows you to create a feature by rotating a section string
around an axis through a specified angle? - 🧠ANSWER ✔✔revolve
,To create a datum plane at an angle to a face, what would you select? -
🧠ANSWER ✔✔Select a face and datum axis or straight edge
Which of the following best describes an advantage of creating an edge
blend feature instead of creating fillet curves inside a sketch? - 🧠ANSWER
✔✔Can be edited, suppressed, or deleted without affecting the sketch
Which one of these are not a type of hole you can create? - 🧠ANSWER
✔✔external threads
Which of the following cannot be selected to create Edge Blend features? -
🧠ANSWER ✔✔sketch curves
What type of chamfer cannot be created? - 🧠ANSWER ✔✔two angle
What is an advantage of using a Hole feature instead of an Extrude? -
🧠ANSWER ✔✔A Hole feature can be easily edited to change the form
You create a threaded hole in a lug for a specific size fastener. The
resulting Hole feature includes: - 🧠ANSWER ✔✔A single feature The hole,
threads, and the entry and exit chamfers
Why would you use a separate Thread command? - 🧠ANSWER ✔✔To
create external threads
, You can create a chamfer feature or chamfer curves inside a sketch. What
is a potential advantage of creating chamfers in a sketch? - 🧠ANSWER
✔✔Your model history will have fewer features
Why would you want to deactivate the Timestamp Order option in the Part
Navigator? - 🧠ANSWER ✔✔To view solid bodies in the model
When selecting a feature in the Part Navigator, what do the colors of the
text above and below the selected Feature mean? - 🧠ANSWER ✔✔The
Parent- and Child relationships
When selecting a feature in the Part Navigator what color does the text of
its children features then become? - 🧠ANSWER ✔✔blue
In the Part Navigator how can you list the parameters, expressions, and
values of a feature without using the Show Dimensions command? -
🧠ANSWER ✔✔Open the Details Group
After using the Show Dimensions command on a sketch how do you erase
the temporarily-displayed dimensions from the graphics window? -
🧠ANSWER ✔✔Use the Refresh command
By default, what happens to the child features when their parent feature is
deleted? - 🧠ANSWER ✔✔The child features are automatically deleted
3
