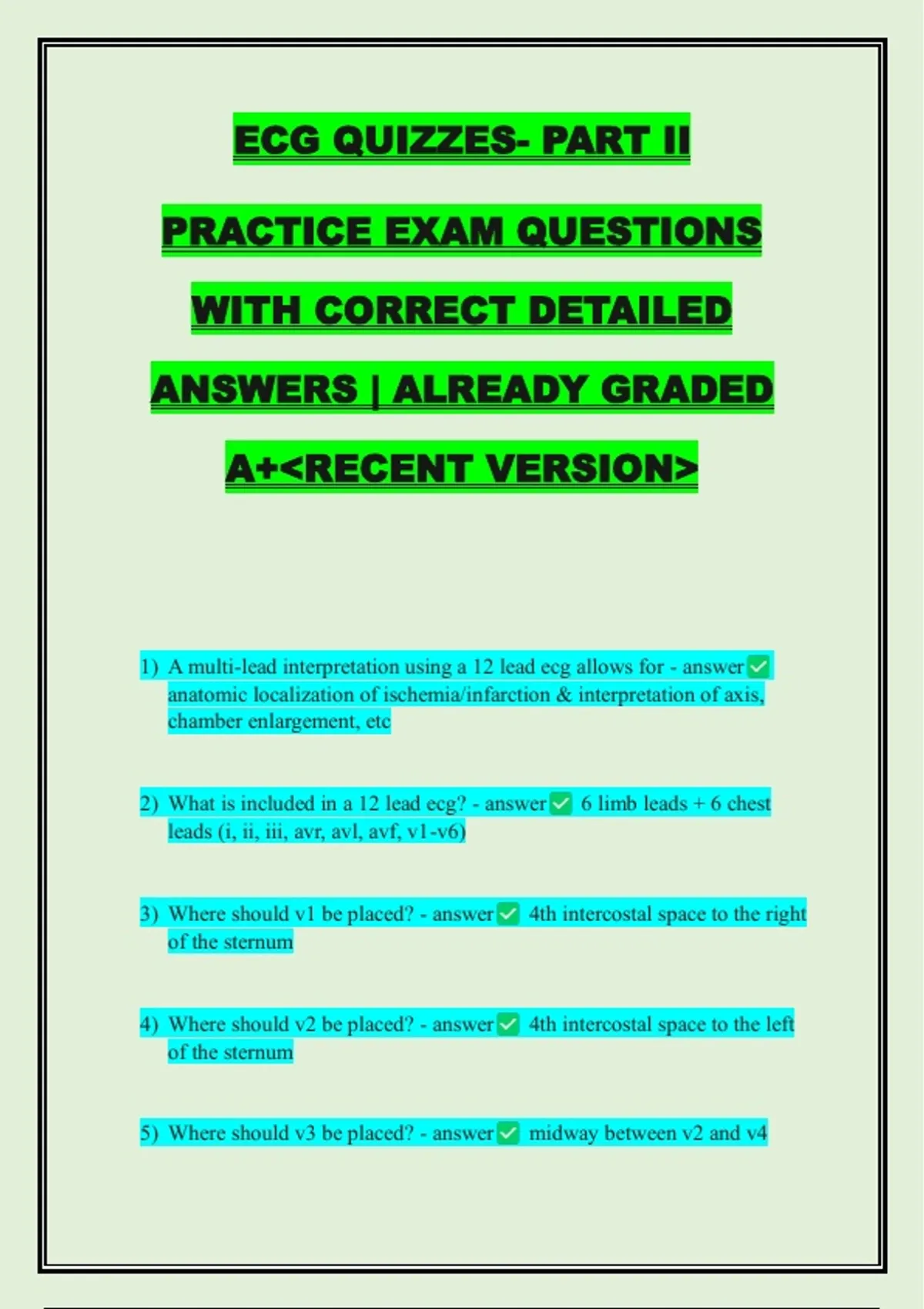

PRACTICE EXAM QUESTIONS
WITH CORRECT DETAILED
ANSWERS | ALREADY GRADED
A+<RECENT VERSION>
1) A multi-lead interpretation using a 12 lead ecg allows for - answer
anatomic localization of ischemia/infarction & interpretation of axis,
chamber enlargement, etc
2) What is included in a 12 lead ecg? - answer 6 limb leads + 6 chest
leads (i, ii, iii, avr, avl, avf, v1-v6)
3) Where should v1 be placed? - answer 4th intercostal space to the right
of the sternum
4) Where should v2 be placed? - answer 4th intercostal space to the left
of the sternum
5) Where should v3 be placed? - answer midway between v2 and v4
,6) Where should v4 be placed? - answer 5th intercostal space,
midclavicular line on the left
7) Where should v5 be placed? - answer left anterior axillary line, level
with v4
8) Where should v6 be placed? - answer left side of the chest, fifth
intercostal space, mid-axillary line, level with v5
9) The anterior wall and septum often infarct together because both are -
answer supplied by the lad, so antero-septal mi would show in leads
v1-v4
10) What does cardiac axis represent? - answer the general
direction of depolarization from one point to another in the heart
11) The normal axis on an ecg is between - answer 1. -30 degrees
and +90 degrees
2. Positive lead i
3. Positive lead avf
12) Depolarization waves move from the - answer right atrium to
left ventricle
13) Left axis deviation on an ecg = - answer 1. Qrs axis less than -
30 degrees
2. Positive lead i
3. Negative lead avf
4. Negative lead ii
,14) Right axis deviation on an ecg = - answer 1. Qrs axis greater
than +90 degrees
2. Negative in lead i
3. Positive in avf
15) Extreme axis deviation on ecg = - answer 1. Qrs axis between -
90 degrees and +180 degrees (aka northwest axis)
2. Negative lead i
3. Negative avf
16) The most effective way to look at axis is by looking at leads -
answer i and avf
17) If there is a possible lad, you need to look at lead - answer ii
18) What can extreme axis deviation caused by? - answer
ventricular rhythms (vt, ivr, ventricular ectopy), hyperkalemia, severe rvh
19) What can indicate atrial enlargement? - answer abnormal p
wave morphology
20) Right atrial enlargement = - answer p pulmonale
21) Right atrial enlargement is primary caused by - answer
pulmonary htn
22) Left atrial enlargement = - answer p mitrale
23) What can left atrial enlargement indicate if seen in isolation? -
answer mitral stenosis
, 24) What can left atrial enlargement indicate if seen with lvh? -
answer systemic htn and/or aortic stenosis
25) In which leads should you look for rae and lae? - answer lead ii,
lead v1
26) What is a bifid p wave in lead ii? - answer left atrial
enlargement (p waves appears notched)
27) What does right atrial enlargement look like on ecg - draw it out. -
answer
28) What does left atrial enlargement look like on ecg - draw it out. -
answer
29) What is the ventricular enlargement diagnostic criteria called -
answer sokolov-lyon criteria
30) Left ventricular enlargement (lvh) diagnostic criteria - answer
1. S wave depth in v1 + tallest r wave height in v5-v6 has to be > 35mm
to be considered lvh
2. Voltage criteria must be accompanied by non-voltage criteria to be
considered diagnostic of lvh
31) Right ventricular hypertrophy (rvh) diagnostic criteria - answer
1. Right axis deviation of +110 degrees or more
2. Dominant r wave in v1 (>7mm tall or r/s ratio > 1)
3. Dominant s wave in v5 or v6 (>7mm deep or r/s ratio < 1)
4. Qrs duration < 120 ms
