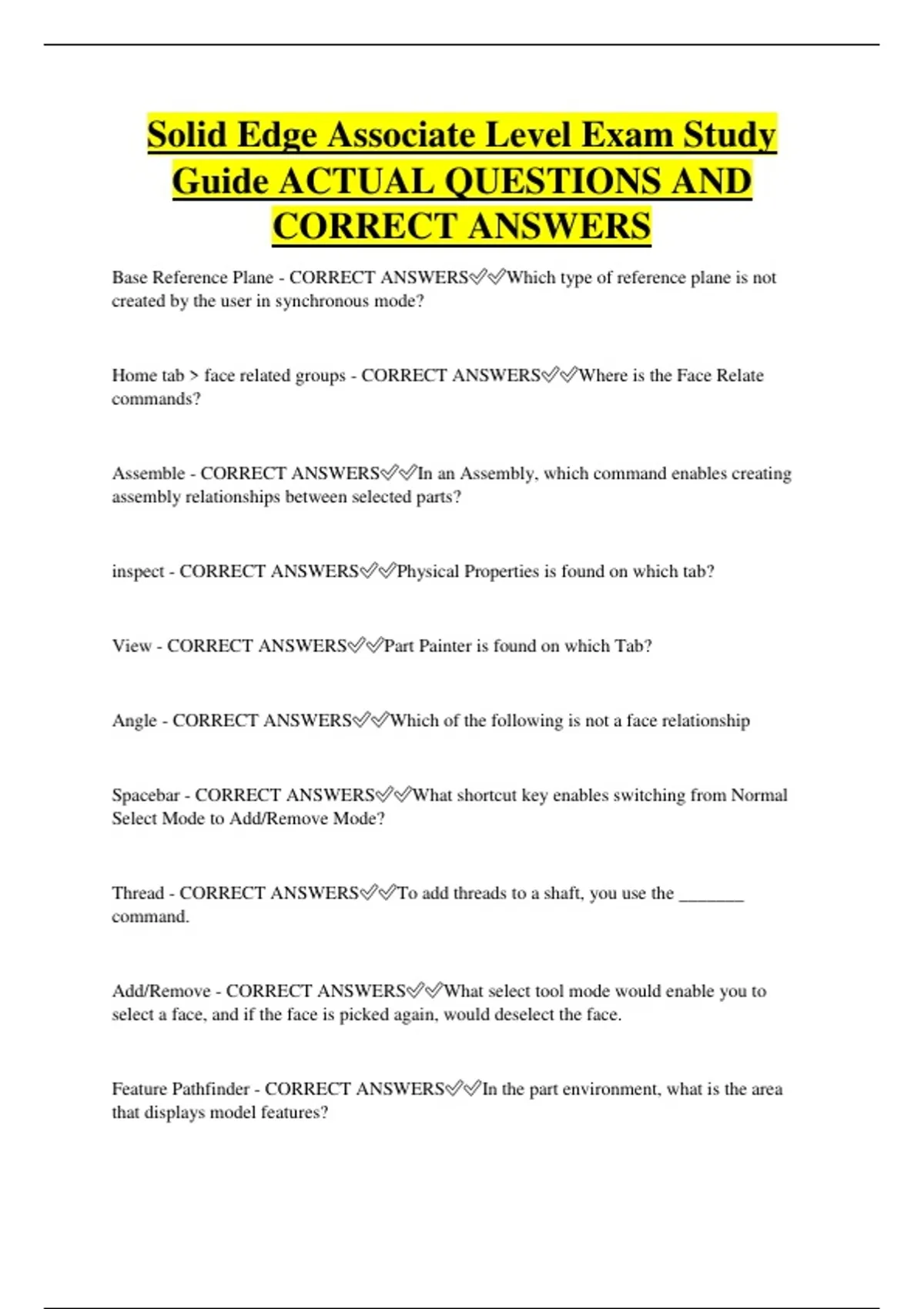

Solid Edge Associate Level Exam Study
Guide ACTUAL QUESTIONS AND
CORRECT ANSWERS
Base Reference Plane - CORRECT ANSWERS✅✅Which type of reference plane is not
created by the user in synchronous mode?
Home tab > face related groups - CORRECT ANSWERS✅✅Where is the Face Relate
commands?
Assemble - CORRECT ANSWERS✅✅In an Assembly, which command enables creating
assembly relationships between selected parts?
inspect - CORRECT ANSWERS✅✅Physical Properties is found on which tab?
View - CORRECT ANSWERS✅✅Part Painter is found on which Tab?
Angle - CORRECT ANSWERS✅✅Which of the following is not a face relationship
Spacebar - CORRECT ANSWERS✅✅What shortcut key enables switching from Normal
Select Mode to Add/Remove Mode?
Thread - CORRECT ANSWERS✅✅To add threads to a shaft, you use the _______
command.
Add/Remove - CORRECT ANSWERS✅✅What select tool mode would enable you to
select a face, and if the face is picked again, would deselect the face.
Feature Pathfinder - CORRECT ANSWERS✅✅In the part environment, what is the area
that displays model features?
, click once for a start point and click once for an endpoint - CORRECT ANSWERS✅✅To
sketch a line, you must...
Collinear - CORRECT ANSWERS✅✅Which 2D constraint could be used to align two
linear elements?
Horizontal/Vertical - CORRECT ANSWERS✅✅Which Relate command would you use to
align the center point of the circle with the midpoints of the lines, putting it directly in the
middle of the rectangle?
Select a sketch command from the drawing group. - CORRECT ANSWERS✅✅What is the
first step in creating a sketch in synchronous mode?
Click escape to unlock the plane - CORRECT ANSWERS✅✅Which if the following is not
a method to unlock the sketch plane?
Move and Copy - CORRECT ANSWERS✅✅This command is used for which operation or
operations? (Yellow Plus)
Trim Corner - CORRECT ANSWERS✅✅The single operation used to intersect the two
lines is
Click on a face or reference plane, and then click the Lock icon - CORRECT
ANSWERS✅✅Which of the following is not a method to lock to a sketch plane?
Chamfer - CORRECT ANSWERS✅✅What feature is used to remove sharp edges in a 3D
part model, typically for safety?
STL - CORRECT ANSWERS✅✅What type of file do I need to export if I want to print the
model with a 3D printer?
Nothing, they will not change - CORRECT ANSWERS✅✅When you copy a group of faces
or features, what happens to the original faces?
