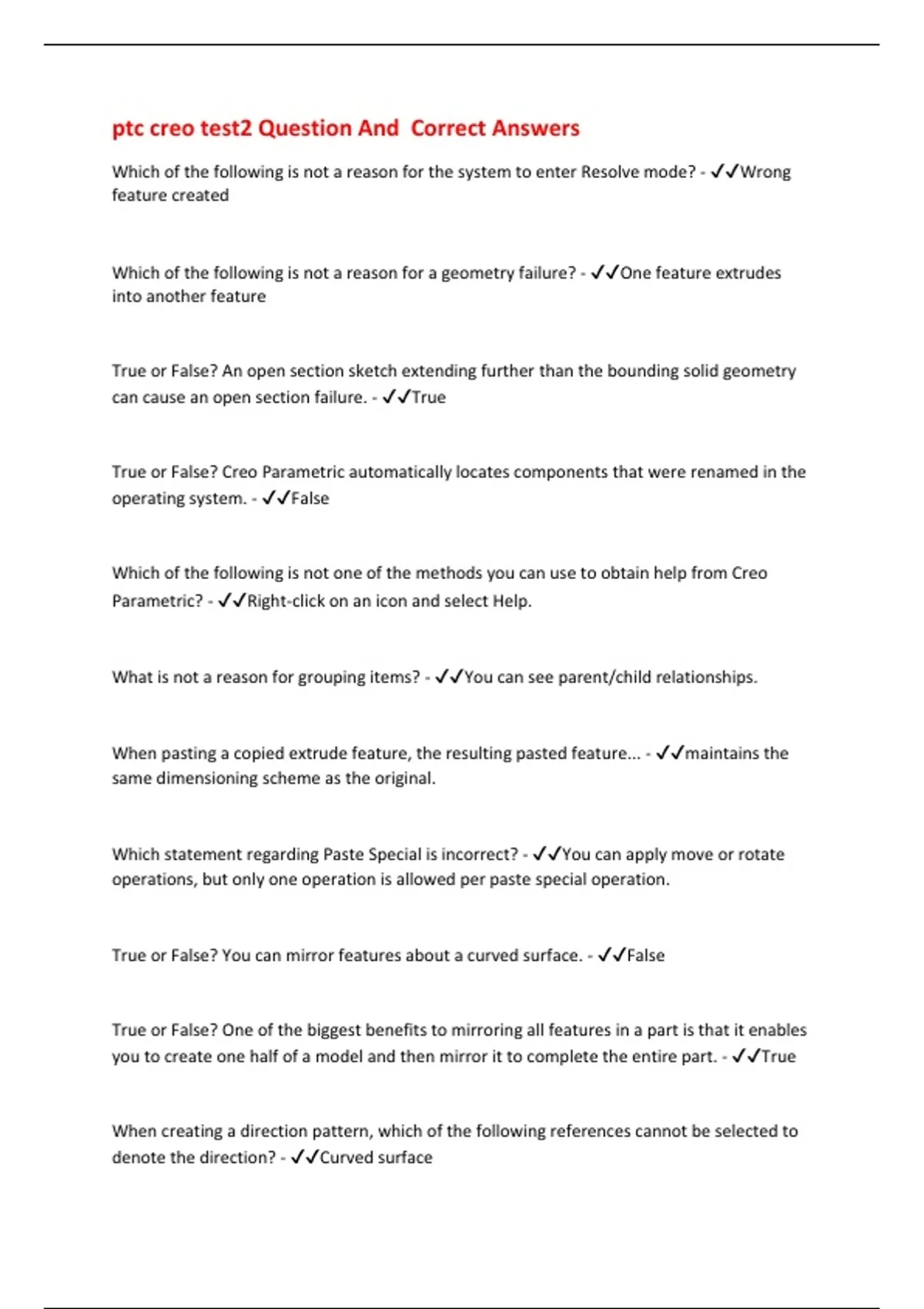

ptc creo test2 Question And Correct Answers
Which of the following is not a reason for the system to enter Resolve mode? - ✔✔Wrong
feature created
Which of the following is not a reason for a geometry failure? - ✔✔One feature extrudes
into another feature
True or False? An open section sketch extending further than the bounding solid geometry
can cause an open section failure. - ✔✔True
True or False? Creo Parametric automatically locates components that were renamed in the
operating system. - ✔✔False
Which of the following is not one of the methods you can use to obtain help from Creo
Parametric? - ✔✔Right-click on an icon and select Help.
What is not a reason for grouping items? - ✔✔You can see parent/child relationships.
When pasting a copied extrude feature, the resulting pasted feature... - ✔✔maintains the
same dimensioning scheme as the original.
Which statement regarding Paste Special is incorrect? - ✔✔You can apply move or rotate
operations, but only one operation is allowed per paste special operation.
True or False? You can mirror features about a curved surface. - ✔✔False
True or False? One of the biggest benefits to mirroring all features in a part is that it enables
you to create one half of a model and then mirror it to complete the entire part. - ✔✔True
When creating a direction pattern, which of the following references cannot be selected to
denote the direction? - ✔✔Curved surface
, True or False? It is not necessary to specify a reference for the second direction of a
direction pattern. You can specify that the second direction be normal to the first direction.
- ✔✔False
True or False? An Axis pattern enables you to create patterns in a linear direction - ✔✔False
Which option enables you to equally space pattern members about the axis reference? -
✔✔Set Angular Extent
If a bolt is reference patterned into a pattern of holes, and the number of hole pattern
members is increased by two, what happens to the reference patterned bolt? - ✔✔The bolt
reference pattern updates by two.
True or False? The main difference between an exact global interference analysis and a
quick global interference analysis is that the exact analysis calculates the volume of
interference between interfering components. - ✔✔True
Which of the following is FALSE regarding the Model Properties dialog box? - ✔✔You can
change the saved file location of the model.
Which measurement type is invalid? - ✔✔Circumference
True or False? When specifying units for a new model, you can create custom unit sets if
desired. - ✔✔True
Which of the following are valid references to measure length? - ✔✔All of the above...
(Edge
Curve
Surface)
