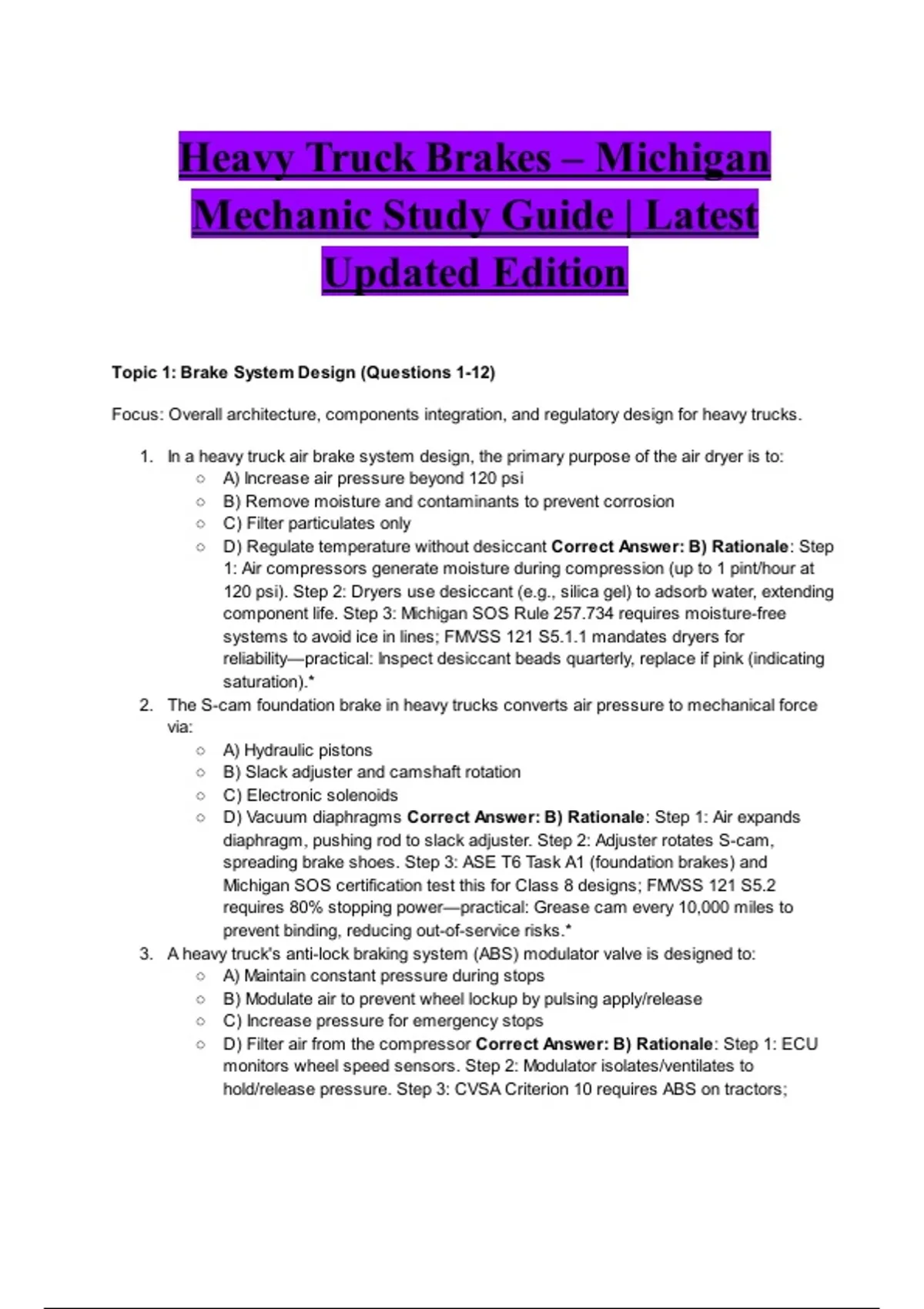

Heavy Truck Brakes – Michigan
Mechanic Study Guide | Latest
Updated Edition
Topic 1: Brake System Design (Questions 1-12)
Focus: Overall architecture, components integration, and regulatory design for heavy trucks.
1. In a heavy truck air brake system design, the primary purpose of the air dryer is to:
○ A) Increase air pressure beyond 120 psi
○ B) Remove moisture and contaminants to prevent corrosion
○ C) Filter particulates only
○ D) Regulate temperature without desiccant Correct Answer: B) Rationale : Step
1: Air compressors generate moisture during compression (up to 1 pint/hour at
120 psi). Step 2: Dryers use desiccant (e.g., silica gel) to adsorb water, extending
component life. Step 3: Michigan SOS Rule 257.734 requires moisture-free
systems to avoid ice in lines; FMVSS 121 S5.1.1 mandates dryers for
reliability—practical: Inspect desiccant beads quarterly, replace if pink (indicating
saturation).*
2. The S-cam foundation brake in heavy trucks converts air pressure to mechanical force
via:
○ A) Hydraulic pistons
○ B) Slack adjuster and camshaft rotation
○ C) Electronic solenoids
○ D) Vacuum diaphragms Correct Answer: B) Rationale : Step 1: Air expands
diaphragm, pushing rod to slack adjuster. Step 2: Adjuster rotates S-cam,
spreading brake shoes. Step 3: ASE T6 Task A1 (foundation brakes) and
Michigan SOS certification test this for Class 8 designs; FMVSS 121 S5.2
requires 80% stopping power—practical: Grease cam every 10,000 miles to
prevent binding, reducing out-of-service risks.*
3. A heavy truck's anti-lock braking system (ABS) modulator valve is designed to:
○ A) Maintain constant pressure during stops
○ B) Modulate air to prevent wheel lockup by pulsing apply/release
○ C) Increase pressure for emergency stops
○ D) Filter air from the compressor Correct Answer: B) Rationale : Step 1: ECU
monitors wheel speed sensors. Step 2: Modulator isolates/ventilates to
hold/release pressure. Step 3: CVSA Criterion 10 requires ABS on tractors;
, Michigan SOS Rule 257.716 mandates modulator function in
inspections—practical: Scan for C0035 code (modulator fault), bleed after
replacement to restore modulation.*
4. The dual-circuit air brake design in heavy trucks provides:
○ A) A single reservoir for all axles
○ B) Redundancy by splitting service/emergency circuits
○ C) Hydraulic backup only
○ D) Equal pressure across all wheels Correct Answer: B) Rationale : Step 1:
Primary/secondary tanks separate service (front/rear) from emergency (spring
brakes). Step 2: Failure of one maintains partial braking. Step 3: FMVSS 121
S5.1.2 and Michigan SOS certification require dual systems for safety; ASE T6
Task B3—practical: Test with 80 psi loss; if emergency engages <20 psi, system
compliant.*
5. In heavy truck brake design, the quick-release valve functions to:
○ A) Slowly exhaust air for controlled release
○ B) Rapidly vent air from brake chambers
○ C) Regulate compressor output
○ D) Purge moisture Correct Answer: B) Rationale : Step 1: Located near
chambers, it shortens exhaust paths. Step 2: Reduces release time to <0.4s per
FMVSS 121 S5.3. Step 3: Michigan SOS inspections check for rapid release;
ASE T6—practical: If brakes drag, replace valve; test by timing release on axle.*
6. The parking brake system in a heavy truck typically uses:
○ A) Spring brakes engaged by air release
○ B) Hydraulic clamps
○ C) Manual levers without air
○ D) ABS override Correct Answer: A) Rationale : Step 1: Springs (1,000-4,000
lbs force) engage when air <20-45 psi. Step 2: "Fail-safe" design. Step 3: CVSA
Item 17 requires spring integrity; Michigan SOS Rule 257.666—practical: Manual
release with caging tool for maintenance; test by draining air tank.*
7. Heavy truck brake chamber types include:
○ A) Type 20/24MC for service, Type 30 spring for parking
○ B) All hydraulic
○ C) A diaphragm sizes by force
○ D) Vacuum-based Correct Answer: C) Rationale : Step 1: Sizing by area (e.g.,
24 sq in for 30 psi = 720 lbs). Step 2: MC = mechanical caging. Step 3: FMVSS
121 S5.6; Michigan SOS certification—practical: Match chamber size to slack
adjuster; mismatch causes uneven braking.*
8. The relay valve in air brake design amplifies:
○ A) Signal from foot valve for faster response
○ B) Compressor speed
○ C) Fluid pressure
○ D) Electrical signals Correct Answer: A) Rationale : Step 1: Remote for rear
axles, reduces delay. Step 2: Proportional to control pressure. Step 3: ASE T6
Mechanic Study Guide | Latest
Updated Edition
Topic 1: Brake System Design (Questions 1-12)
Focus: Overall architecture, components integration, and regulatory design for heavy trucks.
1. In a heavy truck air brake system design, the primary purpose of the air dryer is to:
○ A) Increase air pressure beyond 120 psi
○ B) Remove moisture and contaminants to prevent corrosion
○ C) Filter particulates only
○ D) Regulate temperature without desiccant Correct Answer: B) Rationale : Step
1: Air compressors generate moisture during compression (up to 1 pint/hour at
120 psi). Step 2: Dryers use desiccant (e.g., silica gel) to adsorb water, extending
component life. Step 3: Michigan SOS Rule 257.734 requires moisture-free
systems to avoid ice in lines; FMVSS 121 S5.1.1 mandates dryers for
reliability—practical: Inspect desiccant beads quarterly, replace if pink (indicating
saturation).*
2. The S-cam foundation brake in heavy trucks converts air pressure to mechanical force
via:
○ A) Hydraulic pistons
○ B) Slack adjuster and camshaft rotation
○ C) Electronic solenoids
○ D) Vacuum diaphragms Correct Answer: B) Rationale : Step 1: Air expands
diaphragm, pushing rod to slack adjuster. Step 2: Adjuster rotates S-cam,
spreading brake shoes. Step 3: ASE T6 Task A1 (foundation brakes) and
Michigan SOS certification test this for Class 8 designs; FMVSS 121 S5.2
requires 80% stopping power—practical: Grease cam every 10,000 miles to
prevent binding, reducing out-of-service risks.*
3. A heavy truck's anti-lock braking system (ABS) modulator valve is designed to:
○ A) Maintain constant pressure during stops
○ B) Modulate air to prevent wheel lockup by pulsing apply/release
○ C) Increase pressure for emergency stops
○ D) Filter air from the compressor Correct Answer: B) Rationale : Step 1: ECU
monitors wheel speed sensors. Step 2: Modulator isolates/ventilates to
hold/release pressure. Step 3: CVSA Criterion 10 requires ABS on tractors;
, Michigan SOS Rule 257.716 mandates modulator function in
inspections—practical: Scan for C0035 code (modulator fault), bleed after
replacement to restore modulation.*
4. The dual-circuit air brake design in heavy trucks provides:
○ A) A single reservoir for all axles
○ B) Redundancy by splitting service/emergency circuits
○ C) Hydraulic backup only
○ D) Equal pressure across all wheels Correct Answer: B) Rationale : Step 1:
Primary/secondary tanks separate service (front/rear) from emergency (spring
brakes). Step 2: Failure of one maintains partial braking. Step 3: FMVSS 121
S5.1.2 and Michigan SOS certification require dual systems for safety; ASE T6
Task B3—practical: Test with 80 psi loss; if emergency engages <20 psi, system
compliant.*
5. In heavy truck brake design, the quick-release valve functions to:
○ A) Slowly exhaust air for controlled release
○ B) Rapidly vent air from brake chambers
○ C) Regulate compressor output
○ D) Purge moisture Correct Answer: B) Rationale : Step 1: Located near
chambers, it shortens exhaust paths. Step 2: Reduces release time to <0.4s per
FMVSS 121 S5.3. Step 3: Michigan SOS inspections check for rapid release;
ASE T6—practical: If brakes drag, replace valve; test by timing release on axle.*
6. The parking brake system in a heavy truck typically uses:
○ A) Spring brakes engaged by air release
○ B) Hydraulic clamps
○ C) Manual levers without air
○ D) ABS override Correct Answer: A) Rationale : Step 1: Springs (1,000-4,000
lbs force) engage when air <20-45 psi. Step 2: "Fail-safe" design. Step 3: CVSA
Item 17 requires spring integrity; Michigan SOS Rule 257.666—practical: Manual
release with caging tool for maintenance; test by draining air tank.*
7. Heavy truck brake chamber types include:
○ A) Type 20/24MC for service, Type 30 spring for parking
○ B) All hydraulic
○ C) A diaphragm sizes by force
○ D) Vacuum-based Correct Answer: C) Rationale : Step 1: Sizing by area (e.g.,
24 sq in for 30 psi = 720 lbs). Step 2: MC = mechanical caging. Step 3: FMVSS
121 S5.6; Michigan SOS certification—practical: Match chamber size to slack
adjuster; mismatch causes uneven braking.*
8. The relay valve in air brake design amplifies:
○ A) Signal from foot valve for faster response
○ B) Compressor speed
○ C) Fluid pressure
○ D) Electrical signals Correct Answer: A) Rationale : Step 1: Remote for rear
axles, reduces delay. Step 2: Proportional to control pressure. Step 3: ASE T6
