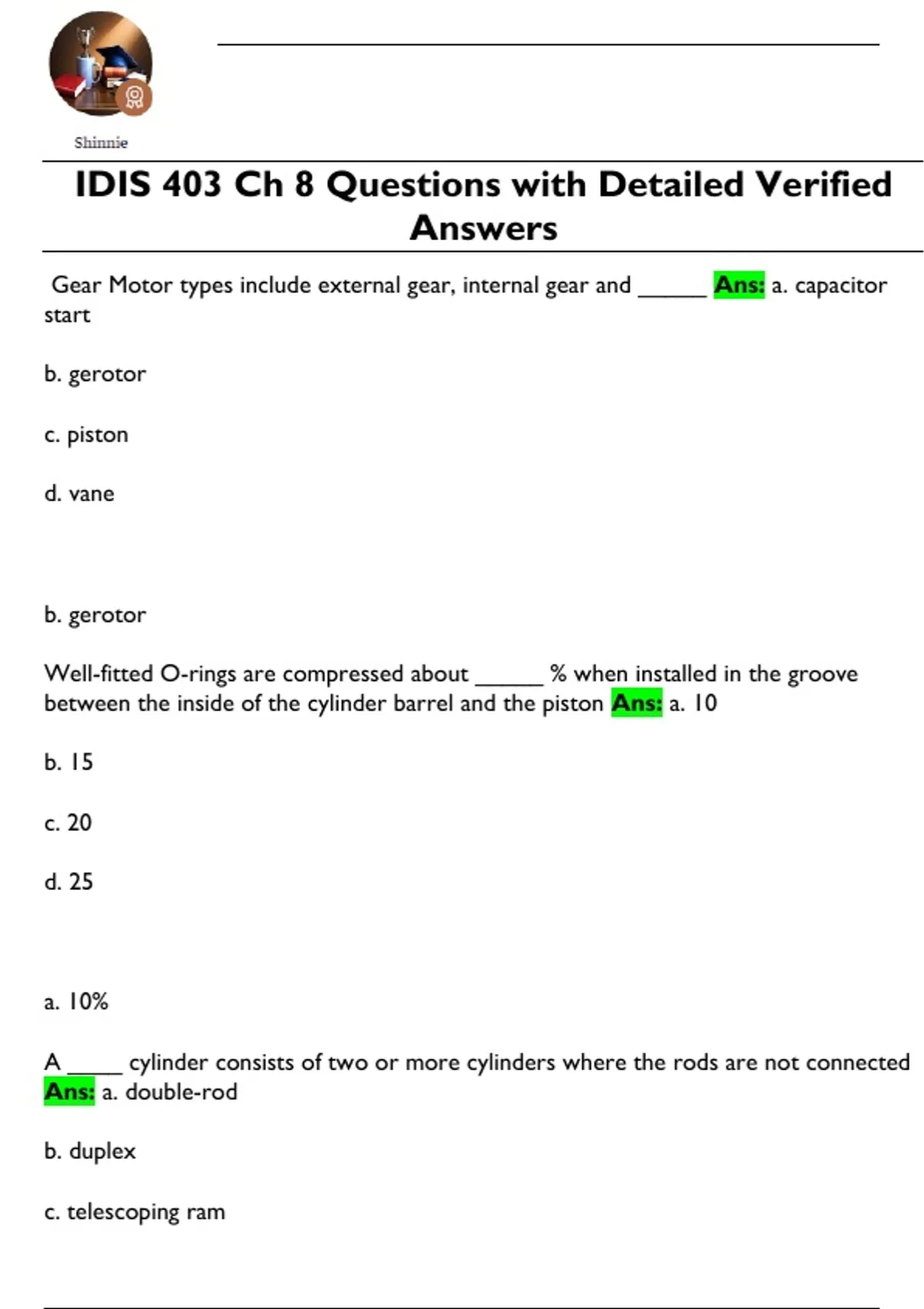

IDIS 403 Ch 8 Questions with Detailed Verified
Answers
Gear Motor types include external gear, internal gear and _____ Ans: a. capacitor
start
b. gerotor
c. piston
d. vane
b. gerotor
Well-fitted O-rings are compressed about _____ % when installed in the groove
between the inside of the cylinder barrel and the piston Ans: a. 10
b. 15
c. 20
d. 25
a. 10%
A ____ cylinder consists of two or more cylinders where the rods are not connected
Ans: a. double-rod
b. duplex
c. telescoping ram
, d. tandem
b. duplex
A(n) ______ is a line or passage from the cam ring area of a hydraulic device that
carries hydraulic fluid leakage from the device to a low-pressure reservoir Ans: a. case
drain
b. external drain line
c. outlet port
d. pilot line
a. case drain
_____ torque is the torque required to get a nonmoving load to begin moving Ans: a.
breakaway
b. mechanical
c. running
d. starting
a. breakaway
Polytetrafluorethylene is also known as _______ Ans: a. NBR
