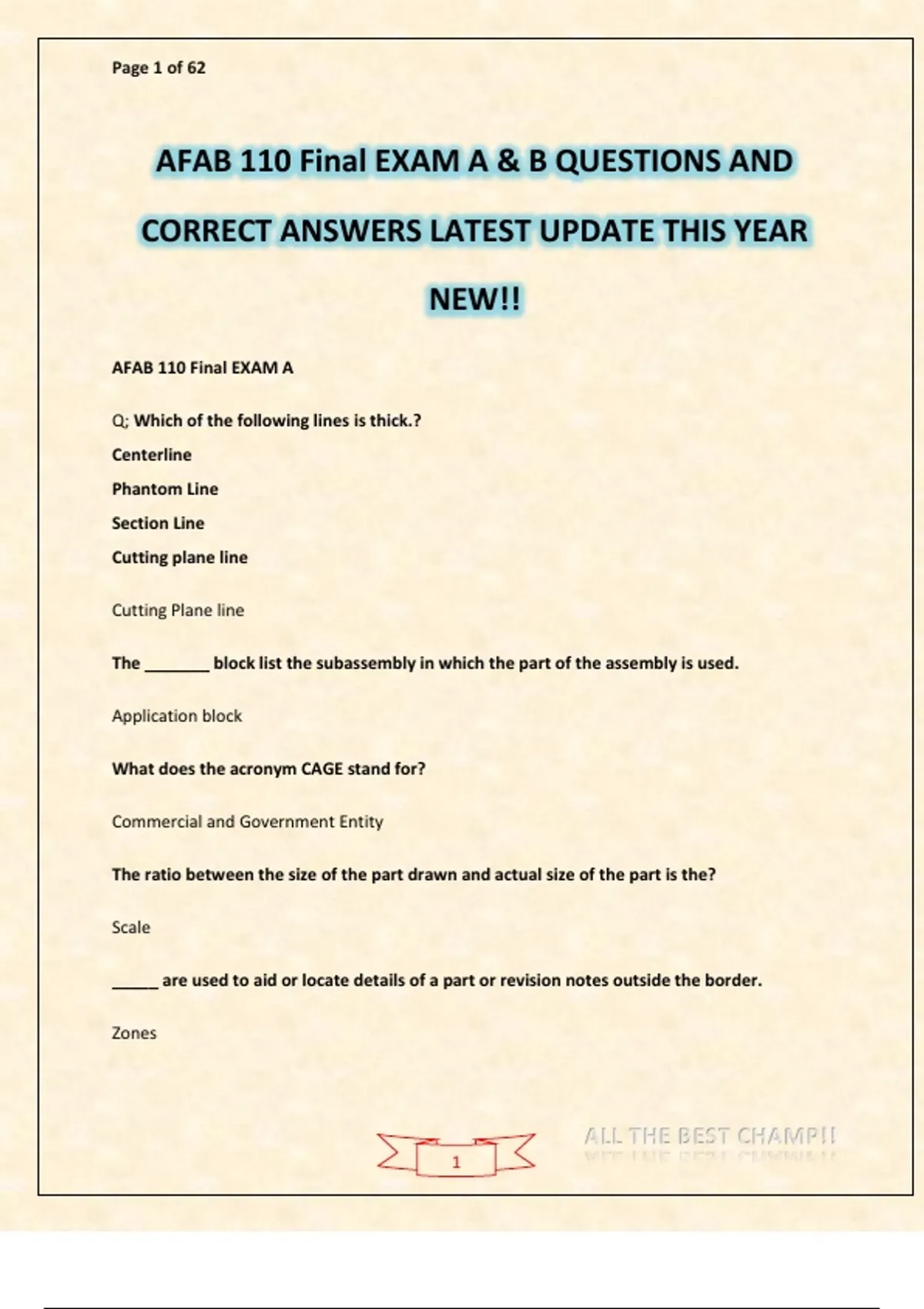

Page 1 of 62
AFAB 110 Final EXAM A & B QUESTIONS AND
CORRECT ANSWERS LATEST UPDATE THIS YEAR
NEW!!
AFAB 110 Final EXAM A
Q; Which of the following lines is thick.?
Centerline
Phantom Line
Section Line
Cutting plane line
Cutting Plane line
The _______ block list the subassembly in which the part of the assembly is used.
Application block
What does the acronym CAGE stand for?
Commercial and Government Entity
The ratio between the size of the part drawn and actual size of the part is the?
Scale
_____ are used to aid or locate details of a part or revision notes outside the border.
Zones
ALL THE BEST CHAMP!!
1
,Page 2 of 62
Which of the following is not used in the dimension of an object?
Dimension
Extension
Leader
Break
Break
Cutting plane lines are easily identifiable due to the _____ at each ends.
Arrowheads
Which of the following line types has a pattern of thin short dashes spaced closely together?
Hidden Line
In manufacturing, part dimensions are often within a range so that most title blocks provide a
_______ to provide general limits.
Tolerance Block
Which of the following is not of the 3 regular views common to drafting?
Front
Top
Rear
Right
Rear
______ help define objects that are more irregular that freeform in nature.
Spline
In most Cad systems the most basic geometric form used to create complex models are
referred to as what?
ALL THE BEST CHAMP!!
2
,Page 3 of 62
Extrusions
Conceptions
Primitives
Facetives.
Primitives
The shared point between a line that touches a circle and only one point that does not
intersect the circle again is called the what?
Point of tangency
Which of the following is not a type of angle a line segments can form?
Right
Acute
Scalene
obtuse
Scalene
Which of the following is not included in a basic parts list?
Fine number
Quantity required
Part nomenclature
finish
Finish
Many companies use ______ to neatly identify the part?
General notes
Tolerancing
Balloons
Dimensions
ALL THE BEST CHAMP!!
3
, Page 4 of 62
Balloons
Which of the following is the 3rd step in the design process?
Refinement of solutions
In the US the standardization of engineering drawings is established through?
ASME
The most common electronic file format that allows the user to electronically share a print
without jeopardizing or supplying the CAD data is?
PDF File
Print reading involves the elements of Visualization and ?
Interpretation
Original drawing are commonly printed on _______ because the copying process requires a
durable original so that it allows light to pass through it.
Vellum
By definition a _______ is a general way of doing something?
Convention
The left to right object from the vantage point of the front view is the ?
Width
Any auxiliary view projected from the front view is called a what type?
Length
width
ALL THE BEST CHAMP!!
4
