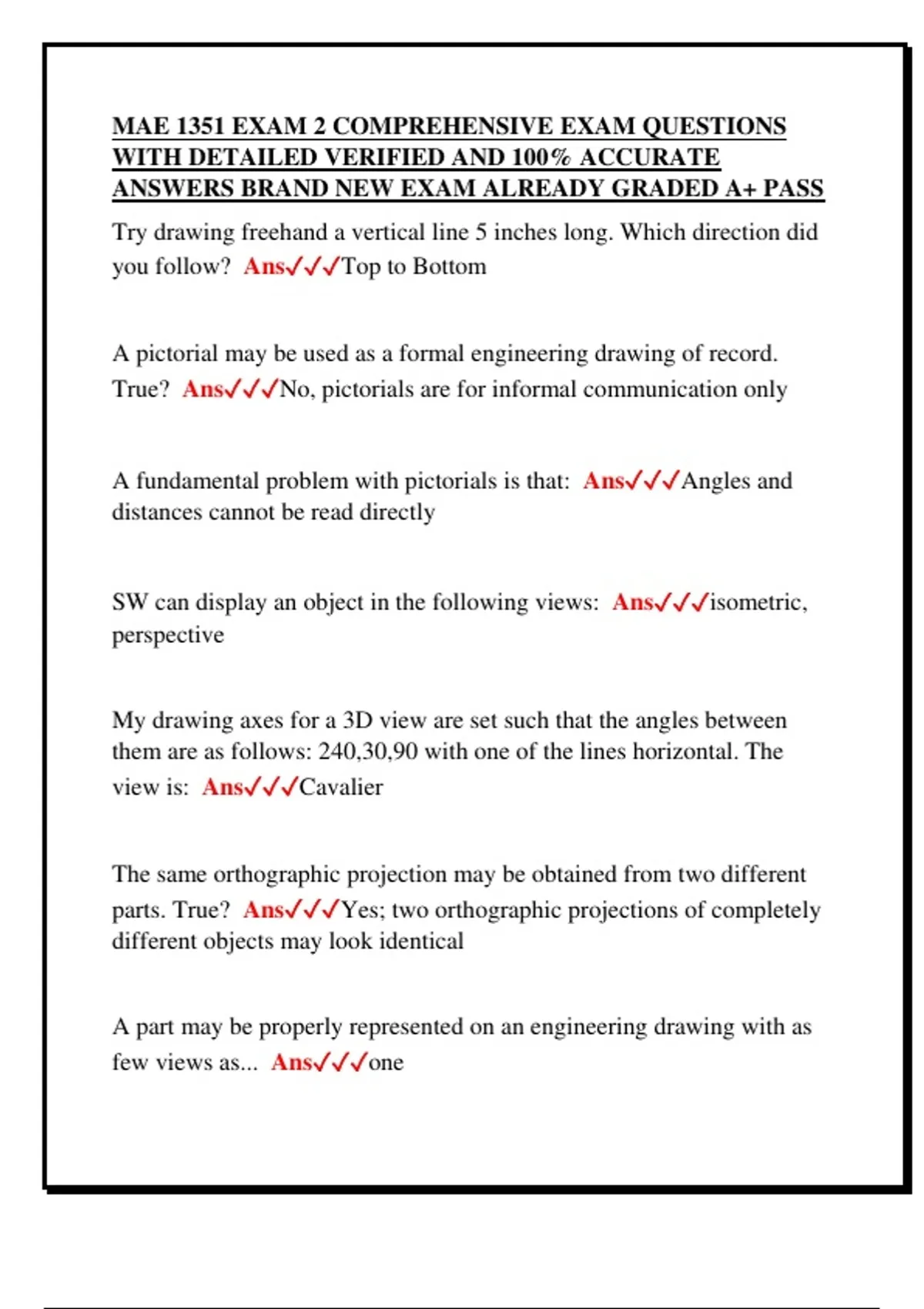

MAE 1351 EXAM 2 COMPREHENSIVE EXAM QUESTIONS
WITH DETAILED VERIFIED AND 100% ACCURATE
ANSWERS BRAND NEW EXAM ALREADY GRADED A+ PASS
Try drawing freehand a vertical line 5 inches long. Which direction did
you follow? Ans✓✓✓Top to Bottom
A pictorial may be used as a formal engineering drawing of record.
True? Ans✓✓✓No, pictorials are for informal communication only
A fundamental problem with pictorials is that: Ans✓✓✓Angles and
distances cannot be read directly
SW can display an object in the following views: Ans✓✓✓isometric,
perspective
My drawing axes for a 3D view are set such that the angles between
them are as follows: 240,30,90 with one of the lines horizontal. The
view is: Ans✓✓✓Cavalier
The same orthographic projection may be obtained from two different
parts. True? Ans✓✓✓Yes; two orthographic projections of completely
different objects may look identical
A part may be properly represented on an engineering drawing with as
few views as... Ans✓✓✓one
, The US standard for multiview orthographic projection is:
Ans✓✓✓Third angle
First angle Ans✓✓✓Germany
C size Ans✓✓✓Plotter
If one chooses a larger sheet size, the text must also be printed larger.
True? Ans✓✓✓No; lettering size should be the same no matter how
small or large the sheet of paper
The revision block in an engineering drawing contains... Ans✓✓✓Both
historical record / references of changes
Engineering drawings should always have a front, top and right view.
True? Ans✓✓✓no
An outline assembly drawing is used to show the fit and function of
parts in an assembly. True? Ans✓✓✓Yes
The table that lists all the components in an assembly is called the...
Ans✓✓✓BOM-Bill of Material
