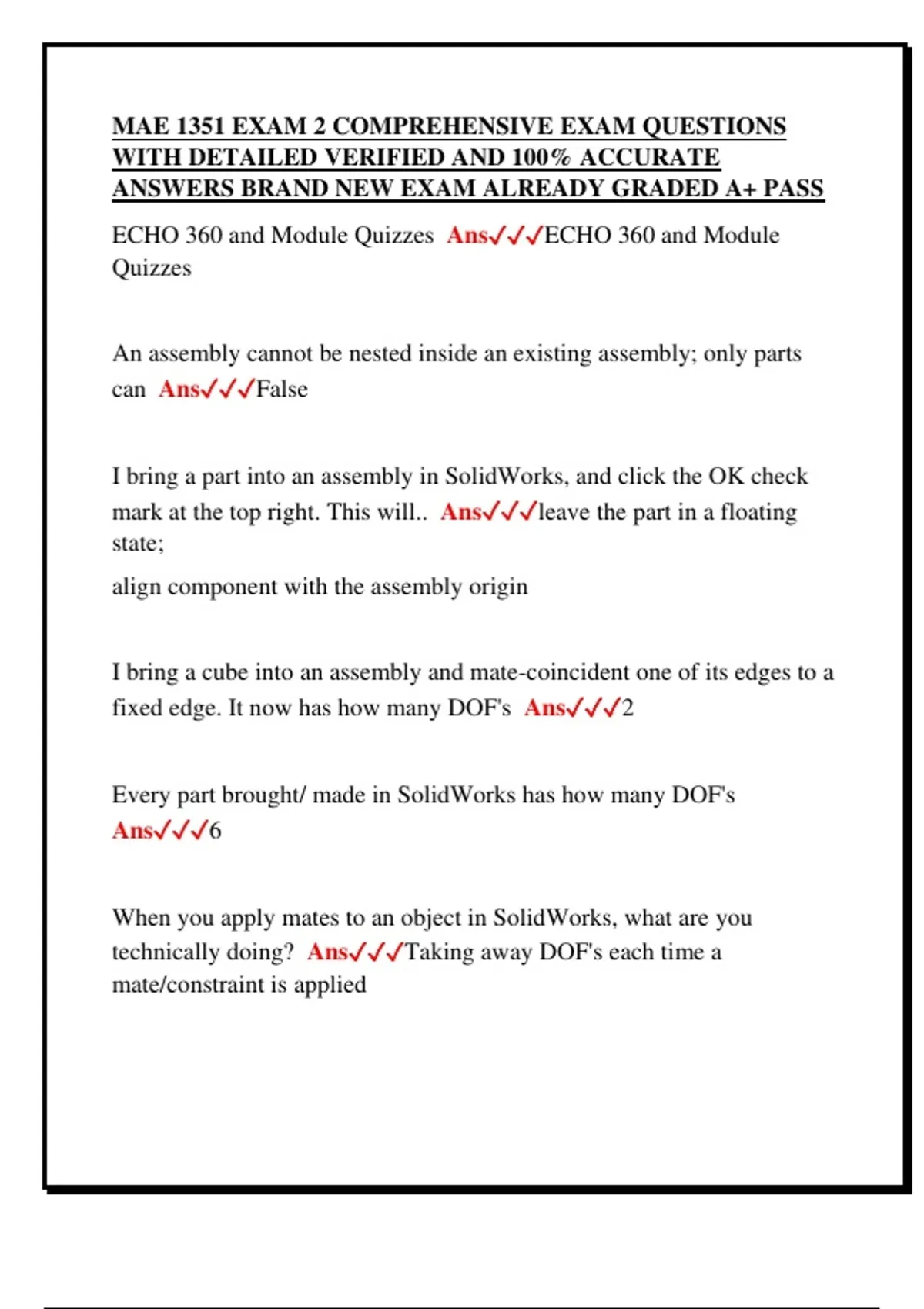

MAE 1351 EXAM 2 COMPREHENSIVE EXAM QUESTIONS
WITH DETAILED VERIFIED AND 100% ACCURATE
ANSWERS BRAND NEW EXAM ALREADY GRADED A+ PASS
ECHO 360 and Module Quizzes Ans✓✓✓ECHO 360 and Module
Quizzes
An assembly cannot be nested inside an existing assembly; only parts
can Ans✓✓✓False
I bring a part into an assembly in SolidWorks, and click the OK check
mark at the top right. This will.. Ans✓✓✓leave the part in a floating
state;
align component with the assembly origin
I bring a cube into an assembly and mate-coincident one of its edges to a
fixed edge. It now has how many DOF's Ans✓✓✓2
Every part brought/ made in SolidWorks has how many DOF's
Ans✓✓✓6
When you apply mates to an object in SolidWorks, what are you
technically doing? Ans✓✓✓Taking away DOF's each time a
mate/constraint is applied
, I bring a cube into an assembly and mate coincident one of its vertices to
a fixed vertex. It now has how many DOF's Ans✓✓✓3
For every mate I apply, I reduce the DOF of the part by these many
Ans✓✓✓Depends on the mate
I bring a cylinder into an assembly and mate-parallel one of its flat faces
to the top of the plane. This causes it to lose these many DOFs
Ans✓✓✓3
I bring a cylinder into an assembly and mate-tangent its curved to a
curved surface of a fixed identical cylinder. It now has how many DOF's
Ans✓✓✓3
The equivalent of mass in a rotational system is called the
Ans✓✓✓moment of inertia
I have an assembly with moving parts and wish to check that I have part
clearances throughout. For this I need. Ans✓✓✓Motion Study
In a SolidWorks assembly, it is possible to assign an arbitrary motion to
a component to visualize overall behavior Ans✓✓✓yes, easily
In a FEA simulation, certain physical values are specified at their edges
and nodal points. These are known as Ans✓✓✓Boundary conditions
