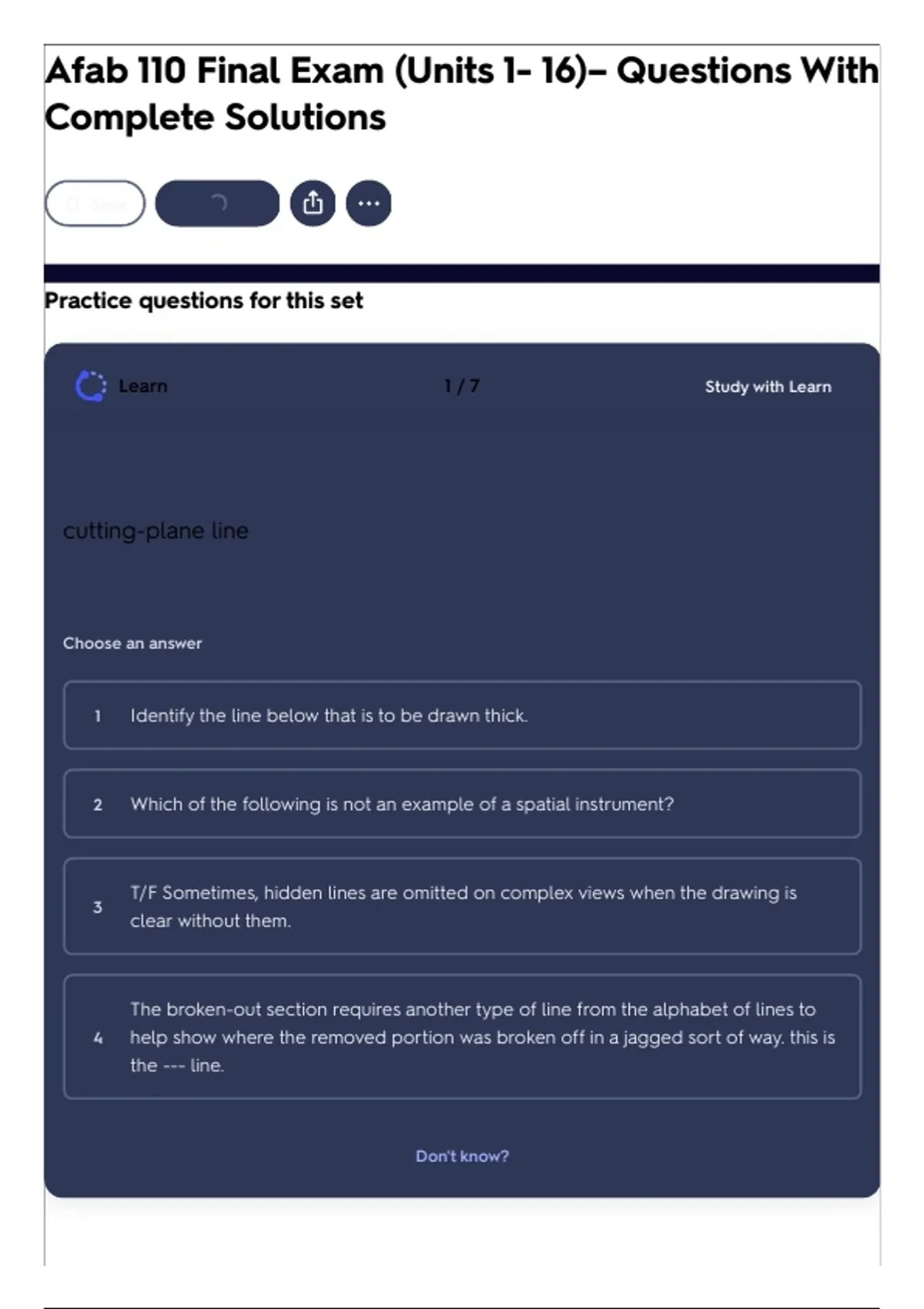

Complete Solutions
Save
Practice questions for this set
Learn 1 /7 Study with Learn
cutting-plane line
Choose an answer
1 Identify the line below that is to be drawn thick.
2 Which of the following is not an example of a spatial instrument?
T/F Sometimes, hidden lines are omitted on complex views when the drawing is
3
clear without them.
The broken-out section requires another type of line from the alphabet of lines to
4 help show where the removed portion was broken off in a jagged sort of way. this is
the --- line.
Don't know?
, Terms in this set (85)
Which of the following is playing 3d tic tac toe
not an example of a
spatial instrument?
There are three Length
dimension terms
common to drafting
education. which of the
following is not correct?
The type of section view offset
where the section view is
no longer aligned in
projection with other
views is:
A. removed
B. revolved
C. broken-out
D. offset
Cylindrical object with an Aligned
odd number of features,
such as spokes or holes
on a bolt circle, could be
better described with a --
-- section.
The broken-out section Short break
requires another type of
line from the alphabet of
lines to help show where
the removed portion was
broken off in a jagged
sort of way. this is the ---
line.
