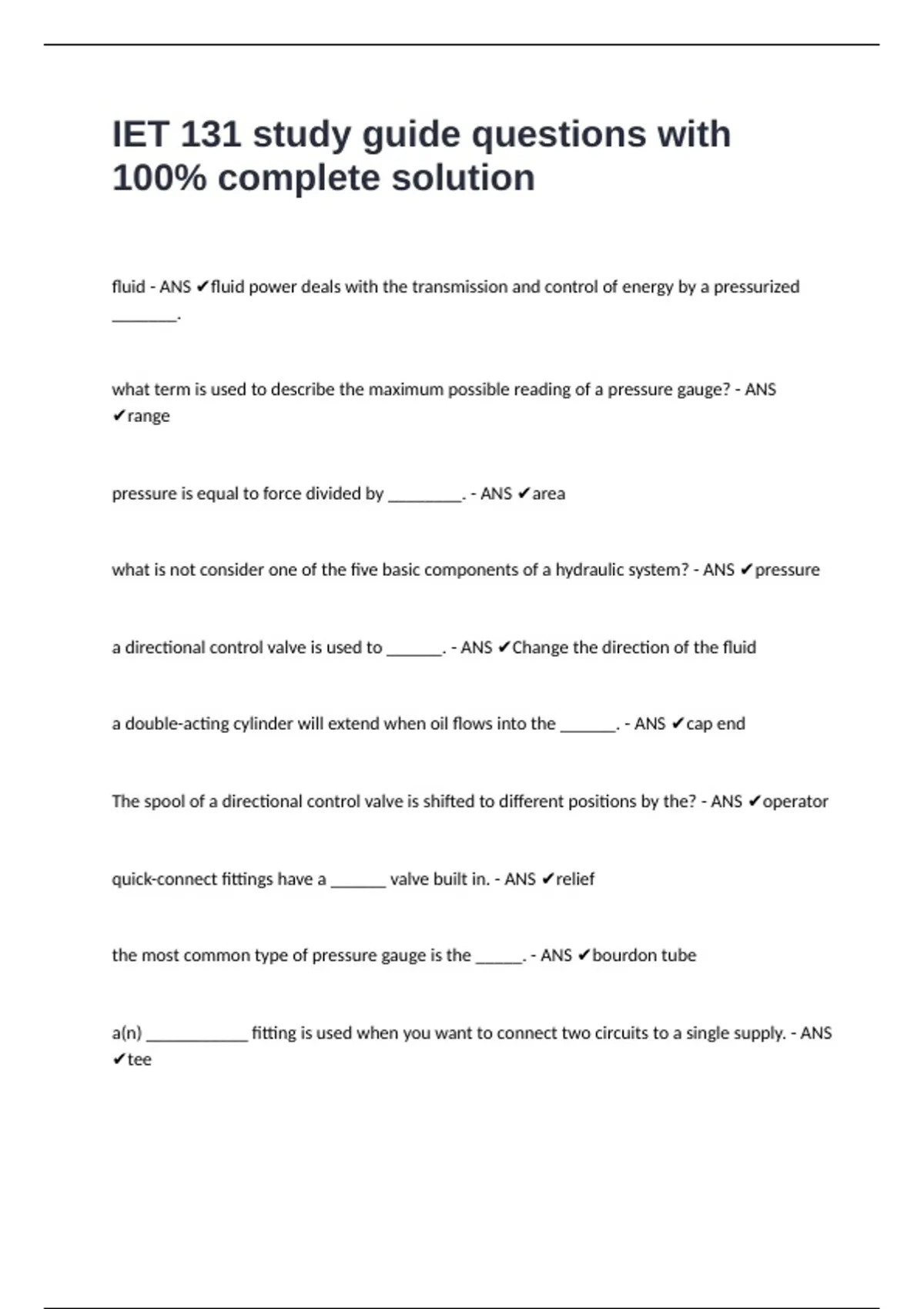

IET 131 study guide questions with
100% complete solution
fluid - ANS ✔fluid power deals with the transmission and control of energy by a pressurized
_______.
what term is used to describe the maximum possible reading of a pressure gauge? - ANS
✔range
pressure is equal to force divided by ________. - ANS ✔area
what is not consider one of the five basic components of a hydraulic system? - ANS ✔pressure
a directional control valve is used to ______. - ANS ✔Change the direction of the fluid
a double-acting cylinder will extend when oil flows into the ______. - ANS ✔cap end
The spool of a directional control valve is shifted to different positions by the? - ANS ✔operator
quick-connect fittings have a ______ valve built in. - ANS ✔relief
the most common type of pressure gauge is the _____. - ANS ✔bourdon tube
a(n) ___________ fitting is used when you want to connect two circuits to a single supply. - ANS
✔tee
, the main function of a needle valve is to - ANS ✔control the speed of an actuator
which one hydraulic component may be shown many times in a schematic without indicating
that there are more than one of that component? - ANS ✔vented reservoir
what is not a type of fixed displacement pump? - ANS ✔centrifugal
which type of flowmeter must be oriented in a vertical position? - ANS ✔rotameter
the needle valve adjustment has a tapered end to adjust the size of the ________. - ANS
✔orifice
a pump produces ________. - ANS ✔flow
flow rate is equal to volume divided by ______. - ANS ✔time
Most hydraulic motors are modified designs of __________. - ANS ✔pumps
what is not a type of hydraulic piston motor? - ANS ✔spring loaded
the hydraulic motor converts hydraulic flow into ________? - ANS ✔rotary shaft speed
pascal's law states that pressure in a confined fluid is equal and acts _________. - ANS
✔perpendicular to all surfaces
Delta P is another name for - ANS ✔pressure differential
