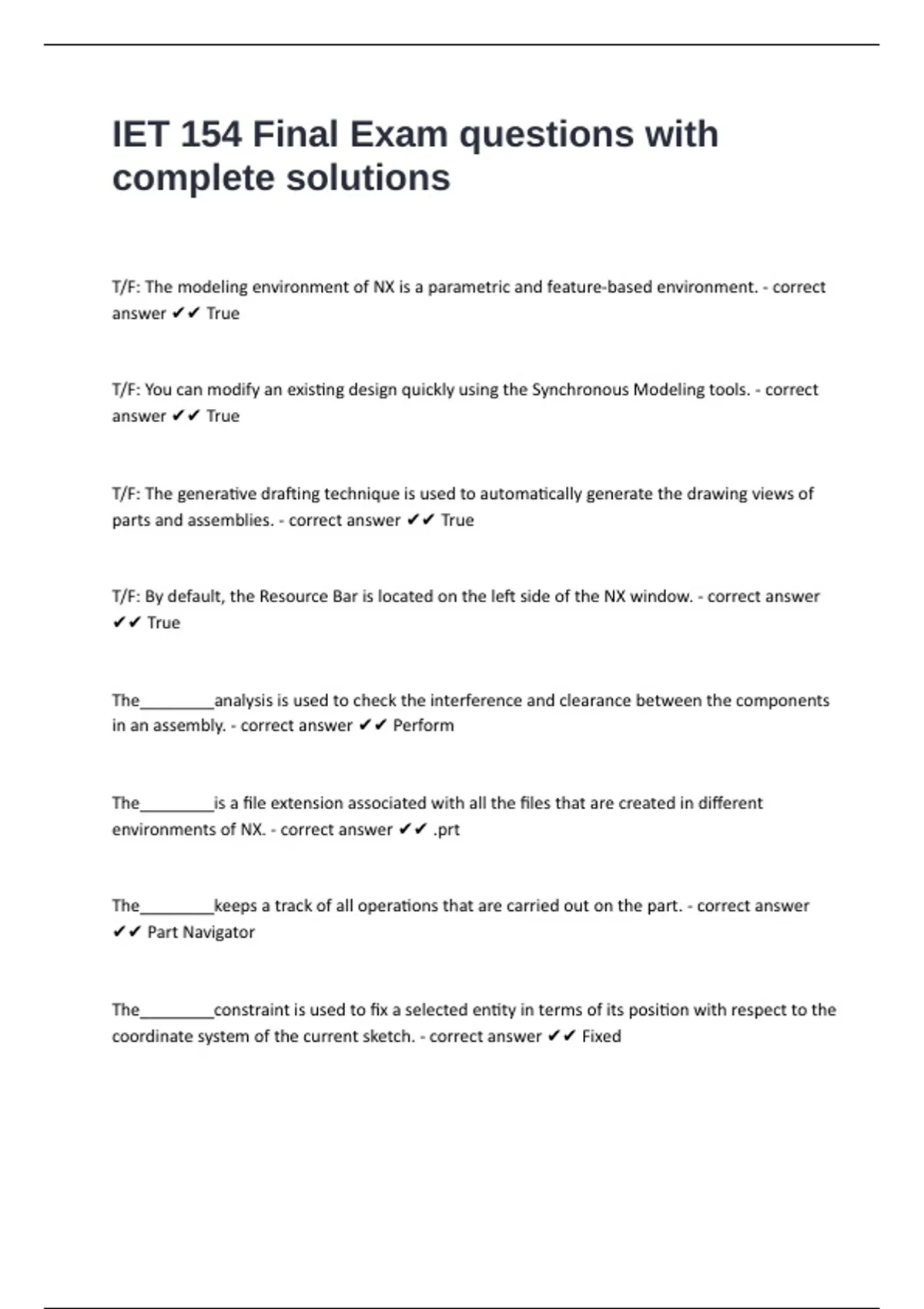

IET 154 Final Exam questions with
complete solutions
T/F: The modeling environment of NX is a parametric and feature-based environment. - correct
answer ✔✔ True
T/F: You can modify an existing design quickly using the Synchronous Modeling tools. - correct
answer ✔✔ True
T/F: The generative drafting technique is used to automatically generate the drawing views of
parts and assemblies. - correct answer ✔✔ True
T/F: By default, the Resource Bar is located on the left side of the NX window. - correct answer
✔✔ True
The________analysis is used to check the interference and clearance between the components
in an assembly. - correct answer ✔✔ Perform
The________is a file extension associated with all the files that are created in different
environments of NX. - correct answer ✔✔ .prt
The________keeps a track of all operations that are carried out on the part. - correct answer
✔✔ Part Navigator
The________constraint is used to fix a selected entity in terms of its position with respect to the
coordinate system of the current sketch. - correct answer ✔✔ Fixed
,You can invoke the________tool by pressing and holding the middle mouse button. - correct
answer ✔✔ Rotate
The________group is used to generate the GDT parameters,annotations, and symbols. - correct
answer ✔✔ Annotation
What dialog box is displayed when you choose the NEW button from the FILE tab to start a new
file? - correct answer ✔✔ New
What tool in NX is used to create conics? - correct answer ✔✔ Conic
What mode is automatically invoked from the Profile Box when you specify the start point of a
line? - correct answer ✔✔ Parameter Mode
In NX, how many methods are used to start a new file? - correct answer ✔✔ 2
What option is available in the Studio Spline dialog box along with By Poles option to draw
splines? - correct answer ✔✔ Through Points
T/F: The files in NX are saved with .prt extension. - correct answer ✔✔ True
T/F: You can select entities by dragging a box around them. - correct answer ✔✔ True
T/F: You can set the selection mode to select only the sketched entities. - correct answer ✔✔
True
T/F: In NX, you can create fillets by simply dragging the cursor across the entities that you want
to fillet. - correct answer ✔✔ True
,T/F: In NX, you cannot draw a rectangle from its center. - correct answer ✔✔ False
What tool is used to apply geometric constraints to a sketch? - correct answer ✔✔ Geometric
Constraints
What tool is used to add a radial dimension to a sketch? - correct answer ✔✔ Radius
What tool is used to make the endpoints of selected objects coincident? - correct answer ✔✔
Coincident
What tool is used to apply the constant length constraint between sketch members? - correct
answer ✔✔ Equal Length
What tool is used to apply angular dimensions to a sketch member? - correct answer ✔✔
Angular
What tool is used to convert a sketch member into a reference element? - correct answer ✔✔
Convert To>From Reference
T/F: While measuring an angular dimensions, you can display a major or minor dimension. -
correct answer ✔✔ True
T/F: The Direct Sketch group contains all tools required to draw a sketch. - correct answer ✔✔
True
T/F: The Sketch tool in the Home tab is chosen to switch to sketch in Task environment. - correct
answer ✔✔ True
, T/F: The Finish Sketch tool in the Home tab is used to exit the Sketch environment. - correct
answer ✔✔ False
What tool in NX allows you to dynamically move, rotate, or copy the solid objects and the
sketched entities? - correct answer ✔✔ Move Object
What view is the default view for NX? - correct answer ✔✔ Trimetric
What rollout is used to create a thin extrude feature by offsetting the sketch in two directions? -
correct answer ✔✔ Offset
What path is used to invoke the Move Object tool? - correct answer ✔✔ Menu>Edit
What rule is used to determine the direction of revolution? - correct answer ✔✔ Right-hand
thumb rule
In what group can you set the display modes for solid models? - correct answer ✔✔ View
T/F: If you choose Finish Sketch tool from the Direct Sketch group to exit the Sketch
environment, the Modeling environment will be invoked. - correct answer ✔✔ True
T/F: When you mirror various entities using the Mirror Curve tool, by default a mirrored copy of
the selected entities is created and the original entities are deleted. - correct answer ✔✔ False
T/F: In the Results rollout of the Move Object dialog box, you can specify whether you want to
move the original entity or its copy by using the Move Original or Copy Original radio button. -
correct answer ✔✔ True
T/F: You can rotate a model in 3D space using the Rotate Tool. - correct answer ✔✔ True
complete solutions
T/F: The modeling environment of NX is a parametric and feature-based environment. - correct
answer ✔✔ True
T/F: You can modify an existing design quickly using the Synchronous Modeling tools. - correct
answer ✔✔ True
T/F: The generative drafting technique is used to automatically generate the drawing views of
parts and assemblies. - correct answer ✔✔ True
T/F: By default, the Resource Bar is located on the left side of the NX window. - correct answer
✔✔ True
The________analysis is used to check the interference and clearance between the components
in an assembly. - correct answer ✔✔ Perform
The________is a file extension associated with all the files that are created in different
environments of NX. - correct answer ✔✔ .prt
The________keeps a track of all operations that are carried out on the part. - correct answer
✔✔ Part Navigator
The________constraint is used to fix a selected entity in terms of its position with respect to the
coordinate system of the current sketch. - correct answer ✔✔ Fixed
,You can invoke the________tool by pressing and holding the middle mouse button. - correct
answer ✔✔ Rotate
The________group is used to generate the GDT parameters,annotations, and symbols. - correct
answer ✔✔ Annotation
What dialog box is displayed when you choose the NEW button from the FILE tab to start a new
file? - correct answer ✔✔ New
What tool in NX is used to create conics? - correct answer ✔✔ Conic
What mode is automatically invoked from the Profile Box when you specify the start point of a
line? - correct answer ✔✔ Parameter Mode
In NX, how many methods are used to start a new file? - correct answer ✔✔ 2
What option is available in the Studio Spline dialog box along with By Poles option to draw
splines? - correct answer ✔✔ Through Points
T/F: The files in NX are saved with .prt extension. - correct answer ✔✔ True
T/F: You can select entities by dragging a box around them. - correct answer ✔✔ True
T/F: You can set the selection mode to select only the sketched entities. - correct answer ✔✔
True
T/F: In NX, you can create fillets by simply dragging the cursor across the entities that you want
to fillet. - correct answer ✔✔ True
,T/F: In NX, you cannot draw a rectangle from its center. - correct answer ✔✔ False
What tool is used to apply geometric constraints to a sketch? - correct answer ✔✔ Geometric
Constraints
What tool is used to add a radial dimension to a sketch? - correct answer ✔✔ Radius
What tool is used to make the endpoints of selected objects coincident? - correct answer ✔✔
Coincident
What tool is used to apply the constant length constraint between sketch members? - correct
answer ✔✔ Equal Length
What tool is used to apply angular dimensions to a sketch member? - correct answer ✔✔
Angular
What tool is used to convert a sketch member into a reference element? - correct answer ✔✔
Convert To>From Reference
T/F: While measuring an angular dimensions, you can display a major or minor dimension. -
correct answer ✔✔ True
T/F: The Direct Sketch group contains all tools required to draw a sketch. - correct answer ✔✔
True
T/F: The Sketch tool in the Home tab is chosen to switch to sketch in Task environment. - correct
answer ✔✔ True
, T/F: The Finish Sketch tool in the Home tab is used to exit the Sketch environment. - correct
answer ✔✔ False
What tool in NX allows you to dynamically move, rotate, or copy the solid objects and the
sketched entities? - correct answer ✔✔ Move Object
What view is the default view for NX? - correct answer ✔✔ Trimetric
What rollout is used to create a thin extrude feature by offsetting the sketch in two directions? -
correct answer ✔✔ Offset
What path is used to invoke the Move Object tool? - correct answer ✔✔ Menu>Edit
What rule is used to determine the direction of revolution? - correct answer ✔✔ Right-hand
thumb rule
In what group can you set the display modes for solid models? - correct answer ✔✔ View
T/F: If you choose Finish Sketch tool from the Direct Sketch group to exit the Sketch
environment, the Modeling environment will be invoked. - correct answer ✔✔ True
T/F: When you mirror various entities using the Mirror Curve tool, by default a mirrored copy of
the selected entities is created and the original entities are deleted. - correct answer ✔✔ False
T/F: In the Results rollout of the Move Object dialog box, you can specify whether you want to
move the original entity or its copy by using the Move Original or Copy Original radio button. -
correct answer ✔✔ True
T/F: You can rotate a model in 3D space using the Rotate Tool. - correct answer ✔✔ True
