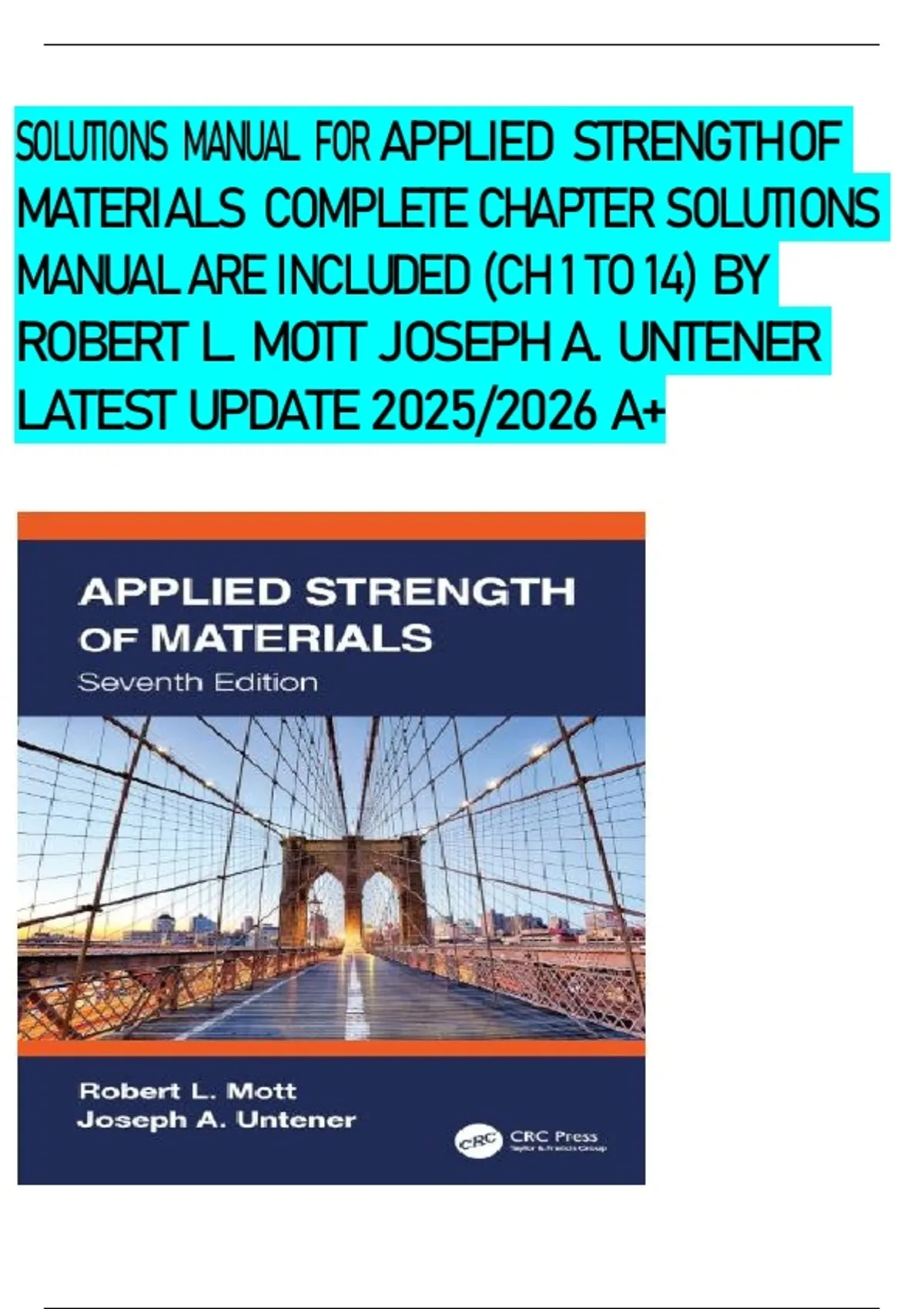

SOLUTIONS MANUAL FOR APPLIED STRENGTH OF
MATERIALS COMPLETE CHAPTER SOLUTIONS
MANUAL ARE INCLUDED (CH 1 TO 14) BY
ROBERT L. MOTT JOSEPH A. UNTENER
LATEST UPDATE 2025/2026 A+

, Chapter 1 Basic Concepts In Strength Of Materials
1.1 To 1.11 Answers In Text.
1.12 𝑊 = 𝑚 ∙ 𝑔 = 1400 Kg ∙ 9.81 M/S2 = 13 734 (Kg ∙ M)/S2 = 14 × 103 N
𝑾 = 𝟏3. 𝟕 𝐤𝐍
1.13 Total Weight = 𝑚 𝑔 = 3500 Kg ∙ 9.81 M/S2 = 34.34

Kn Each Front Wheel: 𝐹𝐹 = (1) (0.40)(34.34 Kn) =
2

6.87 𝐤𝐍

Each Rear Wheel: 𝐹𝑅 = (1) (0.60)(34.34 Kn) = 𝟏0.32 𝐤𝐍
2

1.14 Loading = Total Force / Area
Total Force = 𝑚 𝑔 = 5900 Kg ∙ 9.81 M/S2 =
57.9 Kn Area = (4.5 M)(3.5 M) = 15.8 M2
Loading = 57.9 Kn⁄15.8 M2 = 3.66 Kn⁄M2 = 𝟑.66 𝐤𝐏𝐚
1.15 Force = 𝑚 𝑔 = 35 Kg ∙ 9.81 M/S2 = 343 N
K = Spring Scale =4800 N⁄M = 𝐹/Δ𝐿
Δ𝐿 = 𝐹 = 343 N = 0.0715 M = 71.5 × 10−3 M = 71. 𝟓 𝐦𝐦
𝐾 4800 N/M




1.16 𝑚=
𝑤
=
3250 = 101 𝐬𝐥𝐮𝐠𝐬
Lb = 101
Lb∙S2
𝑔 32.2 (Ft/S2) Ft

1.17 𝑚=
𝑤
=
11 600 = 𝟑60 𝐬𝐥𝐮𝐠𝐬
Lb = 360
Lb∙S2
𝑔 32.2 (Ft/S2) Ft

1.19 𝑝 = 1700 Psi ∙ 6.895 (Kpa⁄Psi) = 11 722 𝐤𝐏𝐚
1.20 𝜎 = 24 300 Psi ∙ 6.895 (Kpa⁄Psi) = 167 549 Kpa = 𝟏68 𝐌𝐏𝐚

,1.21 𝑠𝑢 = 14 000 Psi ∙ 6.895 (Kpa⁄Psi) = 96 500 Kpa = 𝟗𝟔. 𝟓 𝐌𝐏𝐚
𝑠𝑢 = 76 000 Psi ∙ 6.895 (Kpa⁄Psi) = 524 000 Kpa = 𝟓𝟐𝟒 𝐌𝐏𝐚
3600 2π Rad 1 Min
1.22
Rev 𝑛= × × = 3 77
𝐫𝐚𝐝
Min Rev 60s 𝐬

(25.4mm) 2
1.23 𝐴 = 26.1 In2 = 16 839 𝐦𝐦𝟐
In
2
×
1.24 𝑦 = 0.08 In ∙ 25.4 (Mm⁄In) = 𝟐. 𝟎𝟑 𝐦𝐦
1.25 Dimensions: 18 In × 25.4 (Mm/In) = 457 Mm
12 In × 25.4 (Mm/In) = 305
Mm Area = (18 In)2 = 𝟑𝟐𝟒 𝐢𝐧𝟐
Area = (457 Mm)2 = 𝟐. 𝟎𝟗 × 𝟏𝟎𝟓 𝐦𝐦𝟐
Volume = 𝑉 = Area × Height
𝑉 = 324 In2 × 12 In = 𝟑𝟖𝟖𝟖 𝐢𝐧𝟑
𝑉 = (1.5 Ft)2 × 1.0 Ft = 𝟐. 𝟐𝟓 𝐟𝐭𝟑
𝑉 = (209 × 103 Mm2) × 305 Mm = 𝟔. 𝟑𝟕 × 𝟏𝟎𝟕 𝐦𝐦𝟑
𝑉 = (0.457 M)2 × 0.305 M = 0.0637 M3 = 𝟔. 𝟑𝟕 × 𝟏𝟎−𝟐 𝐦𝟑
1.26 𝐴 = 𝜋𝐷2⁄4 = 𝜋(0.505 In)2⁄4 = 𝟎. 𝟐𝟎𝟎 𝐢𝐧𝟐
2
𝐴 = 0.200 In2 × (25.4 Mm) = 𝟏𝟐𝟗 𝐦𝐦𝟐
In 2
2800 N
1.27 𝜎=
𝑃 2800 N
= = 35.7 N
= 35. 𝟕 𝐌𝐏𝐚
𝐴= ( 𝜋𝐷 2 ⁄4) [𝜋 ( 10 Mm) 2] ⁄4 Mm2
3
1.28 𝜎= 𝑃 = 18×10 N = 50.7 = 50. 𝟕 𝐌𝐏𝐚
N
𝐴 ( 12)( 30) Mm2 Mm2

1.29
Lb 𝜎=
𝑃
=
1150 = 7188 𝐩𝐬𝐢
𝐴 (0.40 In) 2

1.30
Lb 𝜎=
𝑃
=
1850 = 𝟏𝟔 𝟕𝟓𝟎 𝐩𝐬𝐢
𝐴 [ 𝜋 ( 0.375 In) 2]⁄4

1.31 Load On Shelf = 𝑊 = 𝑚𝑔 = 1650 Kg ∙ 9.81 M⁄S2 = 16 187 N
𝑊/2 = 8093 N On Each Side
∑ 𝑀𝐴 = 0 = (8093 N)(600 Mm) − 𝐶𝑉(1200 Mm)
𝐶 𝑉 = 4047 N
𝐶 = 𝐶 𝑉/ Sin 30° = 8093 N
𝜎 = 𝑃 ==𝐶 9025 N 2 = 71.6 𝐌𝐏𝐚
𝐴 𝐴 [ 𝜋 ( 12 Mm) ]⁄4

70000 = 891 𝐩𝐬𝐢
1.32 𝜎 = 𝑃
=
Lb
𝐴 [ 𝜋 ( 10 In) 2] /4

, (29500 Lb)/3
1.33 𝜎 = 𝑃 = = 𝟖𝟎𝟑 𝐩𝐬𝐢
𝐴 (3.5 In)2
3500 N
1.34 𝜎 = 𝑃 𝐴
= (8.0
= 𝟓𝟒. 𝟕 𝐌𝐏𝐚
Mm) 2

1.35 𝑊 = 𝑚 𝑔 = 4200 Kg ∙ 9.81 M/S2 = 41.2 Kn
𝐴𝐵 𝑋 = 𝐴𝐵 Sin 35°
𝐴𝐵 𝑌 = 𝐴𝐵 Cos 35°
𝐵𝐶𝑋 = 𝐵𝐶 Sin 55°
𝐵𝐶𝑌 = 𝐵𝐶 Cos 55°
∑ 𝐹𝑋 = 0 = 𝐴𝐵 𝑋 − 𝐵𝐶𝑋
0 = 𝐴𝐵 Sin 35° − 𝐵𝐶 Sin 55°
Sin 55°
𝐴𝐵 = 𝐵𝐶 ∙ = 1.428
𝐵𝐶 Sin 35°
∑ 𝐹𝑉 = 0 = 𝐴𝐵 𝑌 + 𝐵𝐶𝑌 − 41.2 Kn = 𝐴𝐵 Cos 35° + 𝐵𝐶 Cos 55° − 41.2
Kn 0 = (1.428 𝐵𝐶) Cos 35° + 𝐵𝐶 Cos 55° − 41.2 Kn
41.2 Kn = 𝐵𝐶[1.170 + 0.574] = 1.743 𝐵𝐶
𝐵𝐶 = 41.2 Kn = 23.63 Kn
1.743

𝐴𝐵 = 1.428 𝐵𝐶 = 33.75 Kn
Stress In Rod =
𝐴𝐵
=
33.75×103 N = 𝟏𝟎𝟕. 𝟒 𝐌𝐏𝐚
AB: 𝜎 𝐴𝐵 𝐴 [ 𝜋 ( 20 Mm) 2] /4

Stress
BC: 𝜎 In Rod =
𝐵𝐶
=
23.63×103 N = 𝟕𝟓. 𝟐 𝐌𝐏𝐚
𝐵𝐶 𝐴 [ 𝜋 ( 20 Mm) 2] /4

Stress
BD: 𝜎 In Rod =
𝐵𝐷
=
41.2×103 = 𝟏𝟑𝟏. 𝟏 𝐌𝐏𝐚
N
𝐵𝐷 𝐴 [ 𝜋 ( 20 Mm) 2] /4

1.36 𝐹 = 0.01097 𝑚 𝑅 𝑛2 = (0.01097)(0.40)(0.60)(3000)2 N
𝐹 = 23 695 N
𝜋 ( 16 Mm) 2
𝐴= = 201 Mm2
4

𝜎=
𝐹
=
23695 N = 𝟏𝟏𝟖 𝐌𝐏𝐚
𝐴 201 Mm2
