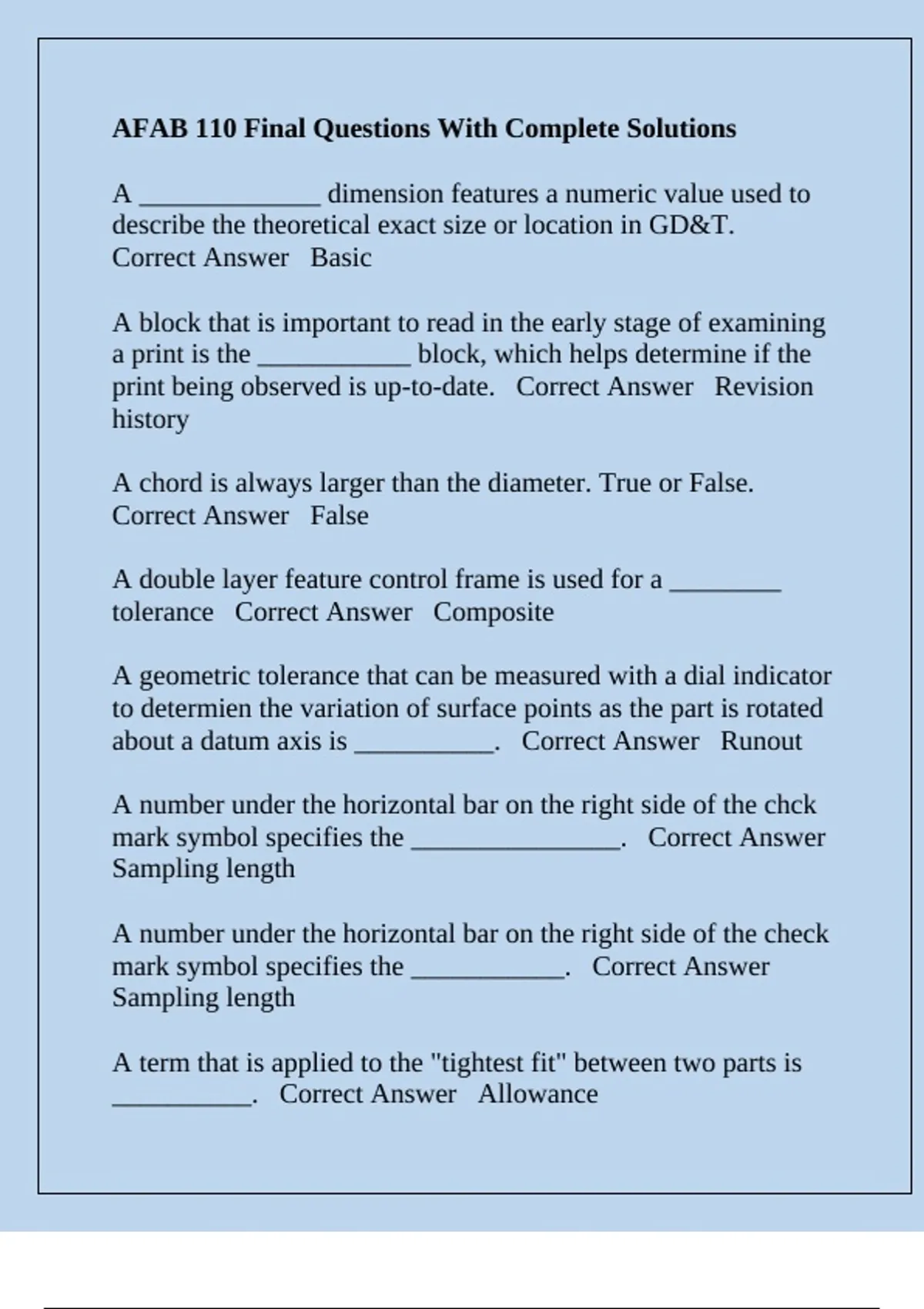

AFAB 110 Final Questions With Complete Solutions
A _____________ dimension features a numeric value used to
describe the theoretical exact size or location in GD&T.
Correct Answer Basic
A block that is important to read in the early stage of examining
a print is the ___________ block, which helps determine if the
print being observed is up-to-date. Correct Answer Revision
history
A chord is always larger than the diameter. True or False.
Correct Answer False
A double layer feature control frame is used for a ________
tolerance Correct Answer Composite
A geometric tolerance that can be measured with a dial indicator
to determien the variation of surface points as the part is rotated
about a datum axis is __________. Correct Answer Runout
A number under the horizontal bar on the right side of the chck
mark symbol specifies the _______________. Correct Answer
Sampling length
A number under the horizontal bar on the right side of the check
mark symbol specifies the ___________. Correct Answer
Sampling length
A term that is applied to the "tightest fit" between two parts is
__________. Correct Answer Allowance
, A voluntary guideline that establishes the method of
representation for prints, as well as other engineering practices,
is a ________________. Correct Answer Standard
A voluntary guidline that establishes the method of
representation for pritns, as well as other engineering practices,
is a ___________. Correct Answer Standard
American threads are specified by the number of threads per
inch. If there are 12 threads per inch, then the pitch is
____________. Correct Answer 0.083
American threads are specified by the number of threads per
inch. If there are 12 threads per inch, then the pitch of the
threads is _________. Correct Answer 0.83
An assembly drawing that provides the necessary information to
install or rect a piece of equipment is known as a(n) _________
assembly. Correct Answer Installation
An assembly drawing wherein the parts are separated from each
other to help show the correct method of assembly is known as
a(n) ____________ assembly Correct Answer Exploded
An electronic print or drawing that is basically composed of tiny
pixels or dots, not vectors, is considered a ________________.
Correct Answer Raster image
Another name for aligned sections is the offset section. True or
False. Correct Answer False
A _____________ dimension features a numeric value used to
describe the theoretical exact size or location in GD&T.
Correct Answer Basic
A block that is important to read in the early stage of examining
a print is the ___________ block, which helps determine if the
print being observed is up-to-date. Correct Answer Revision
history
A chord is always larger than the diameter. True or False.
Correct Answer False
A double layer feature control frame is used for a ________
tolerance Correct Answer Composite
A geometric tolerance that can be measured with a dial indicator
to determien the variation of surface points as the part is rotated
about a datum axis is __________. Correct Answer Runout
A number under the horizontal bar on the right side of the chck
mark symbol specifies the _______________. Correct Answer
Sampling length
A number under the horizontal bar on the right side of the check
mark symbol specifies the ___________. Correct Answer
Sampling length
A term that is applied to the "tightest fit" between two parts is
__________. Correct Answer Allowance
, A voluntary guideline that establishes the method of
representation for prints, as well as other engineering practices,
is a ________________. Correct Answer Standard
A voluntary guidline that establishes the method of
representation for pritns, as well as other engineering practices,
is a ___________. Correct Answer Standard
American threads are specified by the number of threads per
inch. If there are 12 threads per inch, then the pitch is
____________. Correct Answer 0.083
American threads are specified by the number of threads per
inch. If there are 12 threads per inch, then the pitch of the
threads is _________. Correct Answer 0.83
An assembly drawing that provides the necessary information to
install or rect a piece of equipment is known as a(n) _________
assembly. Correct Answer Installation
An assembly drawing wherein the parts are separated from each
other to help show the correct method of assembly is known as
a(n) ____________ assembly Correct Answer Exploded
An electronic print or drawing that is basically composed of tiny
pixels or dots, not vectors, is considered a ________________.
Correct Answer Raster image
Another name for aligned sections is the offset section. True or
False. Correct Answer False
