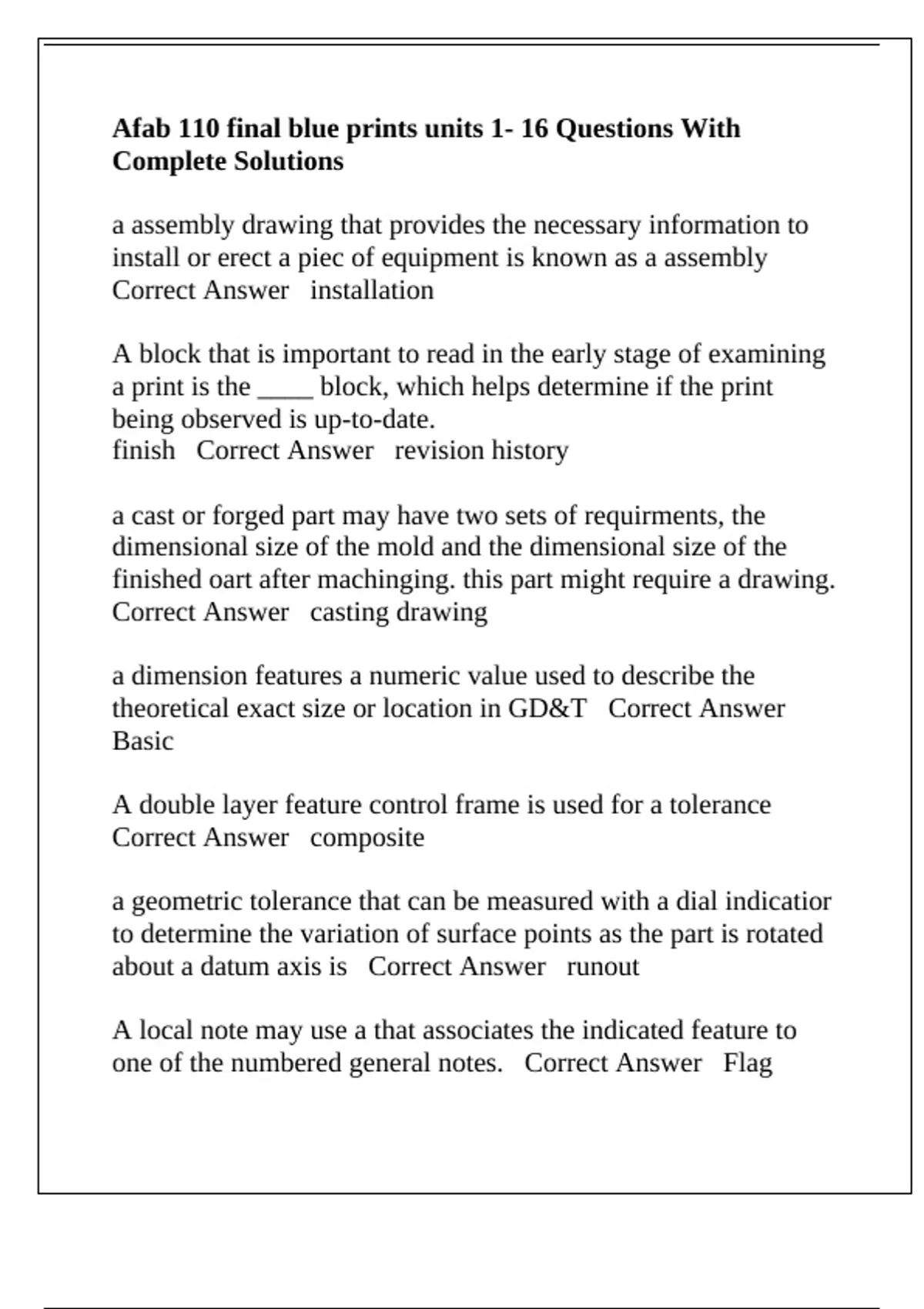

Afab 110 final blue prints units 1- 16 Questions With
Complete Solutions
a assembly drawing that provides the necessary information to
install or erect a piec of equipment is known as a assembly
Correct Answer installation
A block that is important to read in the early stage of examining
a print is the ____ block, which helps determine if the print
being observed is up-to-date.
finish Correct Answer revision history
a cast or forged part may have two sets of requirments, the
dimensional size of the mold and the dimensional size of the
finished oart after machinging. this part might require a drawing.
Correct Answer casting drawing
a dimension features a numeric value used to describe the
theoretical exact size or location in GD&T Correct Answer
Basic
A double layer feature control frame is used for a tolerance
Correct Answer composite
a geometric tolerance that can be measured with a dial indicatior
to determine the variation of surface points as the part is rotated
about a datum axis is Correct Answer runout
A local note may use a that associates the indicated feature to
one of the numbered general notes. Correct Answer Flag
, A number under the horizontal bar on the right side of the check
mark symbol specifies Correct Answer sampling length
a pattern of ridges and grooves cut into a cylindrical surface for
the purpose of providing a grip is called a Correct Answer
Knurl
A type of line that has a long dash alternating with two short
dashes is the ____ line. Correct Answer phantom
A type of line that helps the print reader analyze a section view
drawing to know where the part was sectioned is the ____ line.
Correct Answer cutting plane
an assembly drawing wherein that parts are seperated from each
other to help show the correct method of assembly is known as a
asembly Correct Answer exploded
an auxiliary view is projected onto a plane that is strategically
placed parallel to an inclined surface, thus creating a view that
shows the inclined surface in true size and shape Correct
Answer True
As lines are parallel to each other, arcs are ____ to each other.
Correct Answer tangent
Before copy machines, it was common to use ___ for the
original drawing, due to the durability and transparency of the
media, although plastic film was also common in some settings
Correct Answer vellum
