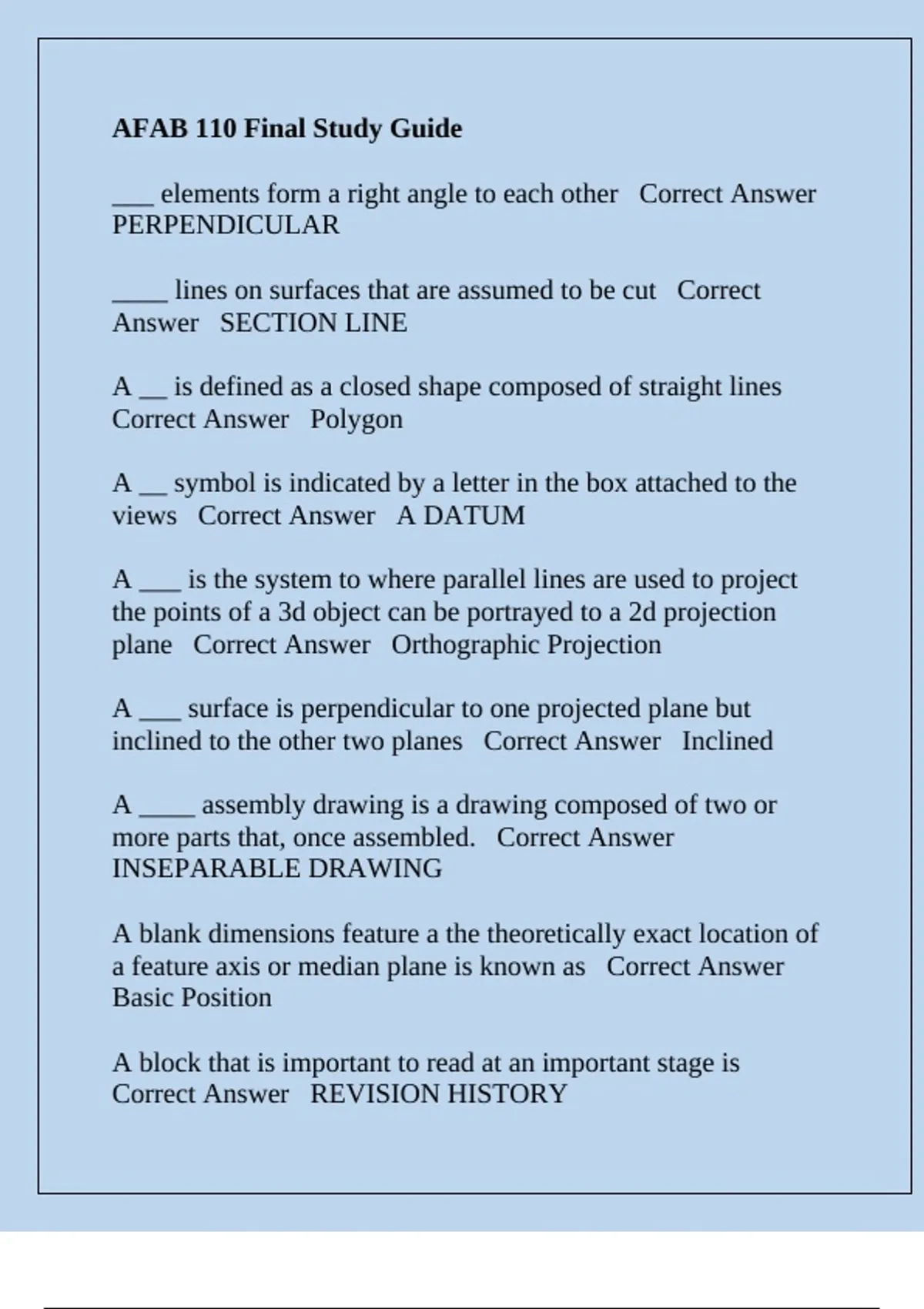

AFAB 110 Final Study Guide
___ elements form a right angle to each other Correct Answer
PERPENDICULAR
____ lines on surfaces that are assumed to be cut Correct
Answer SECTION LINE
A __ is defined as a closed shape composed of straight lines
Correct Answer Polygon
A __ symbol is indicated by a letter in the box attached to the
views Correct Answer A DATUM
A ___ is the system to where parallel lines are used to project
the points of a 3d object can be portrayed to a 2d projection
plane Correct Answer Orthographic Projection
A ___ surface is perpendicular to one projected plane but
inclined to the other two planes Correct Answer Inclined
A ____ assembly drawing is a drawing composed of two or
more parts that, once assembled. Correct Answer
INSEPARABLE DRAWING
A blank dimensions feature a the theoretically exact location of
a feature axis or median plane is known as Correct Answer
Basic Position
A block that is important to read at an important stage is
Correct Answer REVISION HISTORY
, A common reason to use an auxiliary view is to show the true
size and shape of a ____SURFACE Correct Answer
INCLINED
A cylindrical object Correct Answer ALIGNED SECTION
A DIHEDRAL angle is the ____ angle between two surfaces
Correct Answer TRUE
A general term for creating drawings of objects Correct
Answer DRAFTING
A geometric tolerance something on datum axis dial indicator
Correct Answer RUNOUT
A line segment within a circle connecting two points other than
through the center point Correct Answer CHORD
A term used in some companies for a temporary revision that
authorizes a deviation from the print is a___ Correct Answer
DRAWING DEVIATION
A tolerance method that incorporates the MIN or MAX note is
referred to as ____ Correct Answer SINGLE LIMIT
An assembly drawing contains only the ____ lines critical to
explaining how the parts are assembled Correct Answer
Hidden
