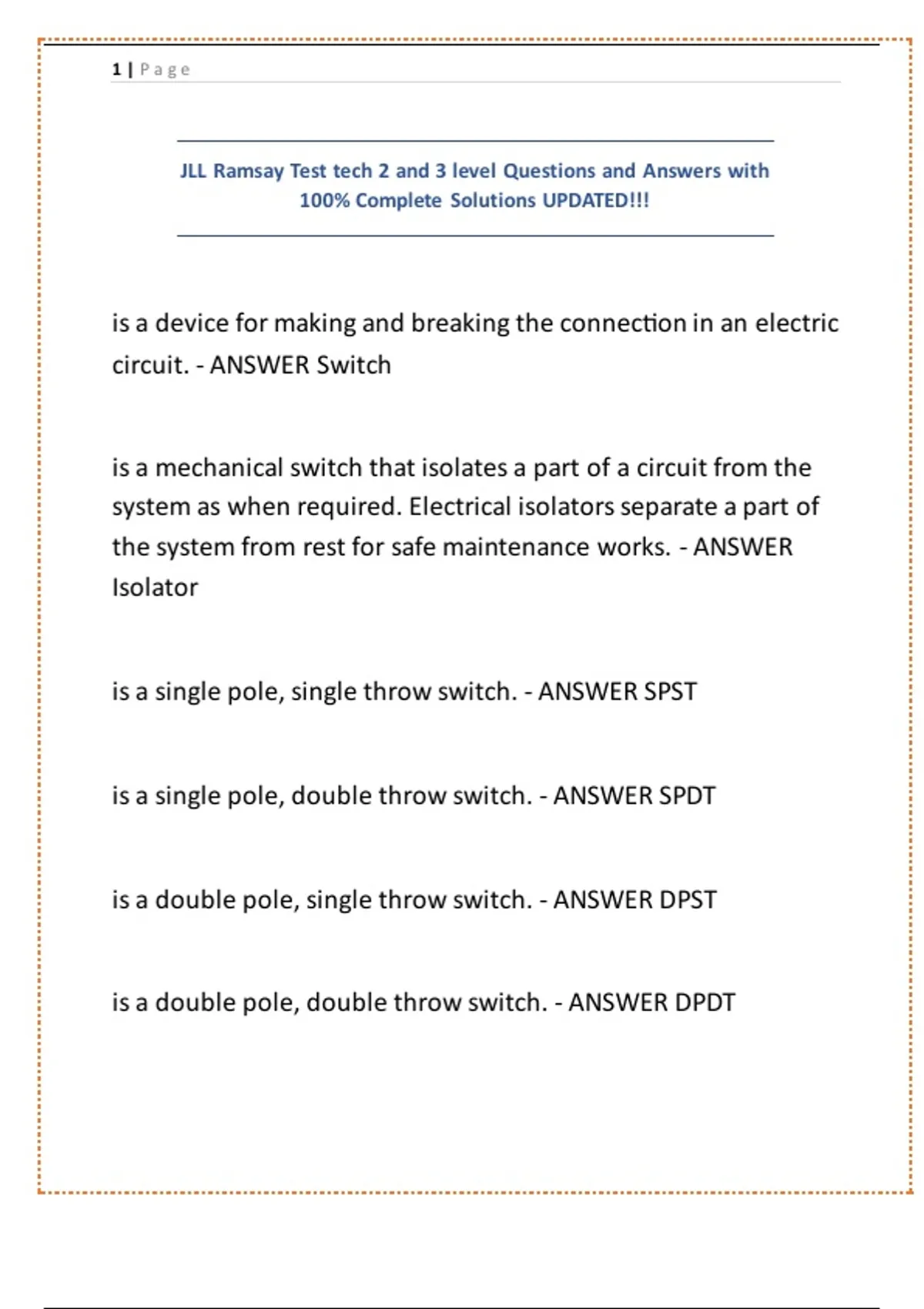

1|Page
JLL Ramsay Test tech 2 and 3 level Questions and Answers with
100% Complete Solutions UPDATED!!!
is a device for making and breaking the connection in an electric
circuit. - ANSWER Switch
is a mechanical switch that isolates a part of a circuit from the
system as when required. Electrical isolators separate a part of
the system from rest for safe maintenance works. - ANSWER
Isolator
is a single pole, single throw switch. - ANSWER SPST
is a single pole, double throw switch. - ANSWER SPDT
is a double pole, single throw switch. - ANSWER DPST
is a double pole, double throw switch. - ANSWER DPDT
,2|Page
- ANSWER single cell battery symbol
- ANSWER battery symbol
- ANSWER connecting wire symbol
- ANSWER Resistor symbol
- ANSWER switch (open) symbol
- ANSWER switch (closed) symbol
symbol is down arrow with lines - ANSWER earth electrode
symbol
is a metal plate or other conducting elements of electricity
partially buried in the earth to constitute and provide a reliable
conductive path of the fault current to the ground. - ANSWER
Earth electrode
, 3|Page
is a device containing electrodes immersed in an electrolyte,
used for generating current or for electrolysis. - ANSWER cell
is a container consisting of one or more cells, in which chemical
energy is converted into electricity and used as a source of
power. - ANSWER Battery
is a part of a field effect transistor from which carriers flow into
the inter electrode channel. - ANSWER source
includes ideal voltage source and ideal current source. An ideal
source is a theoretical concept of an electrical current or
voltage supply (such as a battery) that has no losses and is a
perfect voltage or current supply. Ideal sources are used for
analytical purposes because they cannot occur in nature. -
ANSWER ideal source
is a device that has resistance to the passage of electrical
current. - ANSWER Resistor
