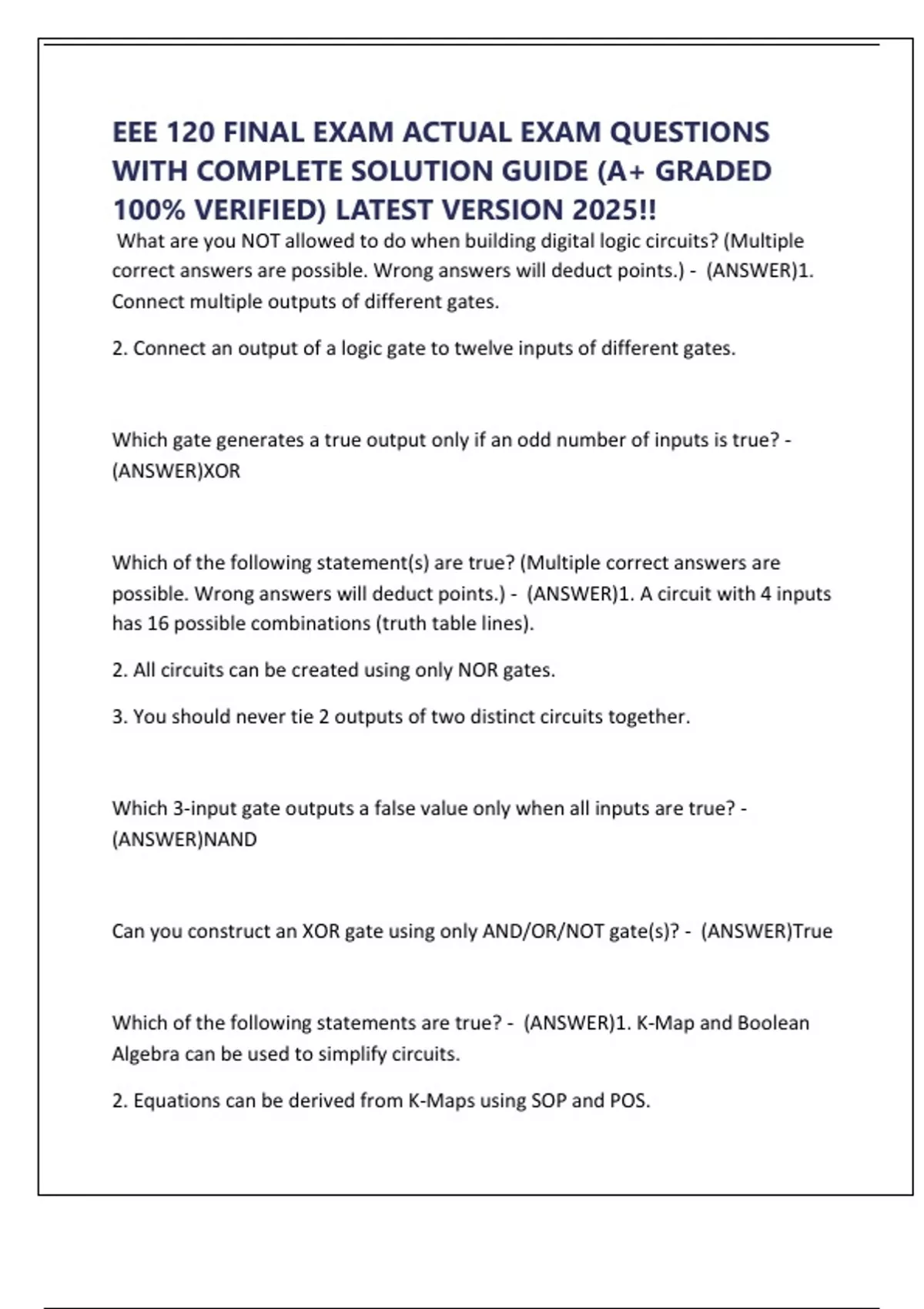

EEE 120 FINAL EXAM ACTUAL EXAM QUESTIONS
WITH COMPLETE SOLUTION GUIDE (A+ GRADED
100% VERIFIED) LATEST VERSION 2025!!
What are you NOT allowed to do when building digital logic circuits? (Multiple
correct answers are possible. Wrong answers will deduct points.) - (ANSWER)1.
Connect multiple outputs of different gates.
2. Connect an output of a logic gate to twelve inputs of different gates.
Which gate generates a true output only if an odd number of inputs is true? -
(ANSWER)XOR
Which of the following statement(s) are true? (Multiple correct answers are
possible. Wrong answers will deduct points.) - (ANSWER)1. A circuit with 4 inputs
has 16 possible combinations (truth table lines).
2. All circuits can be created using only NOR gates.
3. You should never tie 2 outputs of two distinct circuits together.
Which 3-input gate outputs a false value only when all inputs are true? -
(ANSWER)NAND
Can you construct an XOR gate using only AND/OR/NOT gate(s)? - (ANSWER)True
Which of the following statements are true? - (ANSWER)1. K-Map and Boolean
Algebra can be used to simplify circuits.
2. Equations can be derived from K-Maps using SOP and POS.
, Which gate on the list is considered "functionally complete", which means that
you can construct a NOT gate, an AND gate and an OR gate using a combination of
only this particular gate? - (ANSWER)NAND
Which is the minimum SOP expression for the function F(X,Y,Z) = (X + Y')' Z + (XZ)'
+ Y ? No partial credit is granted for incomplete simplifications. - (ANSWER)X' + Y
+ Z'
Convert the following unsigned binary number to decimal number: 1010 1010 -
(ANSWER)170
How many binary digits (bits) does a Byte have? - (ANSWER)8
Which is the correct hexadecimal number corresponding to the binary number
1010 1011? - (ANSWER)AB
Convert the following decimal number to hexadecimal: 88 - (ANSWER)58
Which is the correct 8-bit binary number corresponding to the decimal number
88? - (ANSWER)01011000
What is the decimal number -54 in signed binary. - (ANSWER)1001010
