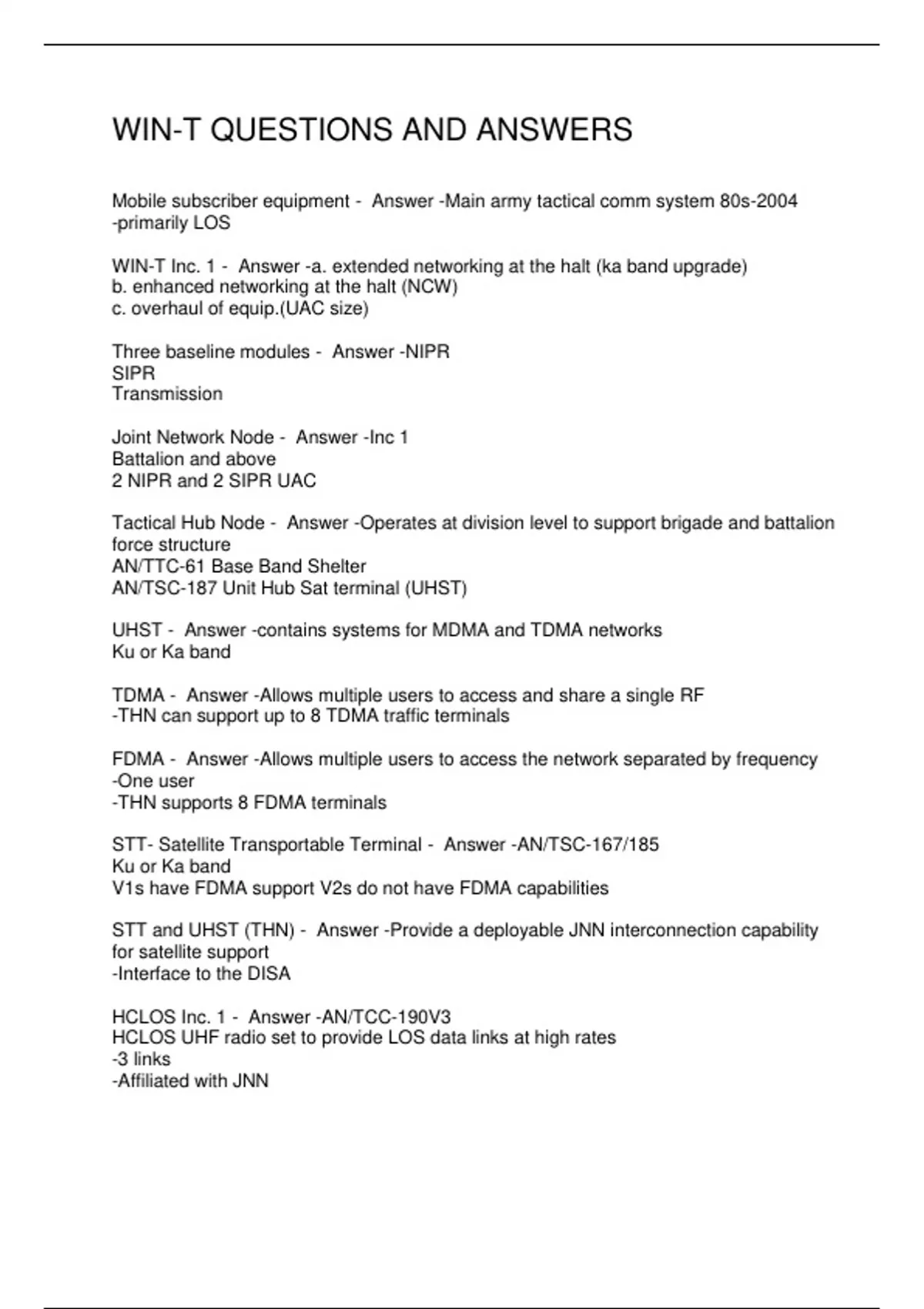

WIN-T QUESTIONS AND ANSWERS
Mobile subscriber equipment - Answer -Main army tactical comm system 80s-2004
-primarily LOS
WIN-T Inc. 1 - Answer -a. extended networking at the halt (ka band upgrade)
b. enhanced networking at the halt (NCW)
c. overhaul of equip.(UAC size)
Three baseline modules - Answer -NIPR
SIPR
Transmission
Joint Network Node - Answer -Inc 1
Battalion and above
2 NIPR and 2 SIPR UAC
Tactical Hub Node - Answer -Operates at division level to support brigade and battalion
force structure
AN/TTC-61 Base Band Shelter
AN/TSC-187 Unit Hub Sat terminal (UHST)
UHST - Answer -contains systems for MDMA and TDMA networks
Ku or Ka band
TDMA - Answer -Allows multiple users to access and share a single RF
-THN can support up to 8 TDMA traffic terminals
FDMA - Answer -Allows multiple users to access the network separated by frequency
-One user
-THN supports 8 FDMA terminals
STT- Satellite Transportable Terminal - Answer -AN/TSC-167/185
Ku or Ka band
V1s have FDMA support V2s do not have FDMA capabilities
STT and UHST (THN) - Answer -Provide a deployable JNN interconnection capability
for satellite support
-Interface to the DISA
HCLOS Inc. 1 - Answer -AN/TCC-190V3
HCLOS UHF radio set to provide LOS data links at high rates
-3 links
-Affiliated with JNN
