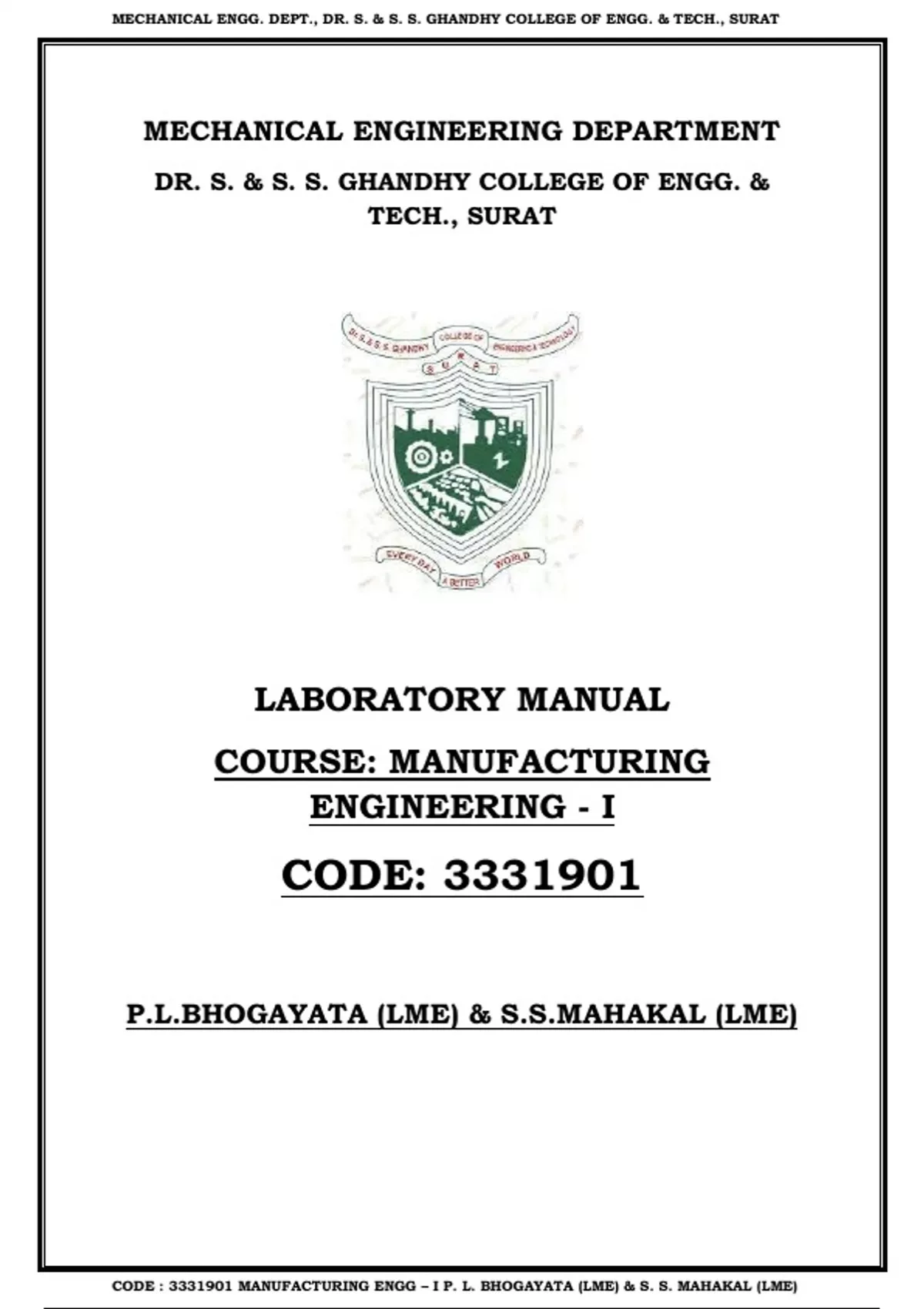

MECHANICAL ENGINEERING DEPARTMENT

MECHANICAL ENGG. DEPT., DR. S. & S. S. GHANDHY COLLEGE OF ENGG. & TECH., SURAT




MECHANICAL ENGINEERING DEPARTMENT
DR. S. & S. S. GHANDHY COLLEGE OF ENGG. &
TECH., SURAT




LABORATORY MANUAL
COURSE: MANUFACTURING
ENGINEERING - I

CODE: 3331901


P.L.BHOGAYATA (LME) & S.S.MAHAKAL (LME)




CODE : 3331901 MANUFACTURING ENGG – I P. L. BHOGAYATA (LME) & S. S. MAHAKAL (LME)

,MECHANICAL ENGG. DEPT., DR. S. & S. S. GHANDHY COLLEGE OF ENGG. & TECH., SURAT




CERTIFICATE




MECHANICAL ENGINEERING DEPARTMENT
DR. S. & S. S. GHANDHY COLLEGE OF ENGG. &
TECH., SURAT



CODE : 3331901
COURSE : MANUFACTURING TECHNOLOGY - I
This is to certify that following term work has been
completed by student name : …….……………………………………
Enrollment No.………………………………………….. in branch of
……………………....Engineering, term…….…, semester…….…..…,
division…………..….As per GTU, Ahmedabad syllabus.




Sign. of Course teacher Sign. Of HOD/Principal


CODE : 3331901 MANUFACTURING ENGG – I P. L. BHOGAYATA (LME) & S. S. MAHAKAL (LME)

,MECHANICAL ENGG. DEPT., DR. S. & S. S. GHANDHY COLLEGE OF ENGG. & TECH., SURAT



INDEX
MECHANICAL ENGINEERING DEPARTMENT
DR. S. & S. S. GHANDHY COLLEGE OF ENGG. & TECH.,
SURAT
SUBJECT CODE: 3331901 SUBJECT NAME: MANUFACTURING ENGG. - I

NAME OF STUDENT:.....................................................................................

EN. NO. :............................. BATCH........... SEM.:…………... TERM :…………

BRANCH : ………………………..BATCH TEACHER NAME…………………….…..



SR. PAGE PAGE MAR MA
NO.
PRACTICAL PURPOSE DATE FROM TO KS RKS
SIGN

1 FORGING JOB 15

2 SPINNING JOB 10
INDUSTRY VISIT REPORT –
3 10
ROLLING MILL
DEMONSTRATION OF
4 METAL 10
MELTING AND CASTING
5 PATTEREN MAKING JOB 15

6 MOULD PREPARATION 15
INDUSTRY VISIT REPORT –
7 10
FOUNDRY SHOP
8 ARC WELDING JOB 20

9 GAS WELDING JOB 15

10 RESISTANCE WELDING JOB 10
SOLDERING AND BRAZING
11 15
JOB
INDUSTRY VISIT REPORT –
12 10
FABRICATION SHOP
SCHOOL WITHIN SCHOOL
13 (REPORT WORD FILE AND 15
PRESENTATION PPT FILE)
TOTAL 170
PRACTICAL (PA)
60
CONVERSION


Sign. of course teacher

CODE : 3331901 MANUFACTURING ENGG – I P. L. BHOGAYATA (LME) & S. S. MAHAKAL (LME)

, MECHANICAL ENGG. DEPT., DR. S. & S. S. GHANDHY COLLEGE OF ENGG. & TECH., SURAT




EXP.NO. 01 HOURS: 06 TYPE Performance

TITLE: FORGING JOB

STUDENT ACTIVITY:

1. Learns about hot & cold smithy process.
2. Student prepares one job by hot smithy & forging process.
3. Student prepares one job by cold forging process at.

Smithy process




 Blacksmiths work by heating pieces of wrought iron or steel until the
metal becomes soft enough for shaping with hand tools, such as a
hammer, an anvil and a chisel. Heating generally takes place in coal,
charcoal or coke.
 Color is important for indicating the temperature and workability of
the metal. As iron heats to higher temperatures, it first glows red,
then orange, yellow, and finally white.
 The ideal heat for most forging is the bright yellow-orange color that
indicates forging heat. Because they must be able to see the glowing
color of the metal, some blacksmiths work in dim, low-light
conditions, but most work in well-lit conditions.
 The key is to have consistent lighting, but not too bright. Direct
sunlight obscures the colors.
 Forging—the process smiths use to shape metal by hammering—
differs from machining in that forging does not remove material.
Instead, the smith hammers the iron into shape.
