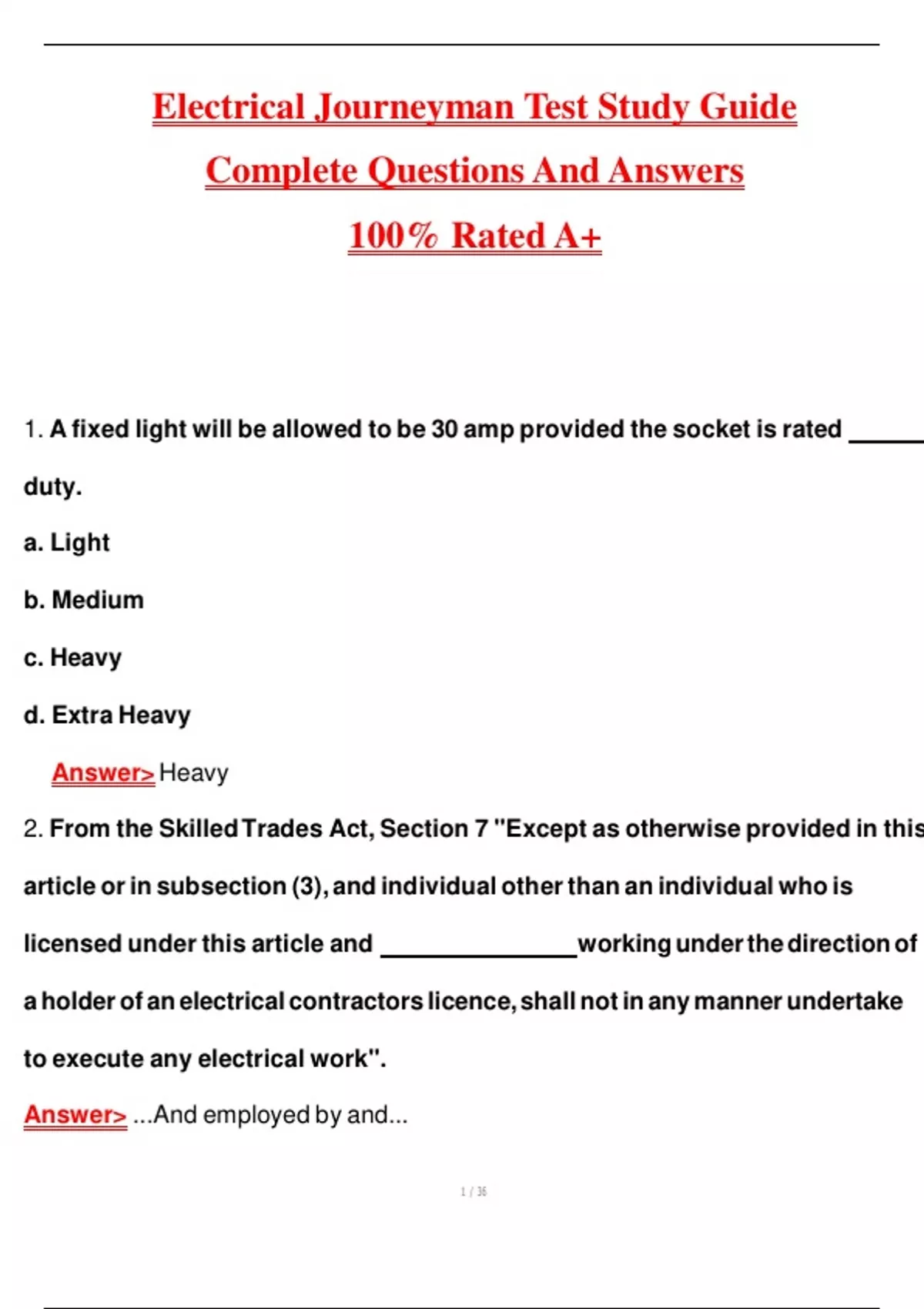

Electrical Journeyman Test Study Guide
Complete Questions And Answers
100% Rated A+
1. A fixed light will be allowed to be 30 amp provided the socket is rated
duty.
a. Light
b. Medium
c. Heavy
d. Extra Heavy
Answer> Heavy
2. From the Skilled Trades Act, Section 7 "Except as otherwise provided in this
article or in subsection (3), and individual other than an individual who is
licensed under this article and working under the direction of
a holder of an electrical contractors licence, shall not in any manner undertake
to execute any electrical work".
Answer> ...And employed by and...
,3. A box with (2) 14/3 NM, one yoke, and a clamp requires a minimum or
cubic inches.
a. 16
b. 18
c. 20
d. 22
Answer> 20
4. NM Cable in a 2x4x2.5 plastic box will not require a cable clamp if secured
within inches of the box.
a. 8
b. 12
c. 16
d. 20
Answer>8
5. A box with #10 AWG THHN will require a free space of inches.
a. 2
b. 2.25
c. 2.5
d. 3
, Answer> 2.5 (See Table 314.16 (B).)
6. A mobile home with 100 amp service will require service conductors of
AWG.
a. #4
b. #3
c. #2
d. #1
Answer>#4 (See 550.33 (B) and 310.15 (B)(7).)
7. A service with (4) 4" PVC conduits with (4) 800KCMIL feeder in each will
require a main bonding jumper of what AWG?
a. 4/0
b. 1/0
c. 250 KCMIL
d. 500 KCMIL
Answer> 500 KCMIL (See Table 250.102 (C)(1) and Chapter 9 Table 8
8. A conduit protecting the grounding electrode conductor shall be bonded to
the at both ends.
Answer> Grounding Electrode Conductor (See 250.66(E)(1).)
9. A grounding electrode encased in concrete shall be ft long and
, in circumference.
a. 8ft, 5/8"
b. 12ft, 12
D"
c. 20ft, 12
D"
d. Something else...
Answer> 20ft, 1D2" (See 250.52(A)(3).)
10. The required outlet for an in-ground pool shall be mounted
a. On the wall of a building 21 feet from waters edge
b. On a balcony 8 feet above water level
c. On a support 3 feet from waters edge
d. On a post 6'6" above grade level
Answer> On a post 6'6" above grade level (See 680.22(A)(1).)
11. Permanently installed pool motors shall have a cord length of
a. 3ft
b. 6ft
c. 12ft
d. 20ft
Answer>3ft (See 680.21 (A)(3).)
12. The conductor feeding a wet-niche pool light will be
