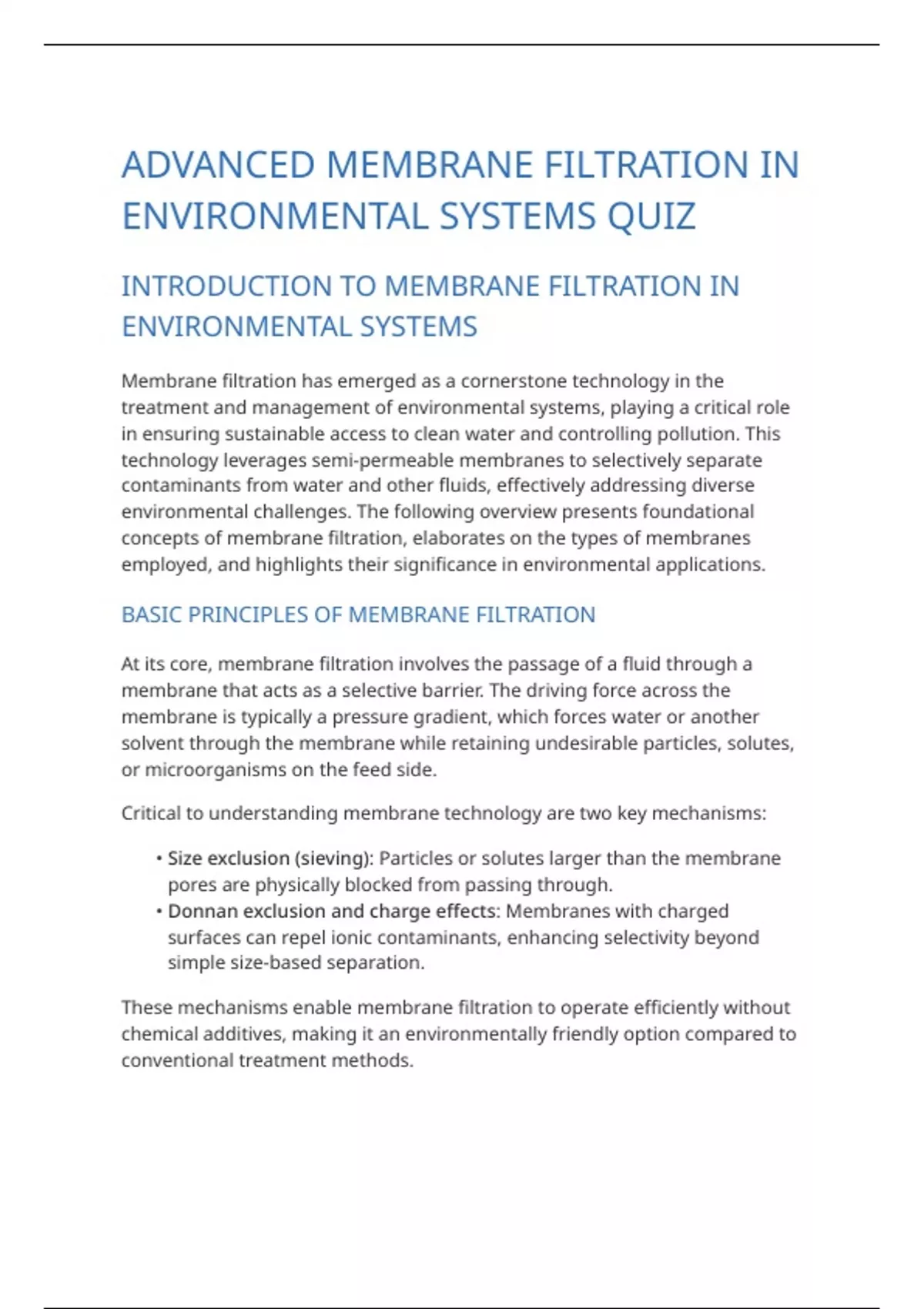

ADVANCED MEMBRANE FILTRATION IN
ENVIRONMENTAL SYSTEMS QUIZ
INTRODUCTION TO MEMBRANE FILTRATION IN
ENVIRONMENTAL SYSTEMS
Membrane filtration has emerged as a cornerstone technology in the
treatment and management of environmental systems, playing a critical role
in ensuring sustainable access to clean water and controlling pollution. This
technology leverages semi-permeable membranes to selectively separate
contaminants from water and other fluids, effectively addressing diverse
environmental challenges. The following overview presents foundational
concepts of membrane filtration, elaborates on the types of membranes
employed, and highlights their significance in environmental applications.
BASIC PRINCIPLES OF MEMBRANE FILTRATION
At its core, membrane filtration involves the passage of a fluid through a
membrane that acts as a selective barrier. The driving force across the
membrane is typically a pressure gradient, which forces water or another
solvent through the membrane while retaining undesirable particles, solutes,
or microorganisms on the feed side.
Critical to understanding membrane technology are two key mechanisms:
• Size exclusion (sieving): Particles or solutes larger than the membrane
pores are physically blocked from passing through.
• Donnan exclusion and charge effects: Membranes with charged
surfaces can repel ionic contaminants, enhancing selectivity beyond
simple size-based separation.
These mechanisms enable membrane filtration to operate efficiently without
chemical additives, making it an environmentally friendly option compared to
conventional treatment methods.
,CLASSIFICATION AND TYPES OF MEMBRANE FILTRATION
Membrane filtration technologies are categorized primarily by their pore size
and operational pressures, each suitable for targeting different contaminants
and treatment objectives:
Typical
Membrane Pore Operating Environmental
Target Contaminants
Type Size Pressure Applications
Range
Pre-treatment for
drinking water,
Microfiltration 0.1 – 10 Bacteria, suspended
0.1 – 2 bar wastewater solids
(MF) µm solids, some protozoa
removal, algae
separation
Advanced wastewater
Viruses, colloids,
Ultrafiltration 0.01 – treatment, reuse
1 – 5 bar macromolecules,
(UF) 0.1 µm processes, virus
proteins
removal
Softening, partial
Divalent and larger
Nanofiltration 1 – 10 desalination, removal
4 – 15 bar ions, organic
(NF) nm of natural organic
molecules, pesticides
matter
Desalination,
Monovalent ions,
Reverse groundwater
<1 nm 15 – 70 bar dissolved salts, heavy
Osmosis (RO) remediation, advanced
metals, small organics
wastewater reuse
ROLES OF MEMBRANE FILTRATION IN TREATING ENVIRONMENTAL
CONTAMINANTS
Membrane filtration technologies are tailored to remove a broad spectrum of
environmental contaminants, enhancing water quality through the following
key roles:
• Suspended solids and turbidity reduction: MF and UF membranes
effectively remove particulate matter and turbidity, improving water
clarity and protecting downstream processes.
• Pathogen removal: UF and NF membranes provide reliable barriers
against bacteria, viruses, and protozoa, critical for potable water
supplies and safe wastewater discharge.
, • Organic matter and micropollutant control: NF and RO membranes
substantially reduce natural organic matter, pesticides, pharmaceuticals,
and other emerging contaminants, safeguarding ecosystems and
human health.
• Salinity and dissolved solids removal: RO membranes enable
desalination and the treatment of industrial effluents by removing
dissolved salts and heavy metals, facilitating water reuse and minimizing
environmental discharge.
KEY TERMINOLOGY IN MEMBRANE FILTRATION
To understand membrane technologies deeply, familiarity with the following
technical terms is essential:
• Permeate: The fluid that passes through the membrane, typically
purified water.
• Feed (or influent): The untreated fluid that enters the membrane
system.
• Retentate (or concentrate): The portion of the feed stream rejected by
the membrane, containing retained contaminants.
• Flux: The volumetric flow rate of permeate per unit membrane surface
area, usually expressed in liters per square meter per hour (LMH).
• Rejection rate: The percentage of a specific contaminant retained by the
membrane.
• Fouling: The accumulation of particles and solutes on or within the
membrane surface that degrades performance over time.
IMPORTANCE OF MEMBRANE FILTRATION IN SUSTAINABLE
ENVIRONMENTAL MANAGEMENT
Membrane filtration technologies offer multiple advantages that align closely
with goals of sustainable environmental stewardship:
• Water conservation and reuse: By effectively treating wastewater and
brackish water, membrane systems enable water recycling, reducing
dependence on freshwater resources.
• Pollution control: Membranes help prevent the discharge of hazardous
contaminants into natural water bodies by enabling high-level removal
of pathogenic and chemical pollutants.
• Energy efficiency advancements: Ongoing innovations aim to reduce
the energy intensity of membrane processes, thereby decreasing overall
environmental footprints.
, • Modular and scalable designs: Membrane systems can be adapted to a
wide range of scales, from small decentralized units to large municipal
plants, offering flexible solutions tailored to local environmental
challenges.
• Minimal chemical use: Unlike many traditional treatment methods,
membrane filtration generally requires few or no chemicals, reducing
secondary pollution risks.
Consequently, membrane filtration stands as a transformative technology in
modern environmental engineering, underpinning efforts to achieve clean
water goals, comply with stringent discharge regulations, and address
emerging contaminants of concern.
FUNDAMENTAL MEMBRANE PROPERTIES AND
MATERIALS
Understanding the fundamental properties and materials of membranes is
critical for optimizing membrane filtration systems in environmental
applications. Membrane performance is largely governed by physicochemical
characteristics such as pore size, permeability, selectivity, fouling propensity,
and mechanical stability. Meanwhile, the choice of membrane material
directly influences these properties and determines operational lifespan,
fouling resistance, and suitability for specific environmental conditions.
PHYSICOCHEMICAL PROPERTIES OF MEMBRANES
Pore Size and Distribution
The pore size of a membrane defines the cutoff for particle or molecule
separation and serves as a primary classification criterion for membrane
types: microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse
osmosis (RO).
• Microfiltration (0.1–10 µm): Removes suspended solids, bacteria, and
large colloids.
• Ultrafiltration (0.01–0.1 µm): Targets viruses, macromolecules, and
some colloidal matter.
• Nanofiltration (1–10 nm): Rejects divalent ions and small organic
molecules.
• Reverse Osmosis (<1 nm): Blocks monovalent salts and most dissolved
solids.
