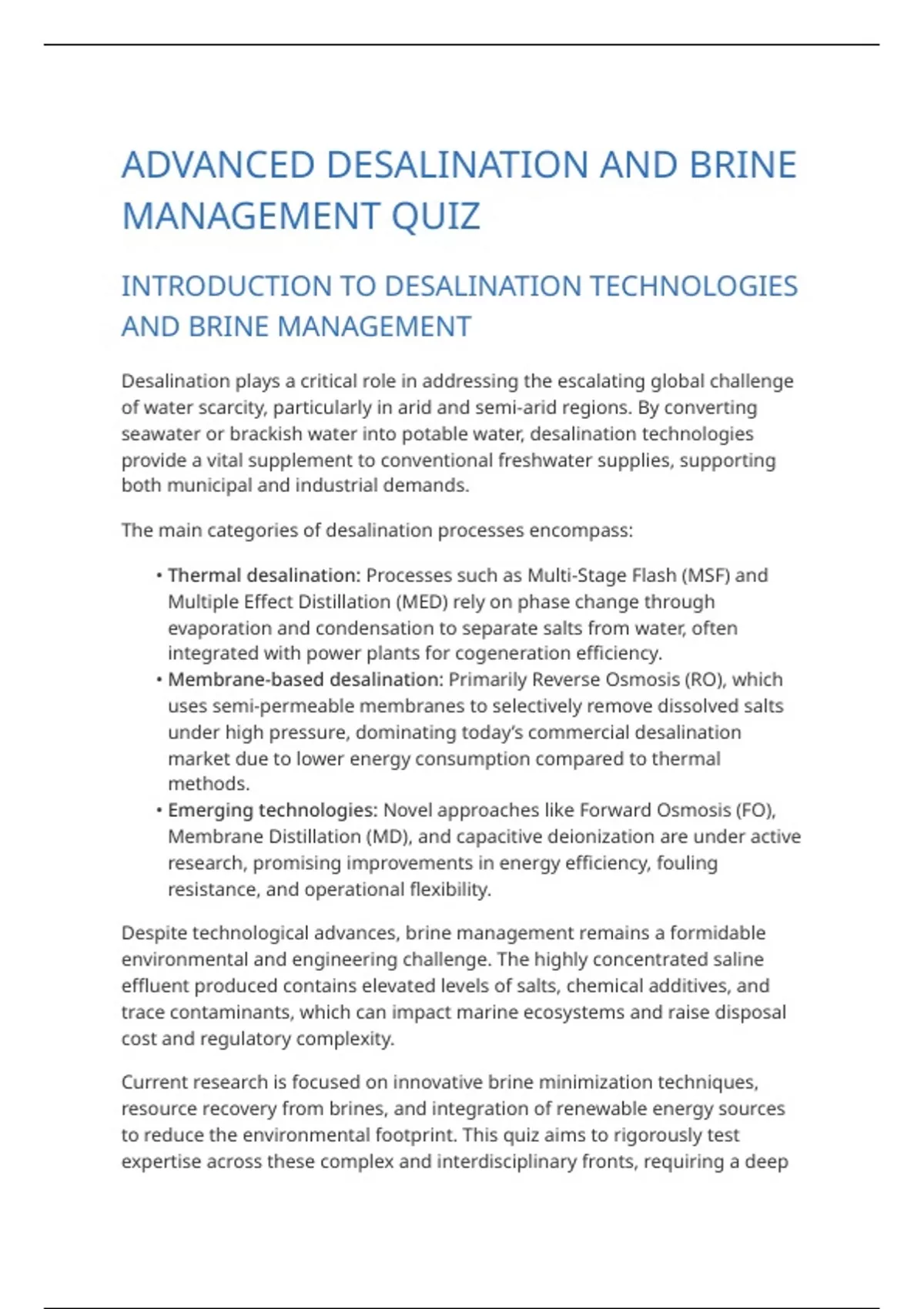

ADVANCED DESALINATION AND BRINE
MANAGEMENT QUIZ
INTRODUCTION TO DESALINATION TECHNOLOGIES
AND BRINE MANAGEMENT
Desalination plays a critical role in addressing the escalating global challenge
of water scarcity, particularly in arid and semi-arid regions. By converting
seawater or brackish water into potable water, desalination technologies
provide a vital supplement to conventional freshwater supplies, supporting
both municipal and industrial demands.
The main categories of desalination processes encompass:
• Thermal desalination: Processes such as Multi-Stage Flash (MSF) and
Multiple Effect Distillation (MED) rely on phase change through
evaporation and condensation to separate salts from water, often
integrated with power plants for cogeneration efficiency.
• Membrane-based desalination: Primarily Reverse Osmosis (RO), which
uses semi-permeable membranes to selectively remove dissolved salts
under high pressure, dominating today’s commercial desalination
market due to lower energy consumption compared to thermal
methods.
• Emerging technologies: Novel approaches like Forward Osmosis (FO),
Membrane Distillation (MD), and capacitive deionization are under active
research, promising improvements in energy efficiency, fouling
resistance, and operational flexibility.
Despite technological advances, brine management remains a formidable
environmental and engineering challenge. The highly concentrated saline
effluent produced contains elevated levels of salts, chemical additives, and
trace contaminants, which can impact marine ecosystems and raise disposal
cost and regulatory complexity.
Current research is focused on innovative brine minimization techniques,
resource recovery from brines, and integration of renewable energy sources
to reduce the environmental footprint. This quiz aims to rigorously test
expertise across these complex and interdisciplinary fronts, requiring a deep
,understanding of thermodynamics, membrane science, environmental
impact assessment, and process optimization.
ADVANCED FUNDAMENTALS OF DESALINATION
PROCESSES
Desalination technologies fundamentally rely on the principles of
thermodynamics, mass transfer, and membrane science to separate salts and
impurities from water. The following sections elucidate the key scientific and
engineering concepts behind the most widely employed desalination
methods: Multi-Stage Flash (MSF), Multi-Effect Distillation (MED), Reverse
Osmosis (RO), and Electrodialysis (ED).
THERMAL DESALINATION: MSF AND MED
Both MSF and MED processes utilize the latent heat of vaporization to drive
water separation. In MSF, seawater is heated and introduced into a series of
chambers where a rapid pressure drop causes instantaneous vaporization
("flashing"). The vapor is condensed on heat exchanger tubes, producing
distilled water. Thermodynamically, MSF operates under multiple stages to
optimize energy recovery by successive flashing at decreasing pressure and
temperature levels.
MED involves multiple evaporator effects in which seawater is sequentially
evaporated and condensed over a series of vessels, each operating at a lower
pressure and temperature. This cascading use of vapor latent heat increases
thermal efficiency over single-stage distillation.
The overall energy consumption of thermal desalination depends on the
thermal efficiency and heat recovery effectiveness, typically expressed in
terms of specific energy consumption (SEC) measured in kWh/m3. Optimizing
heat integration and minimizing entropy generation are critical for enhancing
process sustainability.
MEMBRANE-BASED DESALINATION: RO AND ELECTRODIALYSIS
Reverse Osmosis employs hydraulic pressure exceeding the osmotic pressure
to force seawater through a semi-permeable membrane, allowing water
molecules to permeate while rejecting dissolved salts and contaminants.
Membrane materials, usually thin-film composites, exhibit selective
permeability controlled by polymer chemistry and pore size.
,RO system efficiency hinges on membrane permeability, salt rejection rate,
fouling resistance, and energy recovery devices that recapture pressure
energy from the brine stream. The thermodynamic minimum work of
separation sets a theoretical lower bound on energy consumption, while real
systems operate at 2-4 times this minimum due to mechanical and hydraulic
losses.
Electrodialysis utilizes electrically charged membranes to selectively transport
ions from saline feedwater under an applied electric potential. Cation- and
anion-exchange membranes alternate between electrodes, enabling salt
removal by migration. ED is most effective for brackish waters with lower
salinity and is valued for its modularity and ease of scaling.
FACTORS AFFECTING EFFICIENCY AND SUSTAINABILITY
• Feed Water Quality: Higher salinity and presence of scaling ions
increase energy demands and fouling potential.
• Membrane Fouling and Scaling: Biological, organic, and inorganic
deposits reduce permeability and salt rejection, necessitating
pretreatment and cleaning regimes.
• Energy Source and Recovery: Integration with renewable energy (solar,
wind) and efficient energy recovery devices reduces carbon footprint.
• Process Optimization: Advanced control strategies, real-time
monitoring, and hybrid configurations (thermal + membrane) enhance
overall performance.
THERMAL DESALINATION TECHNOLOGIES:
TECHNICAL QUESTIONS
This section contains challenging quiz questions designed to assess advanced
understanding of thermal desalination processes such as Multi-Stage Flash
(MSF), Multiple Effect Distillation (MED), and Vapor Compression (VC). The
questions probe theoretical concepts, design parameters, thermodynamic
principles, and applied problem-solving skills critical for experts in the field.
1. Multi-Stage Flash (MSF) Design Calculation
Consider an MSF plant operating with 15 stages and a top brine
temperature of 120°C. The seawater feed enters at 30°C. Assuming an
, average temperature difference of 3.5°C between stages, estimate the
brine temperature at the 10th stage. Select the correct answer:
◦ A) 85°C
◦ B) 92.5°C
◦ C) 105°C
◦ D) 102.5°C
2. Heat Transfer Mechanisms in MED
In an MED system, vapor generated in one effect condenses on tubes
carrying seawater in the subsequent effect. Which of the following best
describes the dominant heat transfer mechanism in this condensation
process?
◦ A) Forced convection
◦ B) Natural convection
◦ C) Film condensation heat transfer
◦ D) Radiation heat transfer
3. Scaling Potential and Prevention
When operating at elevated temperatures, scaling in thermal
desalination units is predominantly caused by:
◦ A) Calcium carbonate precipitation due to decreased solubility at
higher temperatures
◦ B) Increased solubility of salt minerals
◦ C) Biological fouling enhanced by heat
◦ D) Membrane degradation
Explain the most effective operational strategy to minimize scaling risk
in thermal desalination.
4. Thermodynamic Limits of Vapor Compression
Explain why vapor compression desalination approaches the
thermodynamic limit of least work of separation compared to MSF and
MED. Discuss how mechanical vapor recompression affects the specific
energy consumption (SEC).
5. Energy Balance in an MED Plant
