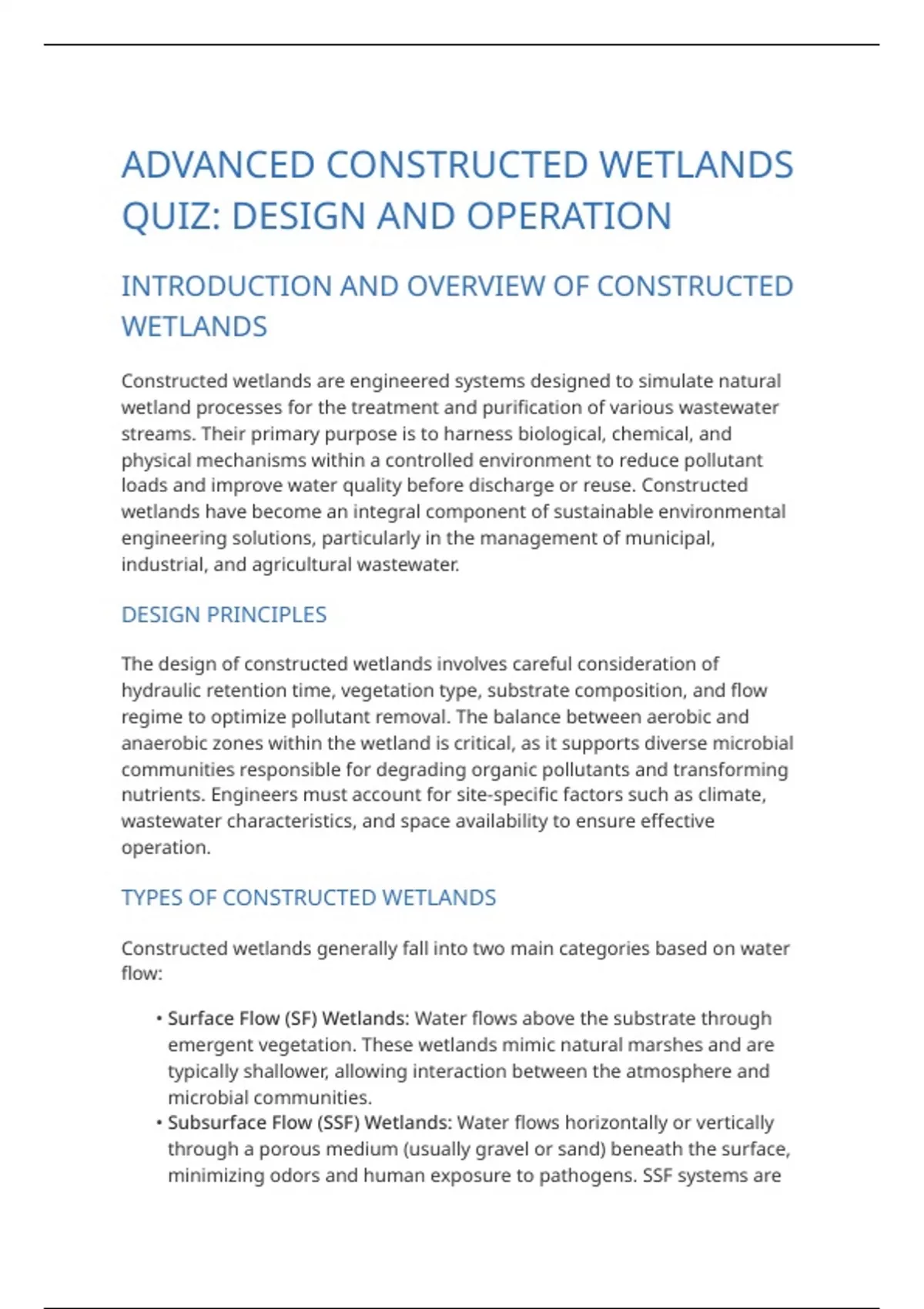

ADVANCED CONSTRUCTED WETLANDS
QUIZ: DESIGN AND OPERATION
INTRODUCTION AND OVERVIEW OF CONSTRUCTED
WETLANDS
Constructed wetlands are engineered systems designed to simulate natural
wetland processes for the treatment and purification of various wastewater
streams. Their primary purpose is to harness biological, chemical, and
physical mechanisms within a controlled environment to reduce pollutant
loads and improve water quality before discharge or reuse. Constructed
wetlands have become an integral component of sustainable environmental
engineering solutions, particularly in the management of municipal,
industrial, and agricultural wastewater.
DESIGN PRINCIPLES
The design of constructed wetlands involves careful consideration of
hydraulic retention time, vegetation type, substrate composition, and flow
regime to optimize pollutant removal. The balance between aerobic and
anaerobic zones within the wetland is critical, as it supports diverse microbial
communities responsible for degrading organic pollutants and transforming
nutrients. Engineers must account for site-specific factors such as climate,
wastewater characteristics, and space availability to ensure effective
operation.
TYPES OF CONSTRUCTED WETLANDS
Constructed wetlands generally fall into two main categories based on water
flow:
• Surface Flow (SF) Wetlands: Water flows above the substrate through
emergent vegetation. These wetlands mimic natural marshes and are
typically shallower, allowing interaction between the atmosphere and
microbial communities.
• Subsurface Flow (SSF) Wetlands: Water flows horizontally or vertically
through a porous medium (usually gravel or sand) beneath the surface,
minimizing odors and human exposure to pathogens. SSF systems are
, further divided into horizontal subsurface flow (HSSF) and vertical flow
(VF) wetlands, each with distinct operational characteristics.
POLLUTANT REMOVAL MECHANISMS
Constructed wetlands remove contaminants through complex and
interrelated processes, such as:
• Physical filtration and sedimentation of suspended solids.
• Microbial biodegradation of organic matter in aerobic and anaerobic
zones.
• Plant uptake of nutrients like nitrogen and phosphorus.
• Chemical transformations including adsorption, precipitation, and
volatilization.
ADVANTAGES AND LIMITATIONS
Among their advantages, constructed wetlands offer low operational costs,
energy efficiency, habitat creation, and aesthetic benefits. However,
challenges include sensitivity to climatic extremes, variable pollutant removal
efficiency, land area requirements, and the need for periodic maintenance to
prevent clogging or vegetation overgrowth. Understanding these factors is
essential for the successful design and long-term operation of constructed
wetlands.
QUIZ SECTION 1: ADVANCED DESIGN PRINCIPLES
OF CONSTRUCTED WETLANDS
1. Hydrology and Retention Time: A horizontal subsurface flow
constructed wetland (HSSF CW) is designed to treat 1000 m³/day of
municipal wastewater. The design porosity of the media is 0.35, and the
target hydraulic retention time (HRT) is 5 days. Calculate the required
wetland volume and the approximate surface area if the average water
depth is 0.6 m.
Assume steady-state conditions and void velocity equals flow velocity
within the porous media.
2. Vegetation Selection Criteria: Discuss the critical physiological and
ecological traits that must be considered when selecting plant species
for a wetland intended to remove heavy metals and nutrient loads in a
temperate climate. How do these traits influence pollutant uptake and
system resilience under seasonal temperature fluctuations?
, 3. Media Types and Properties: Compare and contrast the use of sand,
gravel, and expanded shale as substrate media regarding permeability,
adsorption capacity, and longevity in constructed wetlands.
How would the choice of media impact hydraulic conductivity and
potential clogging risks over a 10-year operational period?
4. Hydraulic Retention Time Calculation: Explain how changes in influent
flow rates during wet and dry seasons influence the hydraulic retention
time of a vertical flow constructed wetland.
Given a fluctuating daily flow rate between 800 m³/day (dry season) and
1600 m³/day (wet season) and a constant wetland volume of 5000 m³,
calculate the HRT range and discuss implications for treatment
efficiency.
5. Climate Impacts on Performance: Evaluate how variations in
temperature, precipitation, and evaporation rates affect the biochemical
processes within constructed wetlands.
Specifically, analyze how colder winter temperatures in temperate
regions alter nitrogen removal efficiency through nitrification and
denitrification mechanisms.
6. Integrated Design Analysis: Given the following parameters, propose a
wetland design approach:
◦ High organic load wastewater with BOD₅ of 400 mg/L
◦ Available land area of 0.5 hectares
◦ Subtropical climate with frequent heavy rainfall
Justify your recommendations concerning flow type (surface vs.
subsurface), vegetation, media selection, and hydrologic controls to
optimize treatment and minimize short-circuiting.
7. Critical Problem Solving: A constructed wetland is experiencing reduced
flow rates and early clogging after 3 years of operation. Propose a
detailed investigative and remedial plan including potential design
modifications and operational strategies to restore system performance.
QUIZ SECTION 2: COMPLEX POLLUTANT REMOVAL
MECHANISMS
1. Nitrogen Cycling Dynamics: Explain the biochemical pathways involved
in nitrogen removal within constructed wetlands. How do spatial redox
gradients within vertical flow wetlands facilitate simultaneous
nitrification and denitrification?
Discuss the role of oxygen transfer, microbial consortia, and substrate
properties in optimizing these processes.
