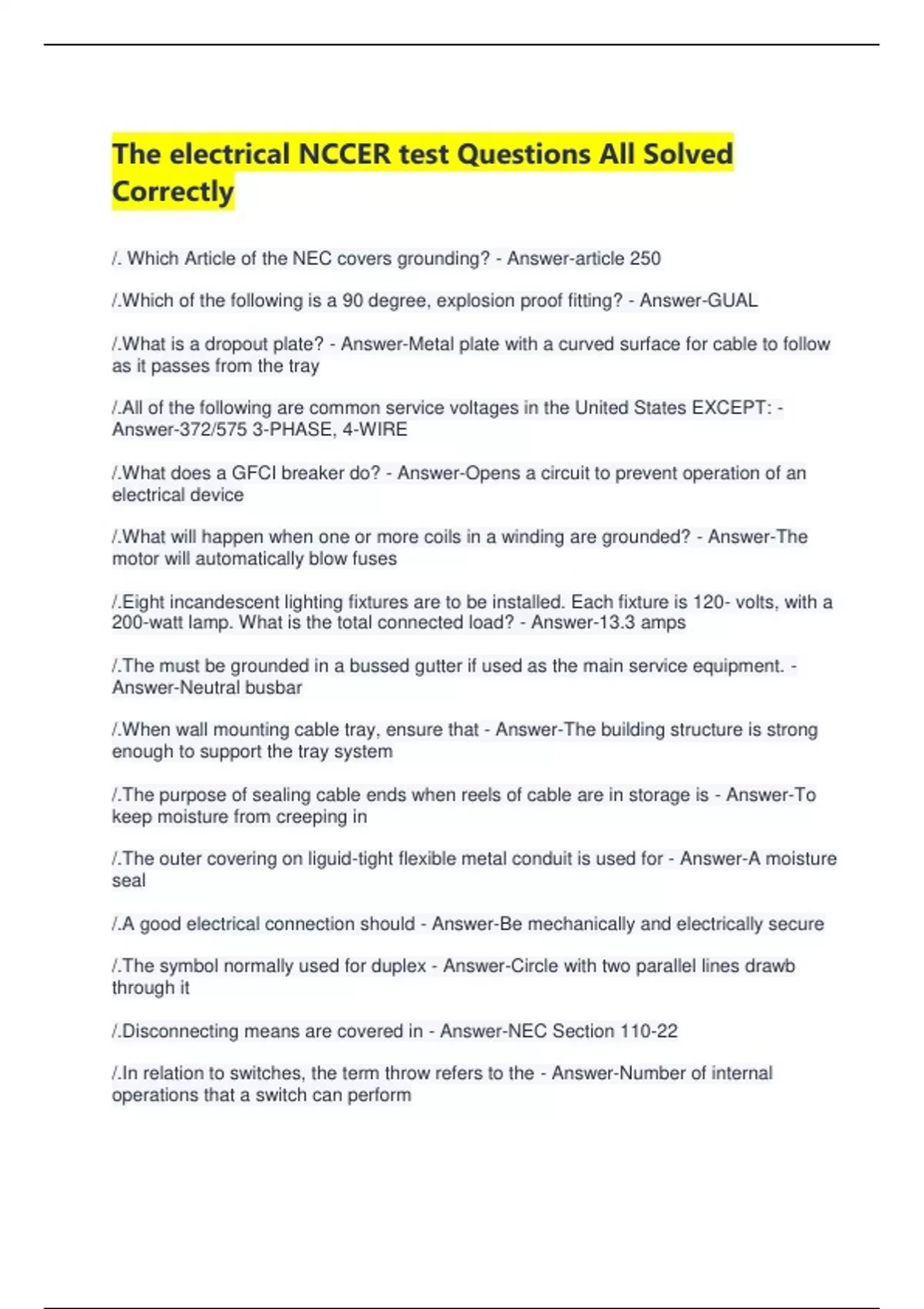

The electrical NCCER test Questions All Solved
Correctly
/. Which Article of the NEC covers grounding? - Answer-article 250
/.Which of the following is a 90 degree, explosion proof fitting? - Answer-GUAL
/.What is a dropout plate? - Answer-Metal plate with a curved surface for cable to follow
as it passes from the tray
/.All of the following are common service voltages in the United States EXCEPT: -
Answer-372/575 3-PHASE, 4-WIRE
/.What does a GFCI breaker do? - Answer-Opens a circuit to prevent operation of an
electrical device
/.What will happen when one or more coils in a winding are grounded? - Answer-The
motor will automatically blow fuses
/.Eight incandescent lighting fixtures are to be installed. Each fixture is 120- volts, with a
200-watt lamp. What is the total connected load? - Answer-13.3 amps
/.The must be grounded in a bussed gutter if used as the main service equipment. -
Answer-Neutral busbar
/.When wall mounting cable tray, ensure that - Answer-The building structure is strong
enough to support the tray system
/.The purpose of sealing cable ends when reels of cable are in storage is - Answer-To
keep moisture from creeping in
/.The outer covering on liguid-tight flexible metal conduit is used for - Answer-A moisture
seal
/.A good electrical connection should - Answer-Be mechanically and electrically secure
/.The symbol normally used for duplex - Answer-Circle with two parallel lines drawb
through it
/.Disconnecting means are covered in - Answer-NEC Section 110-22
/.In relation to switches, the term throw refers to the - Answer-Number of internal
operations that a switch can perform
,/.A 3-phase, 4-wire, 480v service requires ______ current transformer(s) - Answer-3
/.Services conductors and equipment are covered in - Answer-NEC Article 230
/.The NEC required that all receptacles installed on 25 amp and 20 amp branch circuits
be ______ receptacles - Answer-Grounding
/.A transformer with the primary of 400 turns and a secondary of 300 turns has a _____
- Answer-Step-down turns ratio of 4:3
/.The circular mil is based on the - Answer-Cross-sectional area of the wire
/.Of the termination classes listed below, ____ is the only one that provides a seal
against external elements. - Answer-Class 1
/.Unless otherwise noted. the calculations in AC circuits _____ values. - Answer-Rms
/.When the coil turns are increased the _____ - Answer-Induced voltage is increased
/.As the temperature surrounding a self-regulating heating cable rises, the ____ -
Answer-Resistance of the polymeric core increases
/.The motor type that has the highest starting torque is the ____ motor. - Answer-
Capacitor-start
/.For a given number of poles, the ____ determines the speed of an AC motor. -
Answer-Frequency
/.Both induction and synchronous motors operate on the principle of a rotating ____
field - Answer-Magnetic
/.A transformer has 200 turns in the primary, 150 turns in the secondary, and 120VAC
applied to the primary. The voltage across the secondary is: - Answer-90Volts
/.The output capacity of a motor is rated in - Answer-Horsepower
/.The synchronous speed at which a pole, 60 Hz induction motor operates is rpm. -
Answer-1,800
/.The sine of 0 degree is - Answer-0
/.Meters used in AC circuits indicate the - Answer-Effective
/.The component labeled 7 in figure 1 is a(n) - Answer-End seal
, /.In an AC circuit containing resistance only _____ will flow if the resistance is 10 ohms
and the voltage is 120V. - Answer-12A
/.The _____ rotor types are generally rugged. - Answer-Squirrel cage
/.Proofs tests are made at_ of the original factory voltage. - Answer-60%
/.Which type of heating cable cannot be cut and terminated in the field? - Answer-
Mineral insulated
/.The secondary of a CT under load should not be opened because of_. - Answer-
Induced high voltage
/.In a transformer ______ - Answer-Electromagnetic Induction Ocurs
/.When a ground rod is installed, the top of the rod must be positioned ______ grade. -
Answer-Flush with or below
/.When making offset bends, the two kicks must be made perfectly parallel or the
resulting offset will have a _____ - Answer-Crooked Bend
/.conduit that requires a 90 degree change in direction, except 42.All of the following
types of condulet may be used as a pulling point for _____ - Answer-C
/.To be effective, a grounding system must limit the voltage on the electrical system and
protect it from all of the following, except _____ - Answer-Undervoltage conditions
/.What is the MOST common service used in a temporary power panel? - Answer-
120/240 volt, 1-phase, 3-wire
/.What are the 2 MOST common types of overcurrent protective devices? - Answer-
Circuit breakers and fuses
/.What instrument is used to perform an insulation-resistance test on a 480- volt motor
winding? - Answer-Megohmmeter
/.Why is a seal installed in a run of conduit in a Class I location? - Answer-Prevent the
passage of explosive gases in the conduit
/.Which of the following is the correct formula for OHM's law? - Answer-I=E/R
/.Which of the following testing instruments operated on the current transformer
principle? - Answer-Clamp-on ammeter
