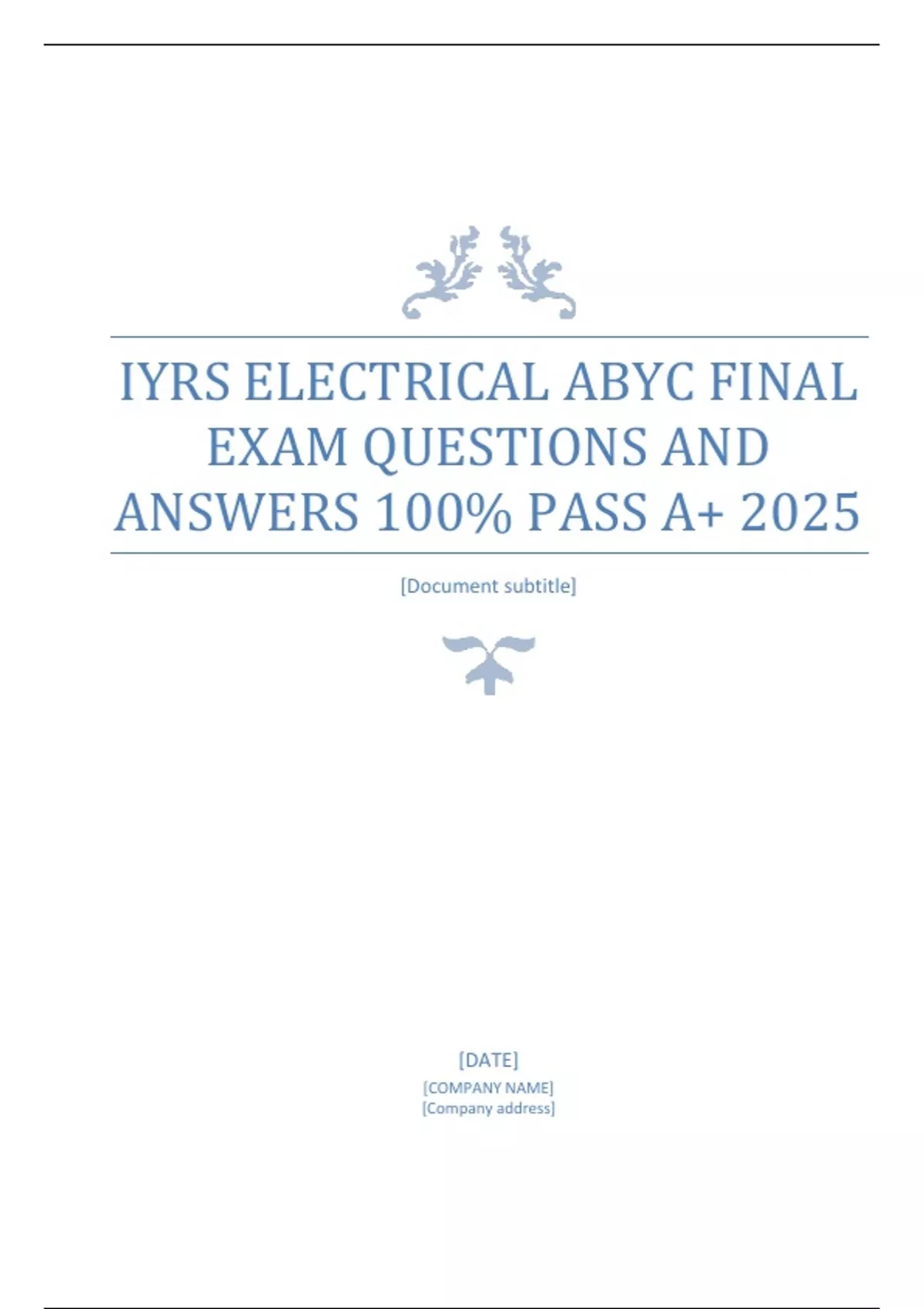

IYRS ELECTRICAL ABYC FINAL
EXAM QUESTIONS AND
ANSWERS 100% PASS A+ 2025
[Document subtitle]
[DATE]
[COMPANY NAME]
[Company address]
, The primary problem with using a series circuit to supply multiple loads is
that - ANSWER✔✔-voltage drop across each load will be excessive
the most common electrical circuit problem in marine applications is -
ANSWER✔✔-unwanted open
the primary by-product of excessive electrical resistance is - ANSWER✔✔-
heat
the tool of choice today for tracing shorted and open circuits is the: -
ANSWER✔✔-TDR
What material is recommended for clamping conductors over engines and
moving machinery according to the ABYC - ANSWER✔✔-Metal
according to ABYC acceptable minimum clearance for routing wire near a
dry exhaust section is - ANSWER✔✔-9 inches (225 mm)
The maximum number of terminals allowed to be attached to any one
terminal stud based on ABYC is - ANSWER✔✔-4
How much current should flow through the
