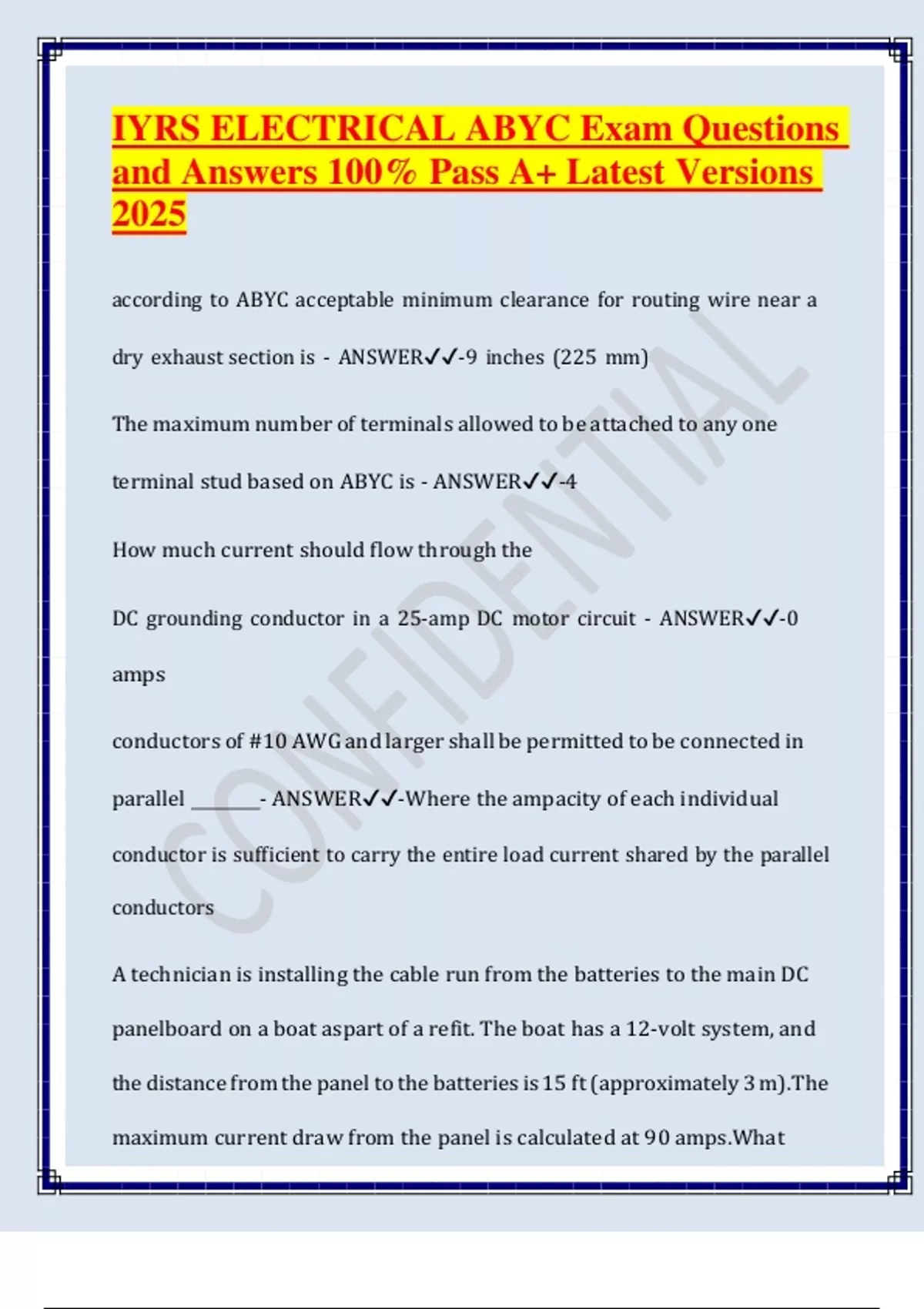

IYRS ELECTRICAL ABYC Exam Questions
and Answers 100% Pass A+ Latest Versions
2025
according to ABYC acceptable minimum clearance for routing wire near a
dry exhaust section is - ANSWER✔✔-9 inches (225 mm)
The maximum number of terminals allowed to be attached to any one
terminal stud based on ABYC is - ANSWER✔✔-4
How much current should flow through the
DC grounding conductor in a 25-amp DC motor circuit - ANSWER✔✔-0
amps
conductors of #10 AWG and larger shall be permitted to be connected in
parallel - ANSWER✔✔-Where the ampacity of each individual
conductor is sufficient to carry the entire load current shared by the parallel
conductors
A technician is installing the cable run from the batteries to the main DC
panelboard on a boat aspart of a refit. The boat has a 12-volt system, and
the distance from the panel to the batteries is 15 ft (approximately 3 m).The
maximum current draw from the panel is calculated at 90 amps.What
, Copyright ©EMILLYCHARLOTE 2025 ACADEMIC YEAR, ALL RIGHTS RESERVED. Page 2/12
and Answers 100% Pass A+ Latest Versions
2025
according to ABYC acceptable minimum clearance for routing wire near a
dry exhaust section is - ANSWER✔✔-9 inches (225 mm)
The maximum number of terminals allowed to be attached to any one
terminal stud based on ABYC is - ANSWER✔✔-4
How much current should flow through the
DC grounding conductor in a 25-amp DC motor circuit - ANSWER✔✔-0
amps
conductors of #10 AWG and larger shall be permitted to be connected in
parallel - ANSWER✔✔-Where the ampacity of each individual
conductor is sufficient to carry the entire load current shared by the parallel
conductors
A technician is installing the cable run from the batteries to the main DC
panelboard on a boat aspart of a refit. The boat has a 12-volt system, and
the distance from the panel to the batteries is 15 ft (approximately 3 m).The
maximum current draw from the panel is calculated at 90 amps.What
