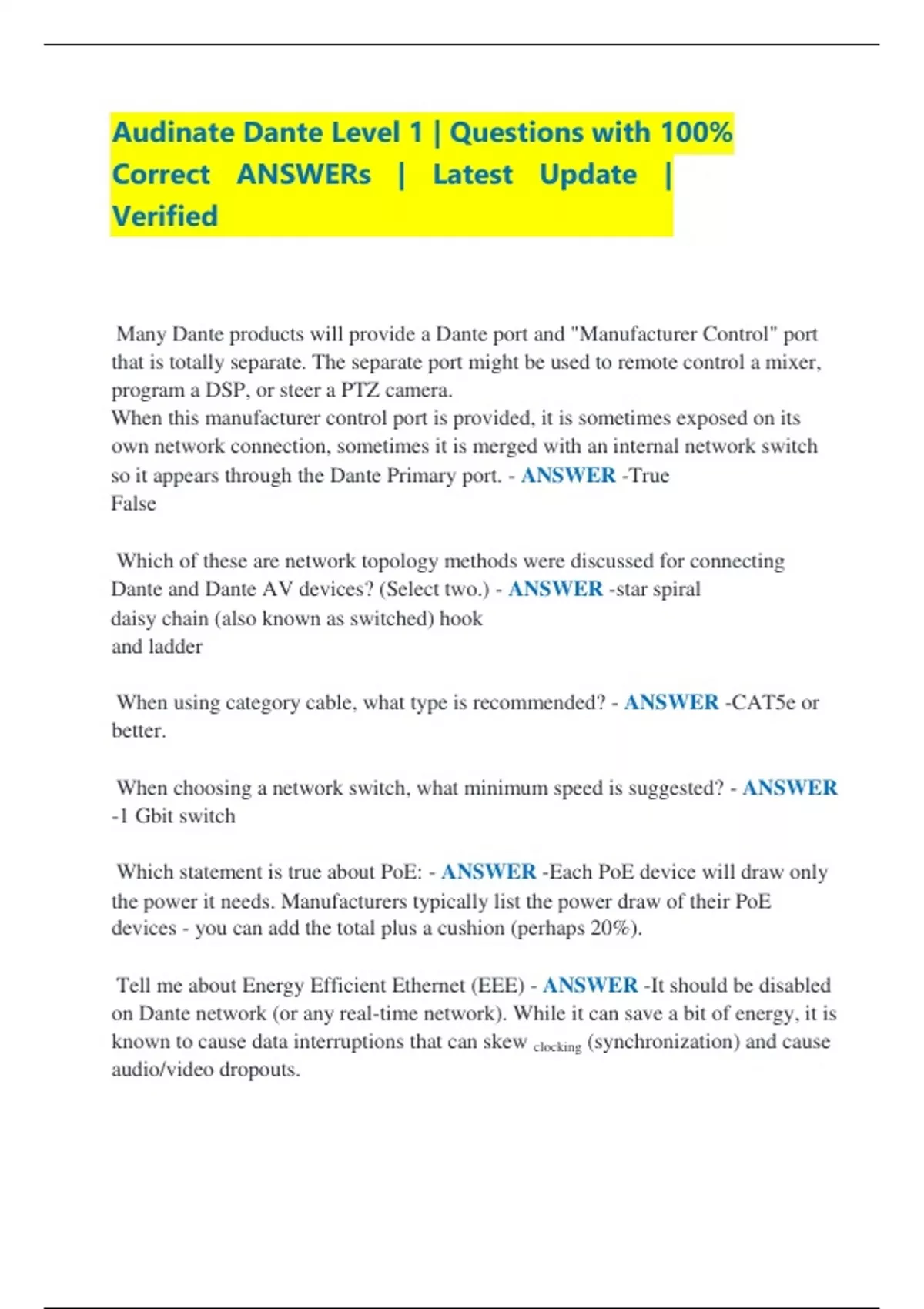

Audinate Dante Level 1 | Questions with 100%
Correct ANSWERs | Latest Update |
Verified
Many Dante products will provide a Dante port and "Manufacturer Control" port
that is totally separate. The separate port might be used to remote control a mixer,
program a DSP, or steer a PTZ camera.
When this manufacturer control port is provided, it is sometimes exposed on its
own network connection, sometimes it is merged with an internal network switch
so it appears through the Dante Primary port. - ANSWER -True
False
Which of these are network topology methods were discussed for connecting
Dante and Dante AV devices? (Select two.) - ANSWER -star spiral
daisy chain (also known as switched) hook
and ladder
When using category cable, what type is recommended? - ANSWER -CAT5e or
better.
When choosing a network switch, what minimum speed is suggested? - ANSWER
-1 Gbit switch
Which statement is true about PoE: - ANSWER -Each PoE device will draw only
the power it needs. Manufacturers typically list the power draw of their PoE
devices - you can add the total plus a cushion (perhaps 20%).
Tell me about Energy Efficient Ethernet (EEE) - ANSWER -It should be disabled
on Dante network (or any real-time network). While it can save a bit of energy, it is
known to cause data interruptions that can skew clocking (synchronization) and cause
audio/video dropouts.
, If a device has an IP address of 192.168.15.12 and a subnet mask of
255.255.255.0, which IP address would be within its subnet? - ANSWER -
192.168.15.101
What type of network connections should be used to transport Dante traffic?
(Select all that apply.) - ANSWER -Fiber optic connections - common for 1Gbit or
faster in link lengths of 300m-500m. These can go for kilometers.
CAT5e or better for 1Gbit links up to 100m in length.
WiFi can only be used for control data. No audio or video media will be
transported on WiFi.
A single computer can run Dante Virtual Soundcard and Dante Via at the same
time. - ANSWER -False
Dante devices remember their settings and automatically restore on power loss or
manual restart. Dante Controller does not need to be present on the network for this
to happen. - ANSWER -True
What features does Dante Via offer that are not found in Dante Virtual
Soundcard? (Select two.) - ANSWER -Routes programs to each other inside the
computer
Sample Rate Conversion
Dante transmitters are called "sources". Dante receivers are called: - ANSWER
destinations or sinks.
Which of the following are diagnostic features of Dante Controller? (Select three.)
- ANSWER -Negotiated Port Speed and Tx/Rx Bandwidth Used
Latency Monitoring
Clock monitoring
In Dante Controller, a green checkmark indicates: - ANSWER -Subscription is
successful.
