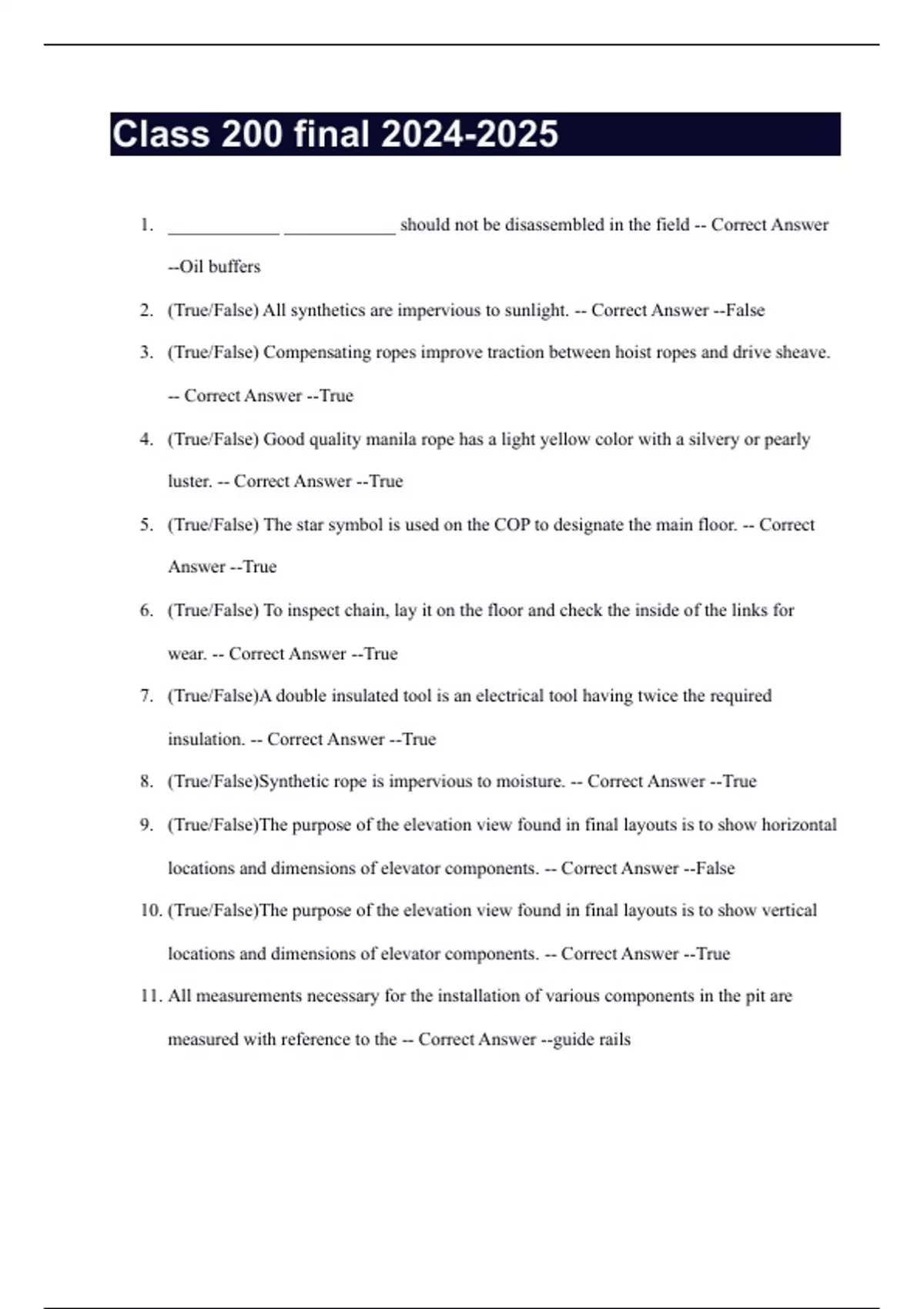

Class 200 final 2024-2025
1. ____________ ____________ should not be disassembled in the field -- Correct Answer
--Oil buffers
2. (True/False) All synthetics are impervious to sunlight. -- Correct Answer --False
3. (True/False) Compensating ropes improve traction between hoist ropes and drive sheave.
-- Correct Answer --True
4. (True/False) Good quality manila rope has a light yellow color with a silvery or pearly
luster. -- Correct Answer --True
5. (True/False) The star symbol is used on the COP to designate the main floor. -- Correct
Answer --True
6. (True/False) To inspect chain, lay it on the floor and check the inside of the links for
wear. -- Correct Answer --True
7. (True/False)A double insulated tool is an electrical tool having twice the required
insulation. -- Correct Answer --True
8. (True/False)Synthetic rope is impervious to moisture. -- Correct Answer --True
9. (True/False)The purpose of the elevation view found in final layouts is to show horizontal
locations and dimensions of elevator components. -- Correct Answer --False
10. (True/False)The purpose of the elevation view found in final layouts is to show vertical
locations and dimensions of elevator components. -- Correct Answer --True
11. All measurements necessary for the installation of various components in the pit are
measured with reference to the -- Correct Answer --guide rails
, 12. allows use of undersized buffers and slows car at terminal landing -- Correct Answer --
emergency terminal speed limiting device
13. As a minimum , the car governor must trip at ________% of contract speed. -- Correct
Answer --115
14. ASME Safety Code requires that a fully compressed oil buffer should return to its normal
position within _________ seconds after the elevator car or counterweight has been
removed. -- Correct Answer --90
15. At what elevator speed do you need oil buffers? -- Correct Answer -->200 FPM
16. bad manilla rope -- Correct Answer --dark color and musty smell
17. bank of elevators, which rails are set from the corridor line 1st? -- Correct Answer --outer
most main
18. Before pouring concrete hoistway walls do what to rail guide bracket inserts? -- Correct
Answer --stuff with paper or cover
19. brakes must stop what percent of capacity? -- Correct Answer --125%
20. chain fall internal gear type? -- Correct Answer --spur
21. comp rope/chains if elevator travel over ? feet -- Correct Answer --100feet or 400FPM
speed
22. Crosby spacing -- Correct Answer --6x diameter
23. dead end rope tail length past wedge socket? -- Correct Answer --6-9 inches
24. Generally, what type of rail guides are used on freight elevators? -- Correct Answer --
Solid guide shoes
25. Glass must be either ____________ or ____________ to hold the glass together if
broken. -- Correct Answer --Laminated, Bonded
