Overview of Key Medical Sciences and
Techniques
Bioinstrumentation
Bioinstrumentation stands at the intersection of engineering, biology, and medicine,
playing a pivotal role in modern healthcare by enabling the precise measurement,
analysis, and control of biologically derived signals and processes. This section
provides a thorough exploration into the principles and applications of
bioinstrumentation in medical diagnostics. It will delve into the various types of
instruments used, their functions, and the technological advancements that have
propelled the field into new frontiers. By understanding the fundamental principles
behind these devices and their practical applications in clinical settings, medical
professionals, researchers, and students can appreciate how these technological tools
contribute to improved diagnostic accuracy, therapeutic interventions, and overall
patient care.
Introduction to Bioinstrumentation
Bioinstrumentation involves the design, development, and application of engineering
instruments to measure and control biological systems. Often situated at the core of
medical diagnostics, these instruments are crucial in converting biological signals into
data that can be quantitatively analyzed by clinicians. The discipline draws on
knowledge from multiple fields including electrical, mechanical, and biomedical
engineering, as well as from the natural sciences.
In the context of medical diagnostics, bioinstrumentation encompasses devices ranging
from non-invasive imaging systems such as ultrasound machines and magnetic
resonance imaging (MRI) scanners to implantable devices and biosensors used for
continuous monitoring of biochemical markers. Advances in materials science,
microelectronics, and computer technology have continually expanded the capabilities
of these instruments, enabling more precise measurements and the ability to detect
subtle physiological changes that were once beyond reach.
The integration of bioinstrumentation into healthcare has not only enhanced diagnostic
accuracy but has also contributed to the personalization of medicine, where therapies
are more closely tailored to individual patient profiles. The further integration of digital
technologies and algorithm-driven analytics marks a significant evolution in how
bioinstrumentation is applied in medicine, leading ultimately to systems that are more
user-friendly, faster, and more reliable.
,Fundamental Principles of Bioinstrumentation
Signal Acquisition and Transduction
At the heart of bioinstrumentation lies the ability to acquire signals from biological
systems and convert them into a form that can be measured and interpreted. Biological
processes, whether electrical, chemical, or mechanical, produce signals that require
specific transduction mechanisms to be detected.
1. Electrochemical Transducers: Commonly used in biosensors, these devices
convert a chemical reaction into an electrical signal. For example, glucose
sensors in diabetic care rely on the reaction between glucose oxidase and
glucose to produce a measurable electrical change.
2. Optical Transducers: Instruments such as pulse oximeters use light absorption
principles to measure oxygen saturation levels in the blood. By measuring
changes in light intensity or wavelength after passing through tissue, these
devices can provide real-time data on patient oxygenation.
3. Mechanical Transducers: Pressure sensors and accelerometers serve to
convert mechanical movement or pressure into electrical signals. In cardiology,
for instance, sensors embedded in cardiac monitors detect changes in blood flow
and heart rate dynamics, allowing for timely interventions.
Transduction is critical because biological signals are often very weak and require
amplification and refinement before accurate measurements can be achieved. This
process involves a combination of circuitry, signal conditioning, and digital conversion,
thereby ensuring the signal is strong enough to be processed by diagnostic algorithms.
Amplification and Signal Conditioning
Once a biological signal is acquired and transduced into an electrical form, amplification
and signal conditioning systems become essential. Amplification boosts the amplitude
of weak signals without compromising the integrity of the original information, while
conditioning involves filtering out noise and unwanted frequencies.
• Amplifiers: Differential amplifiers and instrumentation amplifiers are employed to
maximize the useful signal without amplifying interference or noise.
• Filters: Low-pass, high-pass, and band-pass filters remove frequency
components that are not relevant or detrimental to the diagnostic interpretation.
• Analog-to-Digital Converters (ADCs): The final step in signal processing
typically involves converting the analog signal into digital data, which can be
further analyzed by computers or microprocessors.
These techniques ensure that diagnostic data is both reliable and accurate, supporting
the ultimate goal of precise, reproducible diagnostics in clinical applications.
,Calibration and Standardization
In medical diagnostics, ensuring that bioinstrumentation provides accurate and
consistent results over time is paramount. Calibration involves setting specific reference
points so that measurements match known standards. This process is critical because
biological processes—and the instruments used to measure them—can be influenced
by environmental factors such as temperature, humidity, and electromagnetic
interference.
• Internal Standards: Instruments are often equipped with internal calibration
routines that periodically check and adjust measurement parameters.
• External Calibration: Regular calibration with external standards or reference
materials helps to maintain consistency, especially in instruments that are used
over long periods in different settings, such as in various clinical labs.
Standardization across instruments is essential in medical diagnostics. Without
appropriate calibration and quality assurance protocols, measurements could deviate
over time, potentially leading to misdiagnosis or suboptimal treatment decisions.
Types of Instruments in Medical Diagnostics
Bioinstrumentation covers a broad spectrum of devices, each designed to capture
specific biological signals and deliver actionable clinical data. Below, we describe some
of the key types of instruments that have significantly impacted modern diagnostics.
Medical Imaging Systems
Medical imaging systems have undergone significant technological advancements,
evolving into indispensable diagnostic tools that allow clinicians to see inside the human
body with unparalleled clarity. These systems include:
1. X-ray Systems: One of the most established imaging modalities, X-ray systems
use ionizing radiation to produce images of internal structures. Digital
radiography has largely replaced traditional film-based methods, offering
enhanced image quality, lower radiation doses, and faster processing times.
2. Computed Tomography (CT) Scanners: CT scanners integrate X-ray
measurements taken from multiple angles to construct cross-sectional images.
Sophisticated algorithms then reassemble these images into three-dimensional
reconstructions that are critical for diagnosing complex conditions such as
cancer, traumatic injuries, and vascular diseases.
3. Magnetic Resonance Imaging (MRI): MRI harnesses strong magnetic fields
and radio waves to create images, particularly effective for soft tissue contrast.
The non-ionizing nature of MRI makes it preferred in many cases, especially for
neurological and musculoskeletal evaluations.
4. Ultrasound Imaging: Using high-frequency sound waves, ultrasound systems
generate real-time images of internal organs, blood flow, and fetal development.
, Portable ultrasound devices have become increasingly common in point-of-care
settings, greatly enhancing diagnostic flexibility.
5. Positron Emission Tomography (PET): PET imaging, often combined with CT
or MRI, employs radioactive tracers to visualize physiological functions. It is
particularly useful in oncology, enabling clinicians to detect metabolic changes
associated with tumors before structural alterations become evident.
Each of these systems incorporates sophisticated detectors, image processing
software, and computational analytics to improve the resolution, contrast, and
diagnostic value of the images produced.
Biosensors and Point-of-Care Devices
Biosensors are one of the most exciting developments in bioinstrumentation. These
devices translate biochemical interactions into measurable signals, enabling rapid
diagnostics at the point-of-care (POC). Their applications include:
• Glucose Monitoring: Widely used in diabetes management, wearable
glucometers continuously or intermittently measure blood sugar levels. By
employing enzymatic reactions and potentiometric readings, these devices
provide real-time feedback that helps manage insulin dosing and dietary
adjustments.
• Infectious Disease Detection: Biosensors for pathogens, including bacteria and
viruses, often rely on antigen-antibody interactions or nucleic acid detection.
Rapid diagnostic tests (RDTs) that utilize lateral flow assays, for example, have
become invaluable in screening for conditions such as HIV, influenza, and
COVID-19.
• Cardiac Biomarkers: Biosensors are also instrumental in detecting cardiac
enzymes and proteins that surge during heart attacks. Early identification of
elevated troponin levels, for instance, can accelerate therapeutic interventions
and reduce the risk of significant cardiac damage.
• Wearable Technology: Advances in microfabrication have enabled the
development of wearable biosensors capable of monitoring vital signs, such as
heart rate, blood pressure, and even biochemical markers in sweat or interstitial
fluids. These devices are increasingly integrated into consumer health products,
bridging the gap between clinical diagnostics and personalized health monitoring.
Biosensor technology not only supports rapid decision-making in emergency settings
but also enhances long-term disease management by facilitating continuous monitoring
and data collection in everyday environments.
Laboratory-Based Instrumentation
Laboratory instrumentation in bioinstrumentation includes an array of devices
fundamental for in vitro diagnostics (IVD). These instruments are designed to perform
precise, high-throughput analyses of biological samples, thus supporting a wide range
of medical and research applications.
Techniques
Bioinstrumentation
Bioinstrumentation stands at the intersection of engineering, biology, and medicine,
playing a pivotal role in modern healthcare by enabling the precise measurement,
analysis, and control of biologically derived signals and processes. This section
provides a thorough exploration into the principles and applications of
bioinstrumentation in medical diagnostics. It will delve into the various types of
instruments used, their functions, and the technological advancements that have
propelled the field into new frontiers. By understanding the fundamental principles
behind these devices and their practical applications in clinical settings, medical
professionals, researchers, and students can appreciate how these technological tools
contribute to improved diagnostic accuracy, therapeutic interventions, and overall
patient care.
Introduction to Bioinstrumentation
Bioinstrumentation involves the design, development, and application of engineering
instruments to measure and control biological systems. Often situated at the core of
medical diagnostics, these instruments are crucial in converting biological signals into
data that can be quantitatively analyzed by clinicians. The discipline draws on
knowledge from multiple fields including electrical, mechanical, and biomedical
engineering, as well as from the natural sciences.
In the context of medical diagnostics, bioinstrumentation encompasses devices ranging
from non-invasive imaging systems such as ultrasound machines and magnetic
resonance imaging (MRI) scanners to implantable devices and biosensors used for
continuous monitoring of biochemical markers. Advances in materials science,
microelectronics, and computer technology have continually expanded the capabilities
of these instruments, enabling more precise measurements and the ability to detect
subtle physiological changes that were once beyond reach.
The integration of bioinstrumentation into healthcare has not only enhanced diagnostic
accuracy but has also contributed to the personalization of medicine, where therapies
are more closely tailored to individual patient profiles. The further integration of digital
technologies and algorithm-driven analytics marks a significant evolution in how

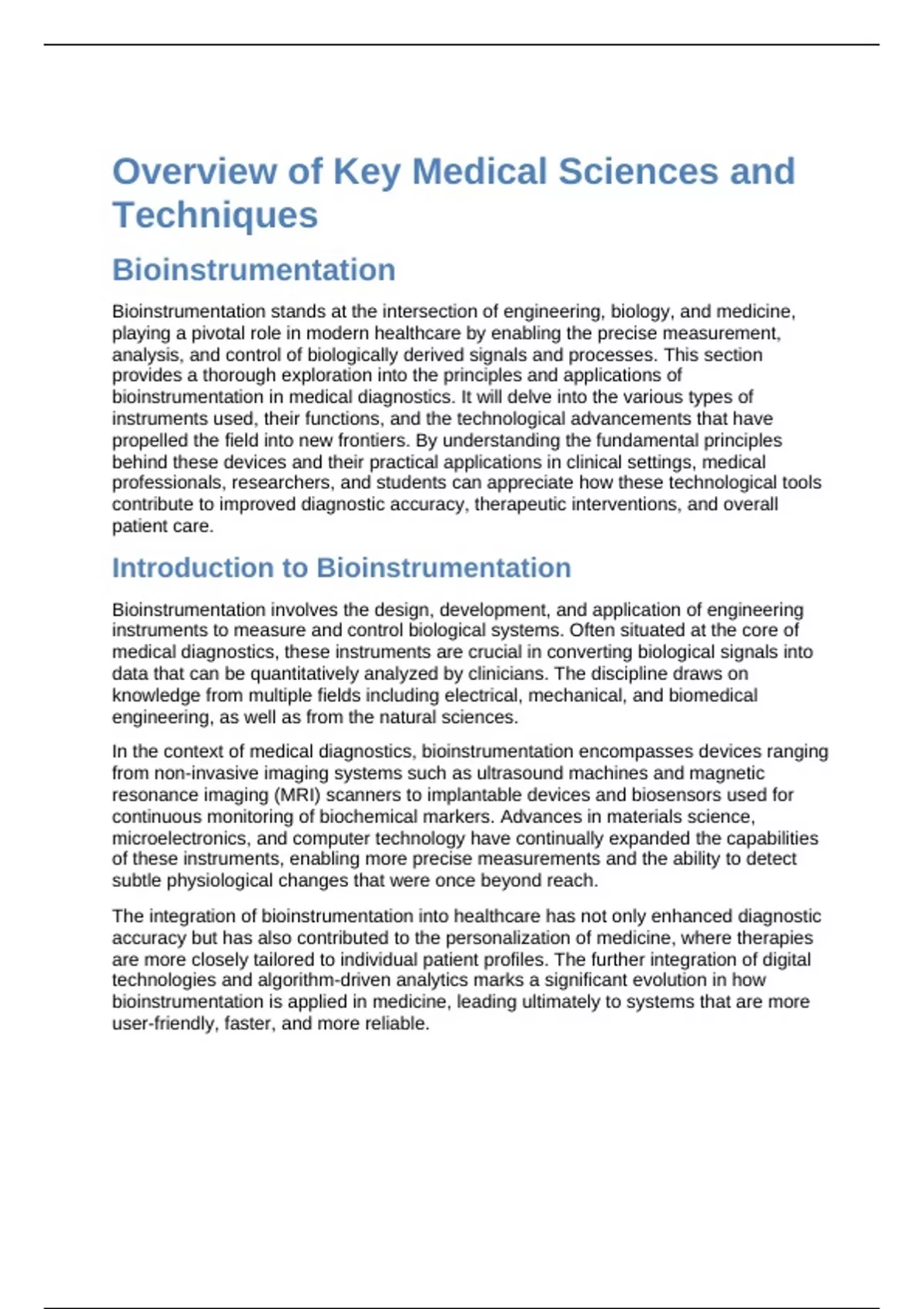

bioinstrumentation is applied in medicine, leading ultimately to systems that are more
user-friendly, faster, and more reliable.
,Fundamental Principles of Bioinstrumentation
Signal Acquisition and Transduction
At the heart of bioinstrumentation lies the ability to acquire signals from biological
systems and convert them into a form that can be measured and interpreted. Biological
processes, whether electrical, chemical, or mechanical, produce signals that require
specific transduction mechanisms to be detected.
1. Electrochemical Transducers: Commonly used in biosensors, these devices
convert a chemical reaction into an electrical signal. For example, glucose
sensors in diabetic care rely on the reaction between glucose oxidase and
glucose to produce a measurable electrical change.
2. Optical Transducers: Instruments such as pulse oximeters use light absorption
principles to measure oxygen saturation levels in the blood. By measuring
changes in light intensity or wavelength after passing through tissue, these
devices can provide real-time data on patient oxygenation.
3. Mechanical Transducers: Pressure sensors and accelerometers serve to
convert mechanical movement or pressure into electrical signals. In cardiology,
for instance, sensors embedded in cardiac monitors detect changes in blood flow
and heart rate dynamics, allowing for timely interventions.
Transduction is critical because biological signals are often very weak and require
amplification and refinement before accurate measurements can be achieved. This
process involves a combination of circuitry, signal conditioning, and digital conversion,
thereby ensuring the signal is strong enough to be processed by diagnostic algorithms.
Amplification and Signal Conditioning
Once a biological signal is acquired and transduced into an electrical form, amplification
and signal conditioning systems become essential. Amplification boosts the amplitude
of weak signals without compromising the integrity of the original information, while
conditioning involves filtering out noise and unwanted frequencies.
• Amplifiers: Differential amplifiers and instrumentation amplifiers are employed to
maximize the useful signal without amplifying interference or noise.
• Filters: Low-pass, high-pass, and band-pass filters remove frequency
components that are not relevant or detrimental to the diagnostic interpretation.
• Analog-to-Digital Converters (ADCs): The final step in signal processing
typically involves converting the analog signal into digital data, which can be
further analyzed by computers or microprocessors.
These techniques ensure that diagnostic data is both reliable and accurate, supporting
the ultimate goal of precise, reproducible diagnostics in clinical applications.
,Calibration and Standardization
In medical diagnostics, ensuring that bioinstrumentation provides accurate and
consistent results over time is paramount. Calibration involves setting specific reference
points so that measurements match known standards. This process is critical because
biological processes—and the instruments used to measure them—can be influenced
by environmental factors such as temperature, humidity, and electromagnetic
interference.
• Internal Standards: Instruments are often equipped with internal calibration
routines that periodically check and adjust measurement parameters.
• External Calibration: Regular calibration with external standards or reference
materials helps to maintain consistency, especially in instruments that are used
over long periods in different settings, such as in various clinical labs.
Standardization across instruments is essential in medical diagnostics. Without
appropriate calibration and quality assurance protocols, measurements could deviate
over time, potentially leading to misdiagnosis or suboptimal treatment decisions.
Types of Instruments in Medical Diagnostics
Bioinstrumentation covers a broad spectrum of devices, each designed to capture
specific biological signals and deliver actionable clinical data. Below, we describe some
of the key types of instruments that have significantly impacted modern diagnostics.
Medical Imaging Systems
Medical imaging systems have undergone significant technological advancements,
evolving into indispensable diagnostic tools that allow clinicians to see inside the human
body with unparalleled clarity. These systems include:
1. X-ray Systems: One of the most established imaging modalities, X-ray systems
use ionizing radiation to produce images of internal structures. Digital
radiography has largely replaced traditional film-based methods, offering
enhanced image quality, lower radiation doses, and faster processing times.
2. Computed Tomography (CT) Scanners: CT scanners integrate X-ray
measurements taken from multiple angles to construct cross-sectional images.
Sophisticated algorithms then reassemble these images into three-dimensional
reconstructions that are critical for diagnosing complex conditions such as
cancer, traumatic injuries, and vascular diseases.
3. Magnetic Resonance Imaging (MRI): MRI harnesses strong magnetic fields
and radio waves to create images, particularly effective for soft tissue contrast.
The non-ionizing nature of MRI makes it preferred in many cases, especially for
neurological and musculoskeletal evaluations.
4. Ultrasound Imaging: Using high-frequency sound waves, ultrasound systems
generate real-time images of internal organs, blood flow, and fetal development.
, Portable ultrasound devices have become increasingly common in point-of-care
settings, greatly enhancing diagnostic flexibility.
5. Positron Emission Tomography (PET): PET imaging, often combined with CT
or MRI, employs radioactive tracers to visualize physiological functions. It is
particularly useful in oncology, enabling clinicians to detect metabolic changes
associated with tumors before structural alterations become evident.
Each of these systems incorporates sophisticated detectors, image processing
software, and computational analytics to improve the resolution, contrast, and
diagnostic value of the images produced.
Biosensors and Point-of-Care Devices
Biosensors are one of the most exciting developments in bioinstrumentation. These
devices translate biochemical interactions into measurable signals, enabling rapid
diagnostics at the point-of-care (POC). Their applications include:
• Glucose Monitoring: Widely used in diabetes management, wearable
glucometers continuously or intermittently measure blood sugar levels. By
employing enzymatic reactions and potentiometric readings, these devices
provide real-time feedback that helps manage insulin dosing and dietary
adjustments.
• Infectious Disease Detection: Biosensors for pathogens, including bacteria and
viruses, often rely on antigen-antibody interactions or nucleic acid detection.
Rapid diagnostic tests (RDTs) that utilize lateral flow assays, for example, have
become invaluable in screening for conditions such as HIV, influenza, and
COVID-19.
• Cardiac Biomarkers: Biosensors are also instrumental in detecting cardiac
enzymes and proteins that surge during heart attacks. Early identification of
elevated troponin levels, for instance, can accelerate therapeutic interventions
and reduce the risk of significant cardiac damage.
• Wearable Technology: Advances in microfabrication have enabled the
development of wearable biosensors capable of monitoring vital signs, such as
heart rate, blood pressure, and even biochemical markers in sweat or interstitial
fluids. These devices are increasingly integrated into consumer health products,
bridging the gap between clinical diagnostics and personalized health monitoring.
Biosensor technology not only supports rapid decision-making in emergency settings
but also enhances long-term disease management by facilitating continuous monitoring
and data collection in everyday environments.
Laboratory-Based Instrumentation
Laboratory instrumentation in bioinstrumentation includes an array of devices
fundamental for in vitro diagnostics (IVD). These instruments are designed to perform
precise, high-throughput analyses of biological samples, thus supporting a wide range
of medical and research applications.
