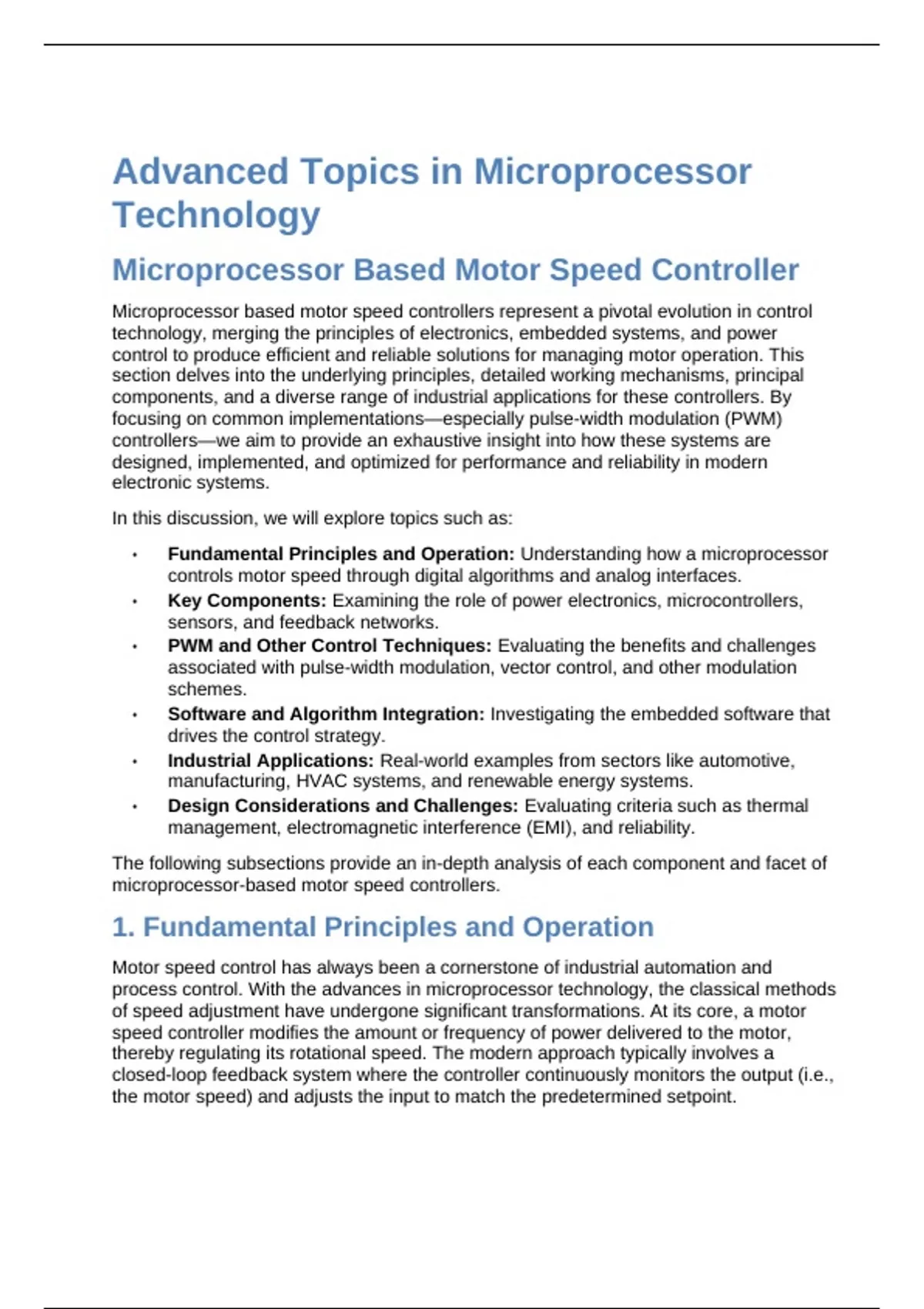

Advanced Topics in Microprocessor
Technology
Microprocessor Based Motor Speed Controller
Microprocessor based motor speed controllers represent a pivotal evolution in control
technology, merging the principles of electronics, embedded systems, and power
control to produce efficient and reliable solutions for managing motor operation. This
section delves into the underlying principles, detailed working mechanisms, principal
components, and a diverse range of industrial applications for these controllers. By
focusing on common implementations—especially pulse-width modulation (PWM)
controllers—we aim to provide an exhaustive insight into how these systems are
designed, implemented, and optimized for performance and reliability in modern
electronic systems.
In this discussion, we will explore topics such as:
• Fundamental Principles and Operation: Understanding how a microprocessor
controls motor speed through digital algorithms and analog interfaces.
• Key Components: Examining the role of power electronics, microcontrollers,
sensors, and feedback networks.
• PWM and Other Control Techniques: Evaluating the benefits and challenges
associated with pulse-width modulation, vector control, and other modulation
schemes.
• Software and Algorithm Integration: Investigating the embedded software that
drives the control strategy.
• Industrial Applications: Real-world examples from sectors like automotive,
manufacturing, HVAC systems, and renewable energy systems.
• Design Considerations and Challenges: Evaluating criteria such as thermal
management, electromagnetic interference (EMI), and reliability.
The following subsections provide an in-depth analysis of each component and facet of
microprocessor-based motor speed controllers.
1. Fundamental Principles and Operation
Motor speed control has always been a cornerstone of industrial automation and
process control. With the advances in microprocessor technology, the classical methods
of speed adjustment have undergone significant transformations. At its core, a motor
speed controller modifies the amount or frequency of power delivered to the motor,
thereby regulating its rotational speed. The modern approach typically involves a
closed-loop feedback system where the controller continuously monitors the output (i.e.,
the motor speed) and adjusts the input to match the predetermined setpoint.
,1.1 Closed-Loop Control
A critical element of modern speed controllers is their reliance on closed-loop control
systems. In these systems, the speed of the motor is sensed using various techniques,
such as magnetic encoders, Hall-effect sensors, or optical sensors. The measured
speed is then compared against a reference or desired speed in order to produce an
error signal. This error signal is processed by the microprocessor, often through digital
signal processing (DSP) algorithms, to generate a corrective action. This action is then
translated into electrical signals that modify the switching patterns of the power
transistor networks driving the motor.
The feedback loop ensures that transient conditions such as load variation, supply
voltage fluctuations, and thermal drift are compensated for in real time, thereby
guaranteeing smooth operation, accuracy, and efficiency. Controllers designed with
these principles can adapt to various motor types, ranging from induction motors to
brushless DC motors, which have different dynamic responses and require specific
modulation techniques.
1.2 Open-Loop Versus Closed-Loop Systems
While closed-loop systems provide a high level of accuracy and reliability, some
applications may benefit from simpler open-loop control systems. In an open-loop
system, speed control is achieved without continuous sensor feedback and adjustment.
The command signals are generated directly based on a predefined algorithm, and
while this approach reduces complexity, it may not adequately respond to variations
induced by load changes. The choice between closed-loop and open-loop systems
depends on factors such as application sensitivity, cost constraints, and performance
requirements.
2. Key Components of Microprocessor Based Motor
Speed Controllers
The integration of multiple hardware and software components creates a cohesive
system capable of controlling motor speed with high precision. Understanding each
component's role is essential when considering design strategies and troubleshooting.
2.1 Microcontroller Unit (MCU)
At the heart of these controllers lies the microcontroller; a compact, integrated circuit
responsible for processing input from sensors, executing control algorithms, and
producing output signals that drive power devices. Modern MCUs are equipped with
advanced features such as high-speed data conversion (ADC/DAC), multiple timers,
and communication interfaces (like SPI, I²C, and CAN bus), which are crucial for real-
time performance and integration with larger systems.
, • Instruction Set and Computational Power: Advanced microcontrollers may
support floating-point operations, which enhance the accuracy of speed control
algorithms.
• Memory Resources: Sufficient SRAM and flash memory allow for the integration
of complex algorithms and adaptive control strategies.
• Peripheral Integration: Integrated peripherals, such as PWM modules and
motor control-specific features, streamline the implementation of speed control.
2.2 Power Electronics and Solid-State Switching Devices
The ability to rapidly and efficiently switch electrical loads is central to motor speed
control. Transistors, including MOSFETs (Metal-Oxide-Semiconductor Field-Effect
Transistors) and IGBTs (Insulated Gate Bipolar Transistors), serve as the
semiconductor switches in many controllers. The speed and efficiency of these devices
determine how finely the controller can regulate the power supplied to the motor.
• Gate Drivers and Isolation: Efficient gate drivers ensure rapid transistor
switching, while safety isolation components protect the low-voltage
microprocessor circuitry from high-power switching events.
• Heat Dissipation: Thermal management strategies, including heatsinks and
cooling mechanisms, are critical since switching devices generate heat during
operation and require effective dissipation solutions.
2.3 Sensor Feedback Mechanisms
Sensors facilitate closed-loop control by providing real-time data on motor speed,
temperature, and other parameters. The following types of sensors are common in
motor speed controllers:
• Encoders: Provide precise shaft position and speed information.
• Hall-Effect Sensors: Detect magnetic fields corresponding to motor rotation,
frequently used in brushless DC motor control.
• Current Sensors: Offer a measure of the current flow, aiding in load estimation
and protection.
Each sensor type brings unique benefits regarding resolution, response time, and
integration ease, contributing to the overall dynamic performance of the controller.
2.4 Power Supply and Voltage Regulation
Stable power supply and proper voltage regulation are paramount for both the
microprocessor and the power switching components. Voltage regulators and DC-DC
converters ensure that the microprocessor and sensors receive a stable voltage supply
irrespective of fluctuations in the input power source. Designers often integrate
protective elements such as surge protectors and anti-transient circuits to safeguard the
system.
, 2.5 Communication Interfaces
In modern industrial environments, the ability to interface with external systems is
essential for both monitoring and diagnostics. Many controllers integrate communication
protocols to allow remote monitoring, firmware updates, and networked control systems.
Some common interfaces include:
• CAN Bus: Widely used in automotive and industrial automation for robust, real-
time communication.
• Ethernet/IP: Facilitates integration with modern industrial networks and IoT
systems.
• Serial Communication: Simpler forms of communication that provide debugging
and control functions during development.
3. Pulse-Width Modulation (PWM) Control Techniques
Pulse-width modulation (PWM) is perhaps the most ubiquitously implemented technique
within microprocessor-based motor speed controllers. PWM involves modulating the
width of pulses applied to the power transistor network, effectively varying the average
voltage seen by the motor. This section examines the principles behind PWM, its
advantages, and variations in implementation.
3.1 Principles of PWM
PWM operates on the concept of switching a fixed voltage source on and off at a rapid
pace. The key parameter in PWM is the duty cycle, which defines the ratio of the “on”
time to the total period of the cycle. By adjusting the duty cycle, the microprocessor
alters the average voltage delivered to the motor:
• Low Duty Cycle: The switched signal remains off for most of the period,
resulting in a lower average voltage and slower motor speed.
• High Duty Cycle: Conversely, when the duty cycle increases, the average
voltage rises, leading to faster motor operation.
This method is highly efficient because the power devices (transistors) operate in either
a fully on or a fully off state, minimizing heat dissipation due to reduced conduction
losses.
3.2 Advantages of PWM Over Other Techniques
The adoption of PWM in motor speed control has multiple advantages:
• Energy Efficiency: Since the power devices handle high voltages in a binary
fashion, energy losses are minimized.
• Precision: PWM enables fine control over the motor speed even under rapidly
changing load conditions.
