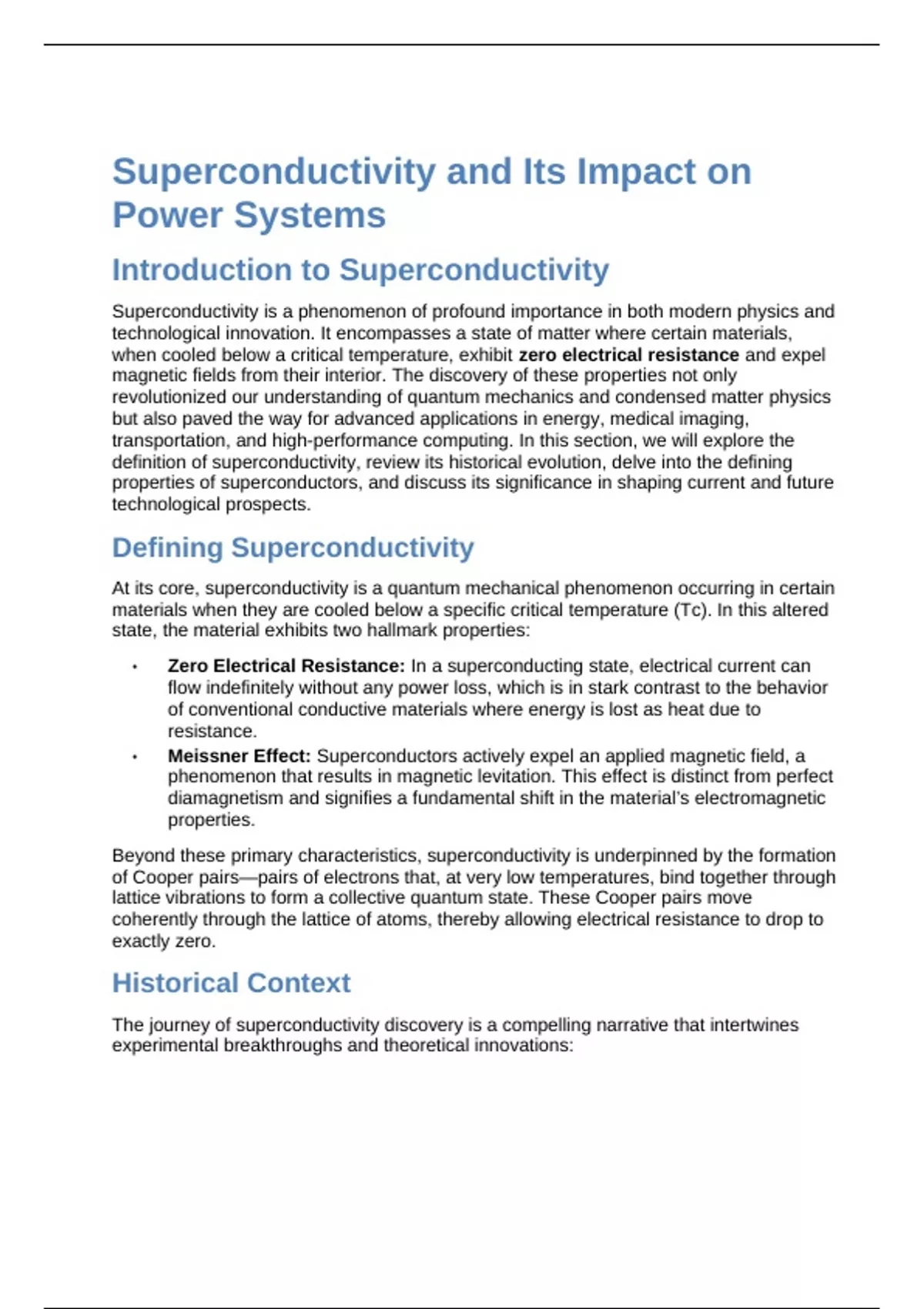

Superconductivity and Its Impact on
Power Systems
Introduction to Superconductivity
Superconductivity is a phenomenon of profound importance in both modern physics and
technological innovation. It encompasses a state of matter where certain materials,
when cooled below a critical temperature, exhibit zero electrical resistance and expel
magnetic fields from their interior. The discovery of these properties not only
revolutionized our understanding of quantum mechanics and condensed matter physics
but also paved the way for advanced applications in energy, medical imaging,
transportation, and high-performance computing. In this section, we will explore the
definition of superconductivity, review its historical evolution, delve into the defining
properties of superconductors, and discuss its significance in shaping current and future
technological prospects.
Defining Superconductivity
At its core, superconductivity is a quantum mechanical phenomenon occurring in certain
materials when they are cooled below a specific critical temperature (Tc). In this altered
state, the material exhibits two hallmark properties:
• Zero Electrical Resistance: In a superconducting state, electrical current can
flow indefinitely without any power loss, which is in stark contrast to the behavior
of conventional conductive materials where energy is lost as heat due to
resistance.
• Meissner Effect: Superconductors actively expel an applied magnetic field, a
phenomenon that results in magnetic levitation. This effect is distinct from perfect
diamagnetism and signifies a fundamental shift in the material’s electromagnetic
properties.
Beyond these primary characteristics, superconductivity is underpinned by the formation
of Cooper pairs—pairs of electrons that, at very low temperatures, bind together through
lattice vibrations to form a collective quantum state. These Cooper pairs move
coherently through the lattice of atoms, thereby allowing electrical resistance to drop to
exactly zero.
Historical Context
The journey of superconductivity discovery is a compelling narrative that intertwines
experimental breakthroughs and theoretical innovations:
,Early Discoveries
The phenomenon was first observed in 1911 by Dutch physicist Heike Kamerlingh
Onnes. While investigating the electrical properties of metals at cryogenic temperatures,
Onnes discovered that mercury’s resistance suddenly vanished when cooled below
approximately 4.2 Kelvin. This groundbreaking experiment proved that certain materials
could conduct electricity without loss, initiating a century-long quest to understand and
harness this remarkable behavior.
Theoretical Foundations
Even though Onnes’ discovery opened the door to new physics, the theoretical
understanding of superconductivity significantly lagged behind experimental evidence. It
wasn’t until the mid-20th century that significant progress was made. Italian physicists
John Bardeen, Leon Cooper, and Robert Schrieffer developed what is now known as
the BCS theory in 1957. This theory provided a microscopic explanation of
superconductivity by describing it in terms of electron pairing mediated by phonons
(quanta of lattice vibrations). The elegance and predictive power of the BCS theory not
only garnered a Nobel Prize in Physics but also laid the foundation for the subsequent
developments in superconducting research.
Advances and High-Temperature Superconductors
For many years, superconductivity was observed only at extremely low temperatures,
which restricted its practical applications due to the high cost and complexity of cooling
systems. The breakthrough came in the late 1980s with the discovery of high-
temperature superconductors—materials capable of exhibiting superconductivity at
temperatures exceeding the boiling point of liquid nitrogen (77 K). This discovery
dramatically expanded the feasibility of superconducting applications, spurring vast
research into cuprate superconductors and other novel materials.
Fundamental Properties and Mechanisms
Understanding superconductivity demands a thorough grasp of its fundamental
properties. These properties are not isolated phenomena; rather, they interconnect and
underlie many of the technological advantages provided by superconductors.
Zero Electrical Resistance
One of the most striking features of superconductors is their ability to conduct electrical
current without resistance. In typical conductive materials such as copper and
aluminum, electrons scatter off impurities and lattice vibrations (phonons), dissipating
energy as heat. In contrast, when a material becomes superconducting, it undergoes a
dramatic transformation in its electronic structure. The electron pairs (Cooper pairs) that
form are not subject to the same scattering mechanisms because:
• They exist in a phase-coherent quantum state that spans the entire
superconductor.
, • They are separated by an energy gap from the normal state, preventing
scattering by low-energy excitations.
This barrier against scattering ensures that once a current is established in a
superconductor, it can persist indefinitely without additional energy input. This
phenomenon has profound implications for energy transmission, magnetic field
generation, and the creation of highly efficient electrical circuits.
The Meissner Effect
The Meissner effect is another cornerstone of superconductivity. Discovered shortly
after the initial observation of zero resistance, the Meissner effect describes the
expulsion of magnetic fields from the interior of a superconducting material. This
behavior can be observed through various experiments, such as magnetic levitation
demonstrations:
• Magnetic Levitation: When a small magnet is placed above a superconducting
material cooled below its critical temperature, the magnet appears to float. This
levitation effect arises because the superconducting material creates surface
currents that generate magnetic fields opposing those of the magnet, thereby
repelling it.
• Flux Pinning: In real superconductors, imperfections in the material (defects or
impurities) can trap magnetic flux lines. This phenomenon, known as flux pinning,
enables the superconductor to maintain its levitated state even when the magnet
is displaced, providing a stable platform for applications such as magnetic
bearings and frictionless transport systems.
The Meissner effect is not merely a laboratory curiosity; it is indispensable for
applications that require magnetic shielding and stability under varying external
magnetic influences.
Energy Gap and Cooper Pairs
The energy gap is a critical concept in the BCS theory of superconductivity. It refers to
the energy difference between the ground state (occupied by Cooper pairs) and the
excited state (where individual electrons break free from the pairing). The presence of
this gap ensures stability:
• Robustness Against Perturbations: The energy gap protects the
superconducting state from thermal excitations and low-energy disturbances.
This means that even when subjected to minor vibrations or fluctuations in
temperature, the material remains in its superconducting phase.
• Quantum Coherence: The formation of Cooper pairs and the resulting energy
gap give rise to a coherent state where the phase of the superconducting
wavefunction is uniform across the material. This coherence is crucial for
applications like superconducting quantum interference devices (SQUIDs) used
in sensitive magnetometers.
, Technological Implications and Modern Applications
Superconductivity is not solely a subject of academic interest; its practical applications
have transformed numerous fields and continue to drive innovation in modern
technology.
Energy Transmission and Power Systems
One of the most promising applications of superconductivity is in the arena of energy
transmission. Conventional electrical transmission systems suffer from resistive losses,
leading to significant energy waste over long distances. Superconductors, with their
zero resistance, promise near-lossless power transmission. This advantage is pivotal
for:
• Cryogenic Power Cables: Superconducting cables, cooled by liquid nitrogen or
other cryogens, offer high current densities and reduced loss, enabling more
efficient power grids.
• Energy Storage Systems: Superconducting magnetic energy storage (SMES)
systems can store large amounts of energy with rapid discharge capabilities,
making them ideal for stabilizing grids and managing peak loads.
Medical Imaging and Diagnostics
Superconductors play a central role in medical technology, particularly in Magnetic
Resonance Imaging (MRI) machines. The superconducting magnets used in these
devices produce intense, stable magnetic fields that are essential for generating high-
resolution images. The benefits include:
• Enhanced Image Quality: The purity and strength of the magnetic fields in
superconducting magnets result in clearer images, aiding in the early detection
and accurate diagnosis of various medical conditions.
• Reduced Energy Consumption: The efficiency of superconducting systems
helps lower the operational and energy costs associated with MRI machines,
making them more accessible over time.
Transportation and Magnetic Levitation
The phenomenon of magnetic levitation (maglev) has captivated engineers and urban
planners alike, promising a future of frictionless, efficient transportation:
• High-Speed Trains: Superconducting maglev trains, which utilize the Meissner
effect for levitation and propulsion, can achieve significantly higher speeds than
conventional trains. The reduction in friction not only enhances speed but also
reduces maintenance costs and energy consumption.
• Urban Mobility: Beyond long-distance travel, superconducting principles are
being explored for applications in urban transit systems, where reliability and
efficiency are paramount.
